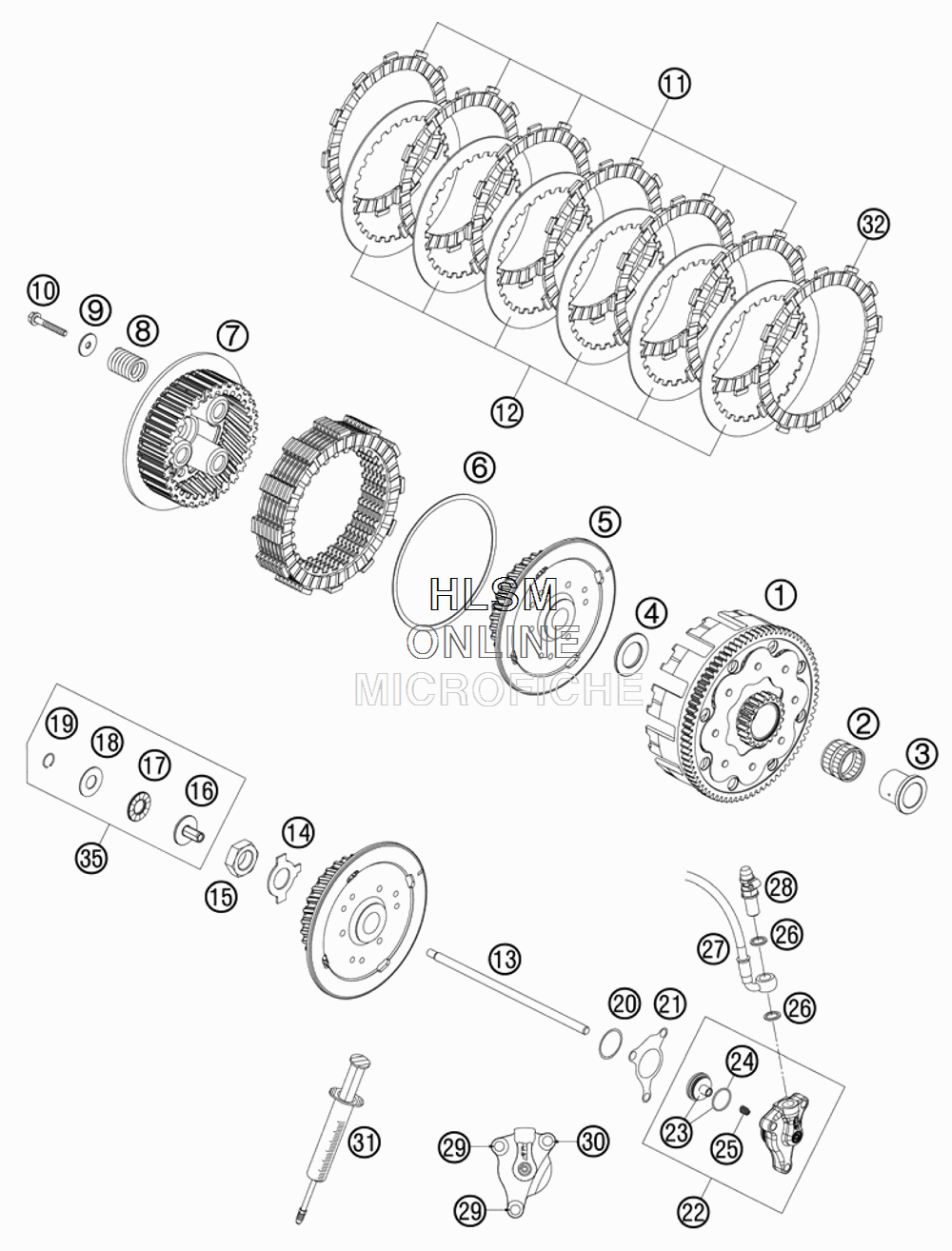

CLUTCH для Ktm 450 EXC-R - 2008 года выпуска
-
№АртикулНазвание
-
178032001000 OUTER CLUTCH CPL.OUTER CLUTCH CPL.
-
256532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
378032015000 INNER RINGINNER RING
-
478032020000 STOP DISCSTOP DISC
-
578032002000 INNER CLUTCH HUBINNER CLUTCH HUB
-
678032009000 JUDDER SPRINGJUDDER SPRING
-
778032003000 PRESSURE PLATEPRESSURE PLATE
-
878032005000 CLUTCH SPRINGCLUTCH SPRING
-
958432006000 WASHER 6,2 X 20 X 2WASHER 6,2 X 20 X 2
-
100015060303 HH COLLAR SCREW M 6X30HH COLLAR SCREW M 6X30
-
1178032011000 LINING DISCLINING DISC
-
1278032010000 STEEL DISCSTEEL DISC
-
1378032054000 PUSH RODPUSH ROD
-
1477332018000 RETAINING PLATERETAINING PLATE
-
150936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
1677332057100 PRESSURE PIECEPRESSURE PIECE
-
1754637097200 AXIAL NEEDLE BEARING AXK 1226AXIAL NEEDLE BEARING AXK 1226
-
1854637098200 AXIAL WASHER AS1226 12X26X1AXIAL WASHER AS1226 12X26X1
-
190993012000 CIRCLIP DIN7993-RW12CIRCLIP DIN7993-RW12
-
200770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
2159032065000 GASKET FOR SLAVE CYLINDERGASKET FOR SLAVE CYLINDER
-
2254832061044 OUTPUT CYLINDER CPL.OUTPUT CYLINDER CPL.
-
2354832066000 PISTON CPL.PISTON CPL.
-
2454832067000 O-RINGO-RING
-
2554832069000 PRESSURE SPRINGPRESSURE SPRING
-
260603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
2754832063000 CLUTCH PIPECLUTCH PIPE
-
2854813020000 BLEEDER HOLLOW SCREW M10X1BLEEDER HOLLOW SCREW M10X1
-
290015060203 HH COLLAR SCREW M 6X20HH COLLAR SCREW M 6X20
-
300015060303 HH COLLAR SCREW M 6X30HH COLLAR SCREW M 6X30
-
3150329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
3278032111000 LINING DISC TURNED OFFLINING DISC TURNED OFF
-
3577332057144 PRESSURE PIECE CPL.PRESSURE PIECE CPL.
