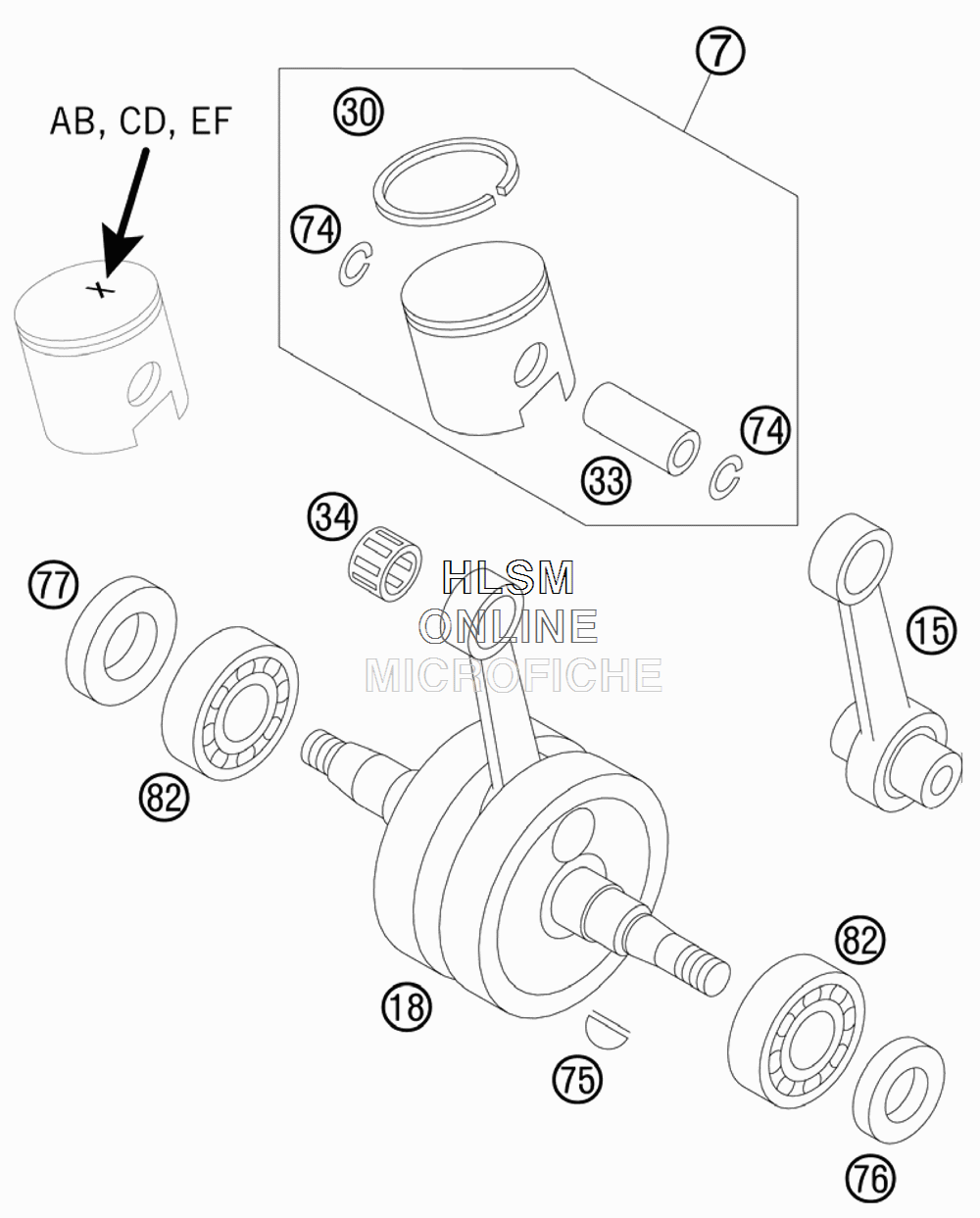

CRANKSHAFT PISTON для Ktm 50 SX Junior LC - 2008 года выпуска
-
№АртикулНазвание
-
745130007000 A PISTON CPL.39,5 ''AB'' 50 LCPISTON CPL.39,5 ''AB'' 50 LC
-
745130007000 C PISTON CPL.39,5 ''CD'' 50 LCPISTON CPL.39,5 ''CD'' 50 LC
-
745130007000 E PISTON CPL.39,5 ''EF'' 50 LCPISTON CPL.39,5 ''EF'' 50 LC
-
1545130015000 CON.ROD REPAIRS. 50CCM LCCON.ROD REPAIRS. 50CCM LC
-
1845130018100 CRANKSHAFT 50 LCCRANKSHAFT 50 LC
-
3045130030000 PISTON RING 50CCM LCPISTON RING 50CCM LC
-
3345130033000 PISTON PIN 50CCM LCPISTON PIN 50CCM LC
-
3445130034000 NEEDLE BEAR.PISTONPIN 12X15X15NEEDLE BEAR.PISTONPIN 12X15X15
-
7445130074000 CIRCLIPCIRCLIP
-
7545130075000 WOODRUFF KEY 2,5X3,7WOODRUFF KEY 2,5X3,7
-
7645130076000 OIL SEAL RING 15X24X7OIL SEAL RING 15X24X7
-
7745130077000 OIL SEAL RING 17X35X7OIL SEAL RING 17X35X7
-
8245130082100 BALL BEARING 17X40X12BALL BEARING 17X40X12
