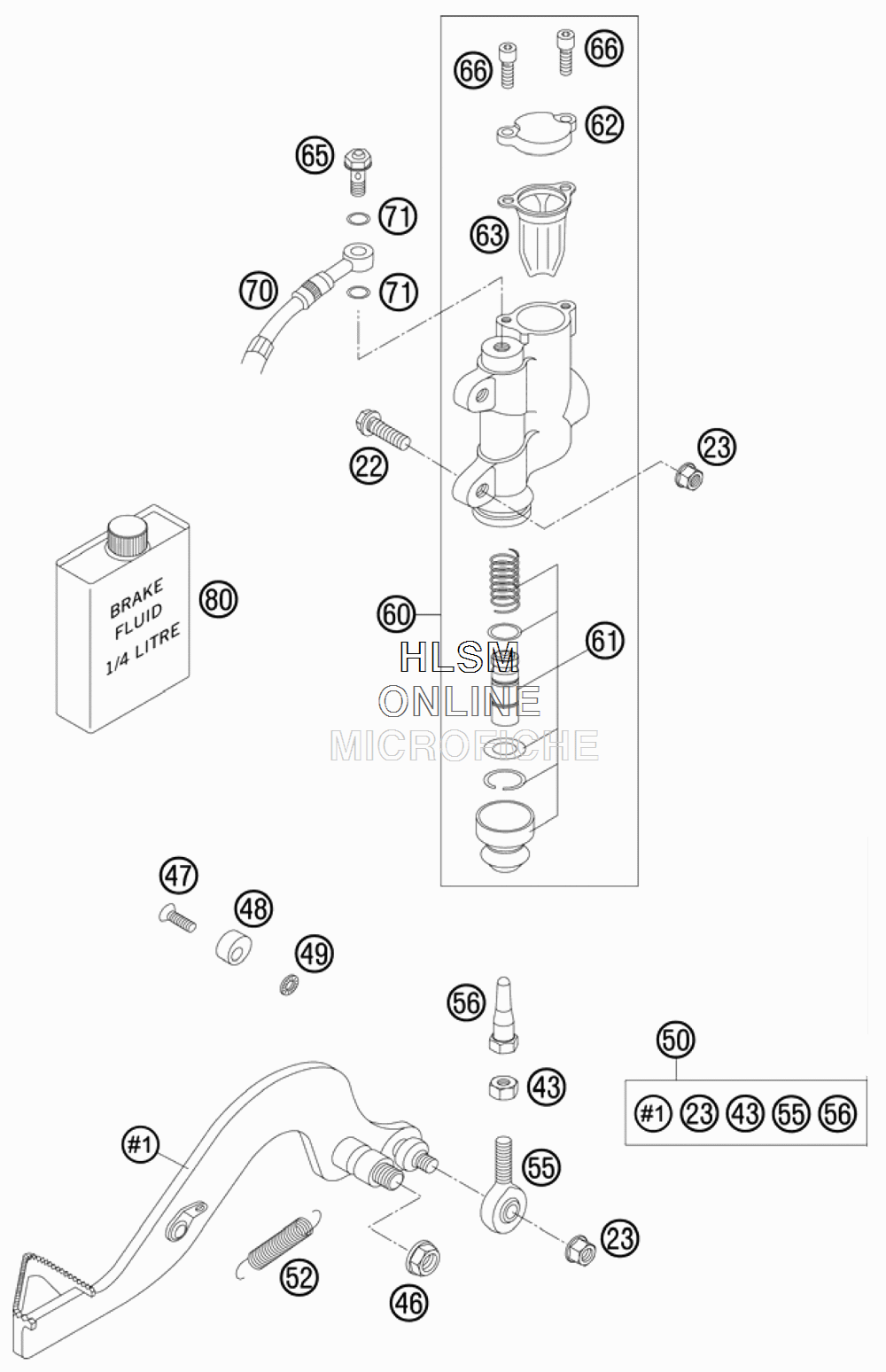

REAR BRAKE CONTROL для Ktm 50 SX - 2008 года выпуска
-
№АртикулНазвание
-
220025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
2356509064100 SELF LOCKING NUT M6SELF LOCKING NUT M6
-
430934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
4654310086200 SELF LOCKING NUT M8SELF LOCKING NUT M8
-
470991060203 FLAT H.SCREW DIN7991-M6X20 8.8FLAT H.SCREW DIN7991-M6X20 8.8
-
4858303063000 BRAKE LEVER STOPBRAKE LEVER STOP
-
490797060003 TOOTH LOCK WASH. DIN6797-A 6,4TOOTH LOCK WASH. DIN6797-A 6,4
-
5045113050144 REAR BRAKELEVER CPLEFT HANDREAR BRAKELEVER CPLEFT HAND
-
5254603062000 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
5554813055000 SWIVEL HEAD KA6SWIVEL HEAD KA6
-
5647013056000 PRESSURE ROD 85 SXPRESSURE ROD 85 SX
-
6046113060000 REAR BRAKE CYLEFT HAND 50+65REAR BRAKE CYLEFT HAND 50+65
-
6147013061000 REP. SET PISTON REARREP. SET PISTON REAR
-
6247013062000 CYLINDER COVER REAR 85 SXCYLINDER COVER REAR 85 SX
-
6347013063000 GASKET CYLINDER COVER REARGASKET CYLINDER COVER REAR
-
6546113325000 HOLLOW SCREW M6HOLLOW SCREW M6
-
660912040103 AH.SCREW DIN0912-M 4X10AH.SCREW DIN0912-M 4X10
-
7045113170000 BRAKE HOSE REAR 50 LCBRAKE HOSE REAR 50 LC
-
710770060019 O-RING 6,00X1,00O-RING 6,00X1,00
-
80306054 BRAKE FLUID DOT 4.0BRAKE FLUID DOT 4.0
