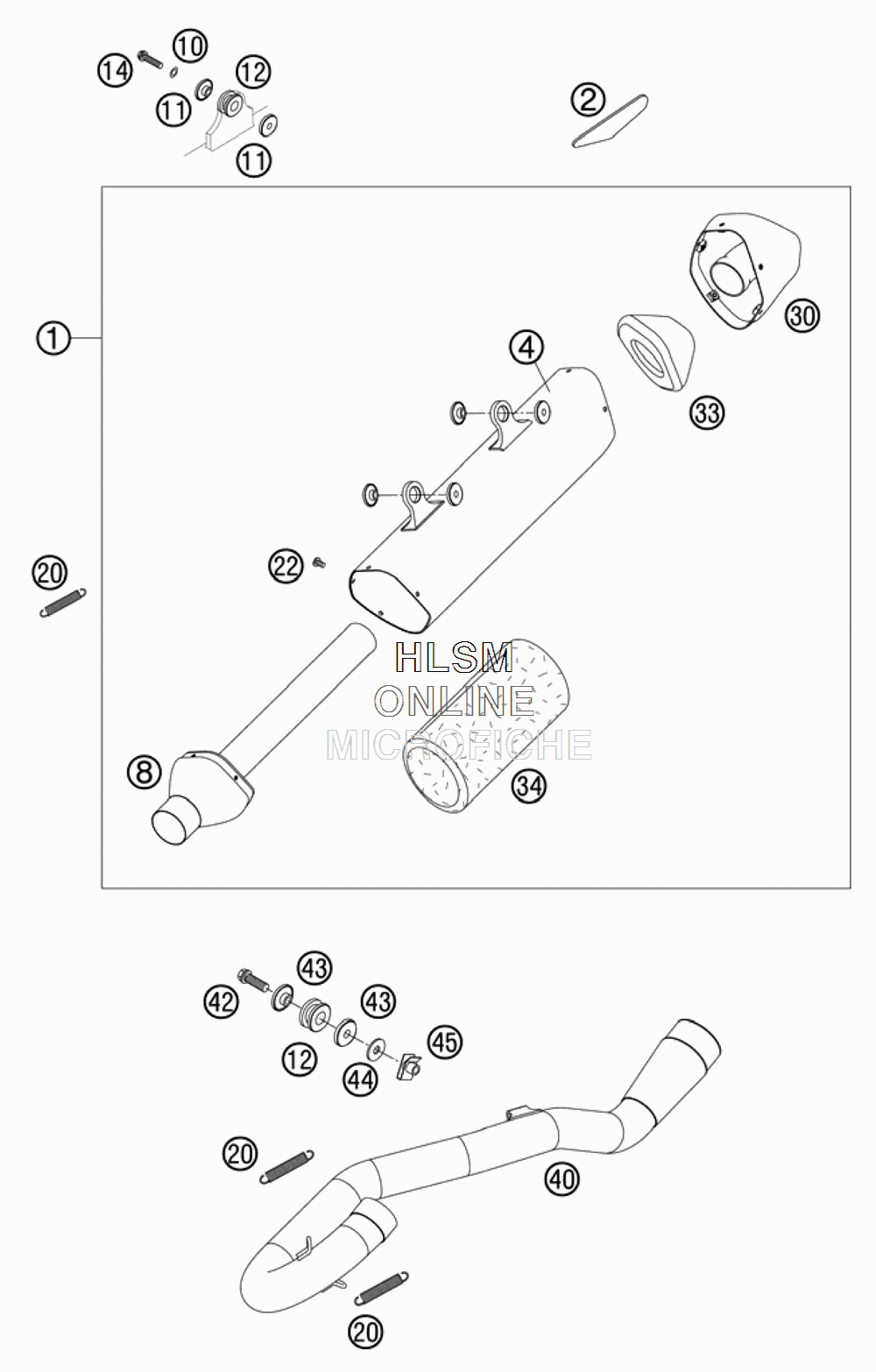

EXHAUST SYSTEM для Ktm 505 XC-F - 2008 года выпуска
-
№АртикулНазвание
-
177305079000 EXHAUST SILENCER 450 SX-FEXHAUST SILENCER 450 SX-F
-
277308013050 THERMAL PROTECTION FOILTHERMAL PROTECTION FOIL
-
477305079050 SILENCER HOUSING 450 SX-FSILENCER HOUSING 450 SX-F
-
877305079009 CONNECTING CAP CPL.CONNECTING CAP CPL.
-
100137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1177305069000 BUSHING 7.5X12X28X7.6BUSHING 7.5X12X28X7.6
-
1254605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
140025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
2050305016000 TEN.SPRING EY.MOVEABLETEN.SPRING EY.MOVEABLE
-
2258605083010 SCREW TORX M5X10SCREW TORX M5X10
-
3077305079006 ENDCAPENDCAP
-
3358305083080 STUFFING YARN HGSSTUFFING YARN HGS
-
3459005078550 STUFF.YARN 550GRAMM SXSTUFF.YARN 550GRAMM SX
-
4077305007100 EXHAUST MANIFOLD 450 SX-FEXHAUST MANIFOLD 450 SX-F
-
420025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
4359405069000 BUSHING FOR EXHAUST SUPPORTBUSHING FOR EXHAUST SUPPORT
-
440021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
4554603048000 RANGE CHANGE METAL NUT M8RANGE CHANGE METAL NUT M8
