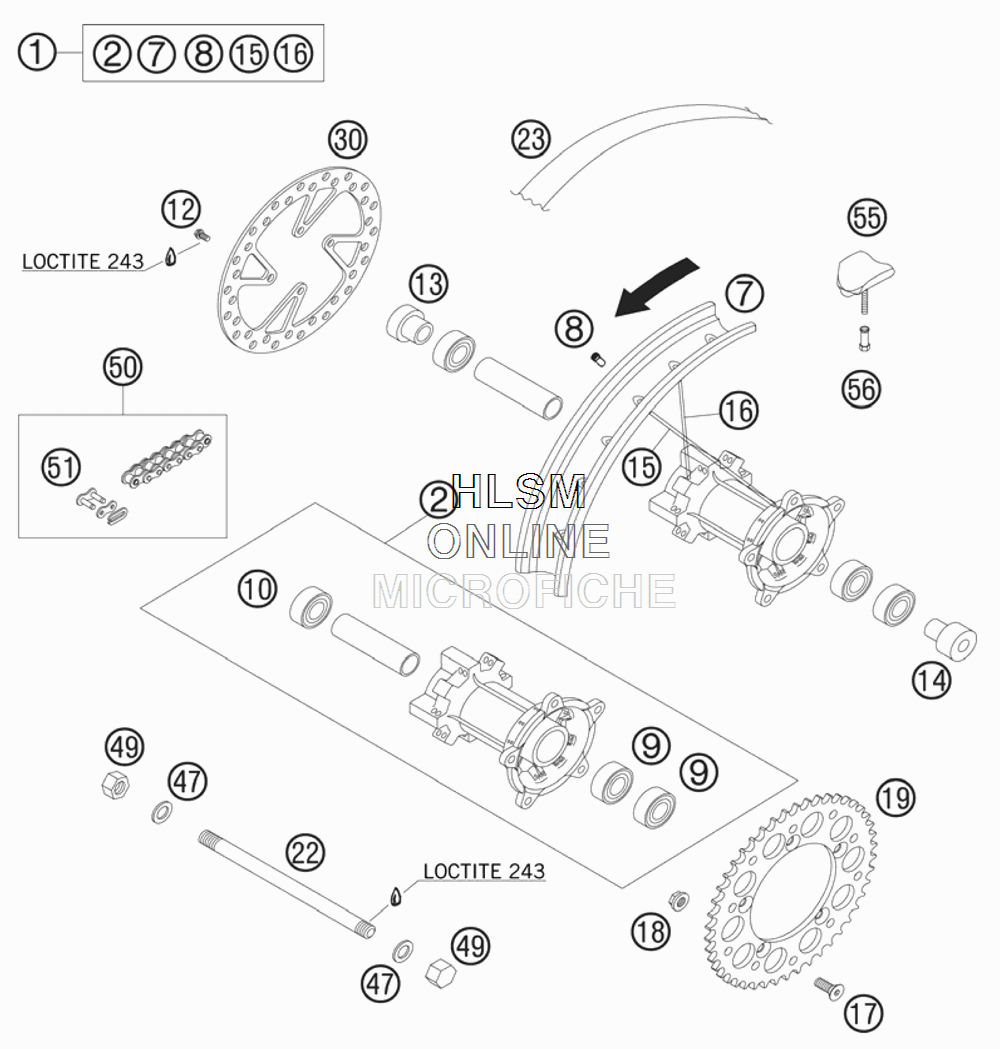

REAR WHEEL для Ktm 65 XC - 2008 года выпуска
-
№АртикулНазвание
-
146110001344 REAR WHEEL SP 1,6X12'' ALUREAR WHEEL SP 1,6X12'' ALU
-
246010010144 REAR WHEEL HUB CPL.60/65REAR WHEEL HUB CPL.60/65
-
746110070000 RIM REAR 1,6X12'' ALURIM REAR 1,6X12'' ALU
-
846009072100 SPOKE NIPPEL M3,5SPOKE NIPPEL M3,5
-
90625060037 GR.BALL BEAR. 6003-2RSH/C3HMTFGR.BALL BEAR. 6003-2RSH/C3HMTF
-
100625062032 GR.BALL BEAR. 6203-2RSHC3HMTFGR.BALL BEAR. 6203-2RSHC3HMTF
-
1259009062013 SPECIAL SCREW M6X13SPECIAL SCREW M6X13
-
1346010013000 SPACER BUSH R/S SX 60/65SPACER BUSH R/S SX 60/65
-
1446010014000 SPACER BUSH L/S SX 60/65SPACER BUSH L/S SX 60/65
-
1546010071100 SPOKE 3X140X4MM-161°SPOKE 3X140X4MM-161°
-
1646010171100 SPOKE 3X132X5MM-150°SPOKE 3X132X5MM-150°
-
170991080253 FLAT HEAD SCREW DIN7991-M 8X25FLAT HEAD SCREW DIN7991-M 8X25
-
1854310086200 SELF LOCKING NUT M8SELF LOCKING NUT M8
-
1946010051046 REAR SPROCKET 46-TREAR SPROCKET 46-T
-
1946010051048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
1946010051050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
2246010085100 AXLE REAR 213MM M12X1AXLE REAR 213MM M12X1
-
2346010073000 RIM BAND 12''RIM BAND 12''
-
3046110060200 BRAKE DISC 65SXBRAKE DISC 65SX
-
470125120003 FLAT WASHER DIN0125-A13FLAT WASHER DIN0125-A13
-
490917120103 NUT DIN917-M12X1NUT DIN917-M12X1
-
5046110265112 O-RING CHAIN 1/2X1/4'' 112 R.O-RING CHAIN 1/2X1/4'' 112 R.
-
5146110166100 CONNECTING LINK 1/2X1/4''O-RINGCONNECTING LINK 1/2X1/4''O-RING
-
5551009100100 RIM LOCK VM1 (1,60'')RIM LOCK VM1 (1,60'')
-
5650310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
