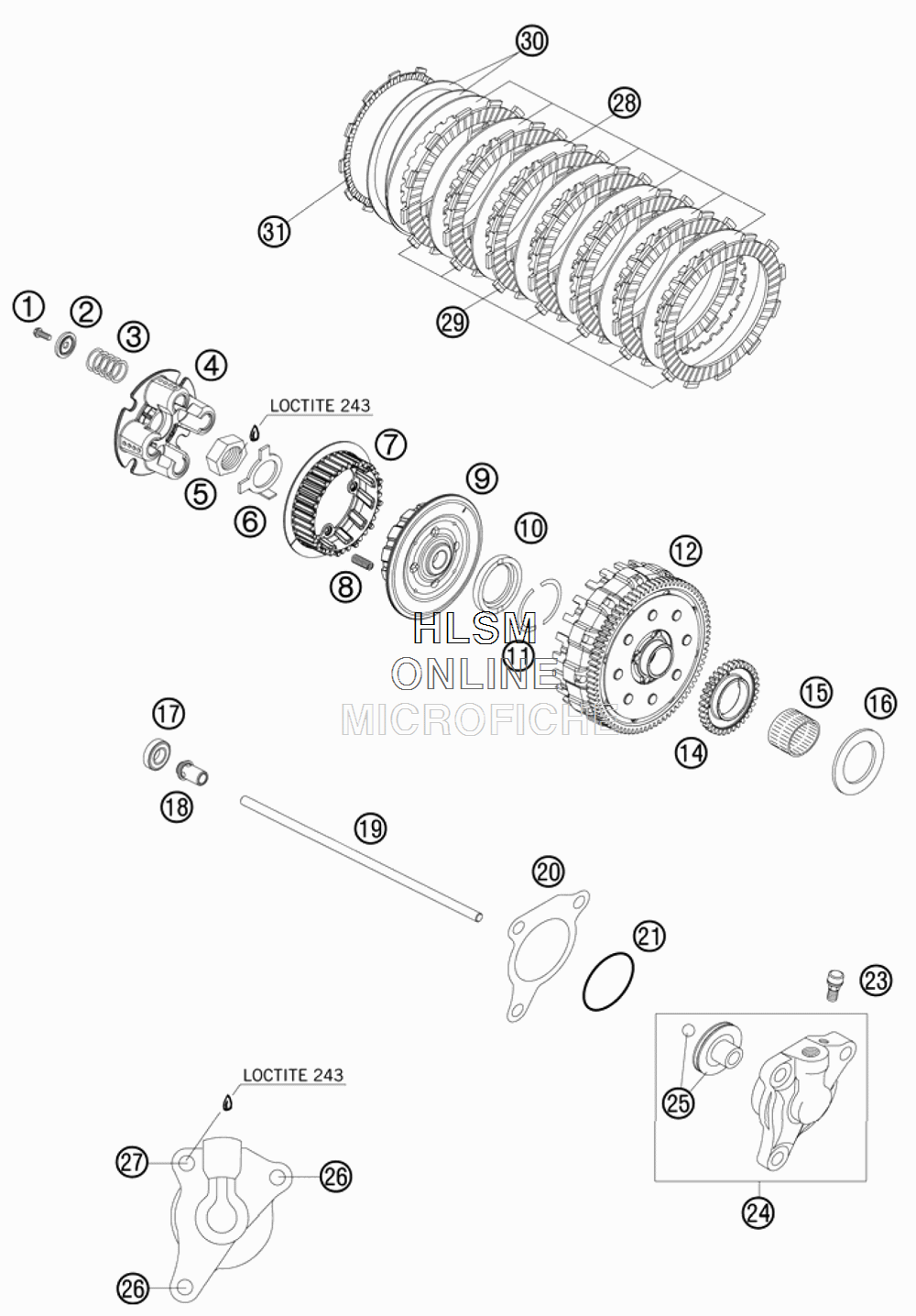

CLUTCH для Ktm 690 DUKE WHITE - 2008 года выпуска
-
№АртикулНазвание
-
10015060203 HH COLLAR SCREW M 6X20HH COLLAR SCREW M 6X20
-
275032006000 SPRING RINGSPRING RING
-
358532080000 CLUTCHSPRING 3,0X33,5CLUTCHSPRING 3,0X33,5
-
475032003000 PRESSURE CAPPRESSURE CAP
-
560036073050 HEXAGON NUT M20X1,5 7MMHEXAGON NUT M20X1,5 7MM
-
675032018000 LOCK WASHERLOCK WASHER
-
775032002002 INNER CLUTCH HUB MOVABLEINNER CLUTCH HUB MOVABLE
-
875032033000 CLUTCH RELEASE SPRINGCLUTCH RELEASE SPRING
-
975032002001 INNER CLUTCH HUB FIXEDINNER CLUTCH HUB FIXED
-
1075032009000 STEPPED WASHERSTEPPED WASHER
-
1175032007000 HALF-WASHERHALF-WASHER
-
1275032001044 OUTER CLUTCH HUB CPL.OUTER CLUTCH HUB CPL.
-
1475032050001 OIL PUMP DRIVE WHEELOIL PUMP DRIVE WHEEL
-
1556532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
1675032017000 WASHER 26X40X2WASHER 26X40X2
-
170625060016 GROOV.BALL BEAR. 6001.2RSR C3GROOV.BALL BEAR. 6001.2RSR C3
-
1875032055000 PRESSURE BOLTPRESSURE BOLT
-
1975032054100 PUSH RODPUSH ROD
-
2059032065000 GASKET FOR SLAVE CYLINDERGASKET FOR SLAVE CYLINDER
-
210770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
2354732064000 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
2459032061044 OUTPUT CYLINDER CPL. 27MMOUTPUT CYLINDER CPL. 27MM
-
2559032066000 PISTON + O-RING + BALL 27MMPISTON + O-RING + BALL 27MM
-
260015060353 HH COLLAR SCREW M 6X35HH COLLAR SCREW M 6X35
-
270015060203 HH COLLAR SCREW M 6X20HH COLLAR SCREW M 6X20
-
2875032112000 STEEL DISK 1,5 MMSTEEL DISK 1,5 MM
-
2958332011300 LINING DISK 2,7MM FCCLINING DISK 2,7MM FCC
-
3058632016000 RONDELLA ANTIVIBRAZIONE SETRONDELLA ANTIVIBRAZIONE SET
-
3175032111100 LINING DISC CUT OUTLINING DISC CUT OUT
