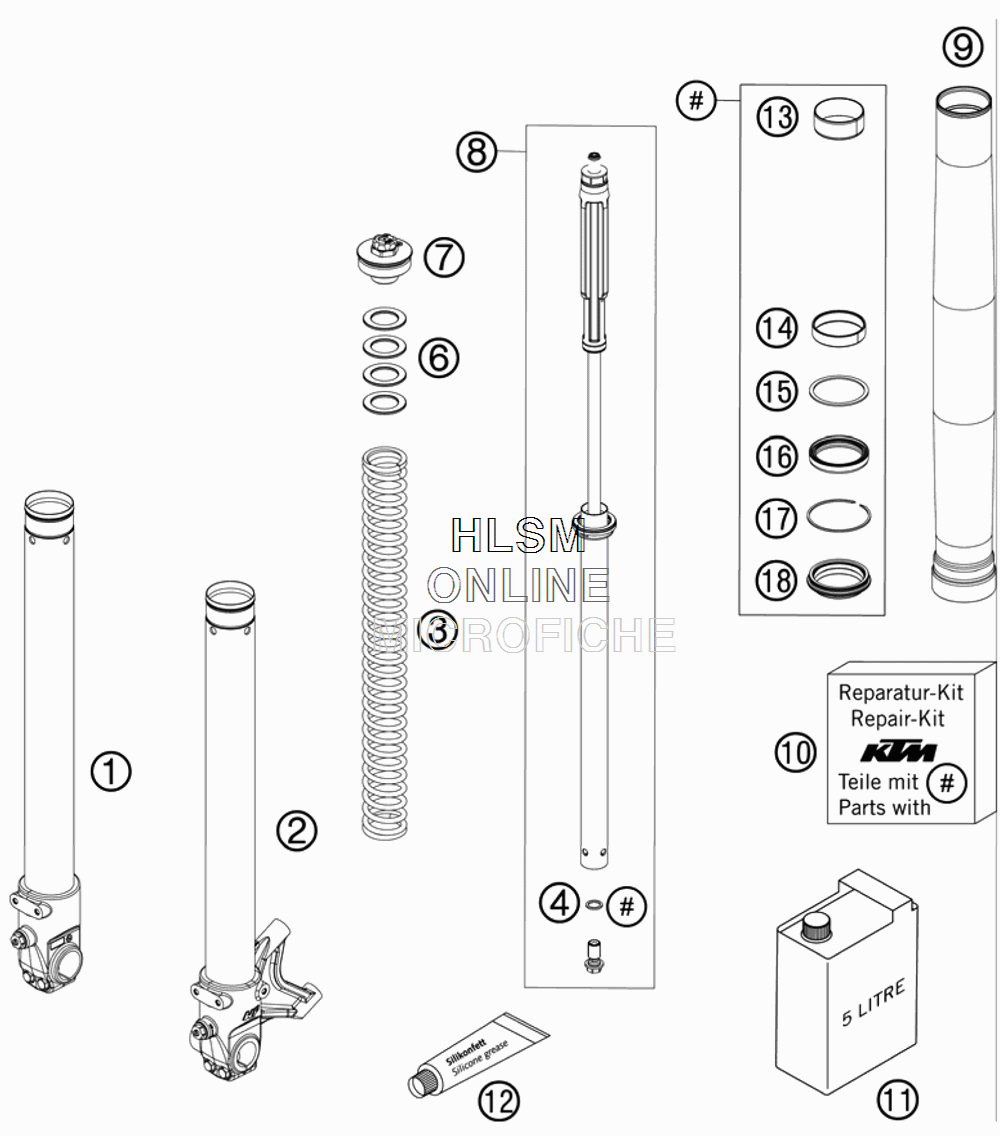

FRONT FORK DISSASEMBLED для Ktm 690 SUPER MOTO R - 2008 года выпуска

№

Артикул

Название
1

48600536S1 AXLE CLAMP R/S CPL.

AXLE CLAMP R/S CPL.

170 ₽
2

48600535S1 AXLE CLAMP L/S CPL.

AXLE CLAMP L/S CPL.

170 ₽
3

91410057S SPRING 5,2N/MM L=415 D=5,1

SPRING 5,2N/MM L=415 D=5,1

50 600 ₽
3

91410065S SPRING 4,8N/MM L=415 D=5,25

SPRING 4,8N/MM L=415 D=5,25

39 430 ₽
3

91410066S SPRING 5,6N/MM L=415 D=5,5

SPRING 5,6N/MM L=415 D=5,5

39 430 ₽
4

46810146 COPPER WASHER 12X16X1,5

COPPER WASHER 12X16X1,5

370 ₽
6

48600036 SPACER 42X26,5X2,5

SPACER 42X26,5X2,5

440 ₽
6

48600037 SPACER 42X26,5X5

SPACER 42X26,5X5

800 ₽
6

48600038 SPACER 42X26,5X10

SPACER 42X26,5X10

560 ₽
6

48600053 SPACER 42X26,5X1,5

SPACER 42X26,5X1,5

800 ₽
7

48600558S SCREW CAP M51X1,5 CPL.

SCREW CAP M51X1,5 CPL.

19 450 ₽
8

48600583S1 CARTRIDGE CPL.

CARTRIDGE CPL.

0 ₽
9

48600484 OUTER TUBE L=500MM D=54/60

OUTER TUBE L=500MM D=54/60

163 810 ₽
10

R14011 REPAIR-KIT GASKET

REPAIR-KIT GASKET

35 010 ₽
11

48600401S1 FORK OIL SAE5 5L

FORK OIL SAE5 5L

47 770 ₽
12

T511 SILICONE GREASE F. DUST STRI

SILICONE GREASE F. DUST STRI

5 410 ₽
13

48600428 DU-BUSH D47XD49X20DDL02

DU-BUSH D47XD49X20DDL02

3 240 ₽
14

48600429 DU-BUSH D48XD52X12DDL02

DU-BUSH D48XD52X12DDL02

3 240 ₽
15

48600013 SUPPORT RING 50 X 57,6 X 1,5

SUPPORT RING 50 X 57,6 X 1,5

610 ₽
16

48600347 OIL SEAL RING 48X57,8X9,5

OIL SEAL RING 48X57,8X9,5

5 140 ₽
17

48600070 LOCK WASHER SB58

LOCK WASHER SB58

350 ₽
18

48600400 DUST CAP D=48 58,4X11,8

DUST CAP D=48 58,4X11,8

4 590 ₽
