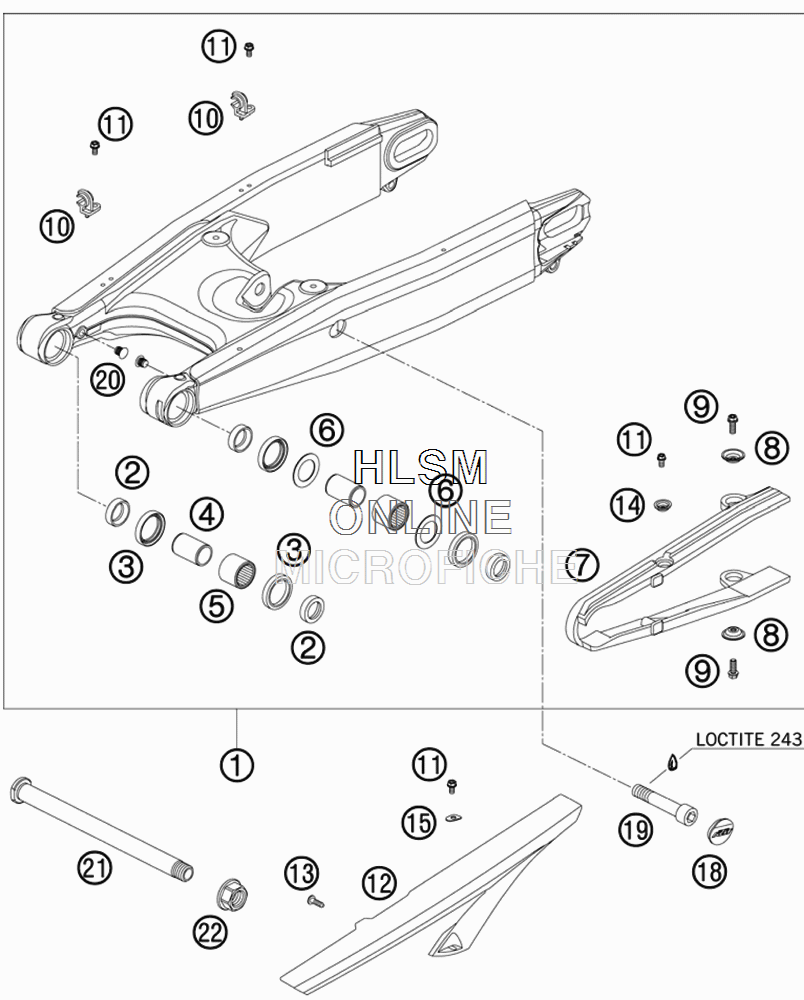

SWINGARM для Ktm 950 SMR AUS/UK - 2008 года выпуска

№

Артикул

Название
1

6100403004433 SWING ARM CPL. SM-R SD-R

SWING ARM CPL. SM-R SD-R

340 ₽
2

60004034000 BUCKET F. SHAFT SEAL RING

BUCKET F. SHAFT SEAL RING

1 840 ₽
3

0760304073 SHAFT SEAL RING 30X40X7

SHAFT SEAL RING 30X40X7

760 ₽
4

60004032000 INNER RING JR20X25X38,5

INNER RING JR20X25X38,5

4 440 ₽
5

60004031000 NEEDLE BUSH HK2526B

NEEDLE BUSH HK2526B

2 680 ₽
6

60004033000 STOP DISK

STOP DISK

380 ₽
7

60004066100 CHAIN SLID. GUARD SWINGARM

CHAIN SLID. GUARD SWINGARM

6 340 ₽
8

72210079000 BUCKET

BUCKET

680 ₽
9*

0025060166 HH COLLAR SCREW M6X16 TX30

HH COLLAR SCREW M6X16 TX30

500 ₽
10

5461107610030 RET. CLAMP F. BRAKE HOSE BLACK

RET. CLAMP F. BRAKE HOSE BLACK

270 ₽
11

0009050103 SPECIAL SCREW M 5,0X10

SPECIAL SCREW M 5,0X10

290 ₽
12

61004060000 CHAINGUARD

CHAINGUARD

2 300 ₽
13

0081500181 SCREW FOR PLASTIC D=5X18

SCREW FOR PLASTIC D=5X18

290 ₽
14

46104066050 BUSH FOR CHAIN SLIDER GUARD

BUSH FOR CHAIN SLIDER GUARD

2 220 ₽
15

61004060050 WASHER CHAINGUARD

WASHER CHAINGUARD

1 160 ₽
18

60004041000 PLUG SWINGARM

PLUG SWINGARM

1 640 ₽
19

60004017000 SCREW M14X1,5 L=73MM

SCREW M14X1,5 L=73MM

1 190 ₽
20

55009086000 PLUG SFL13

PLUG SFL13

410 ₽
21

60004037144 SWINGARM BOLT CPL.

SWINGARM BOLT CPL.

16 330 ₽
22

60004038000 COLLAR NUT M19X1,5 WS=27MM

COLLAR NUT M19X1,5 WS=27MM

4 410 ₽
