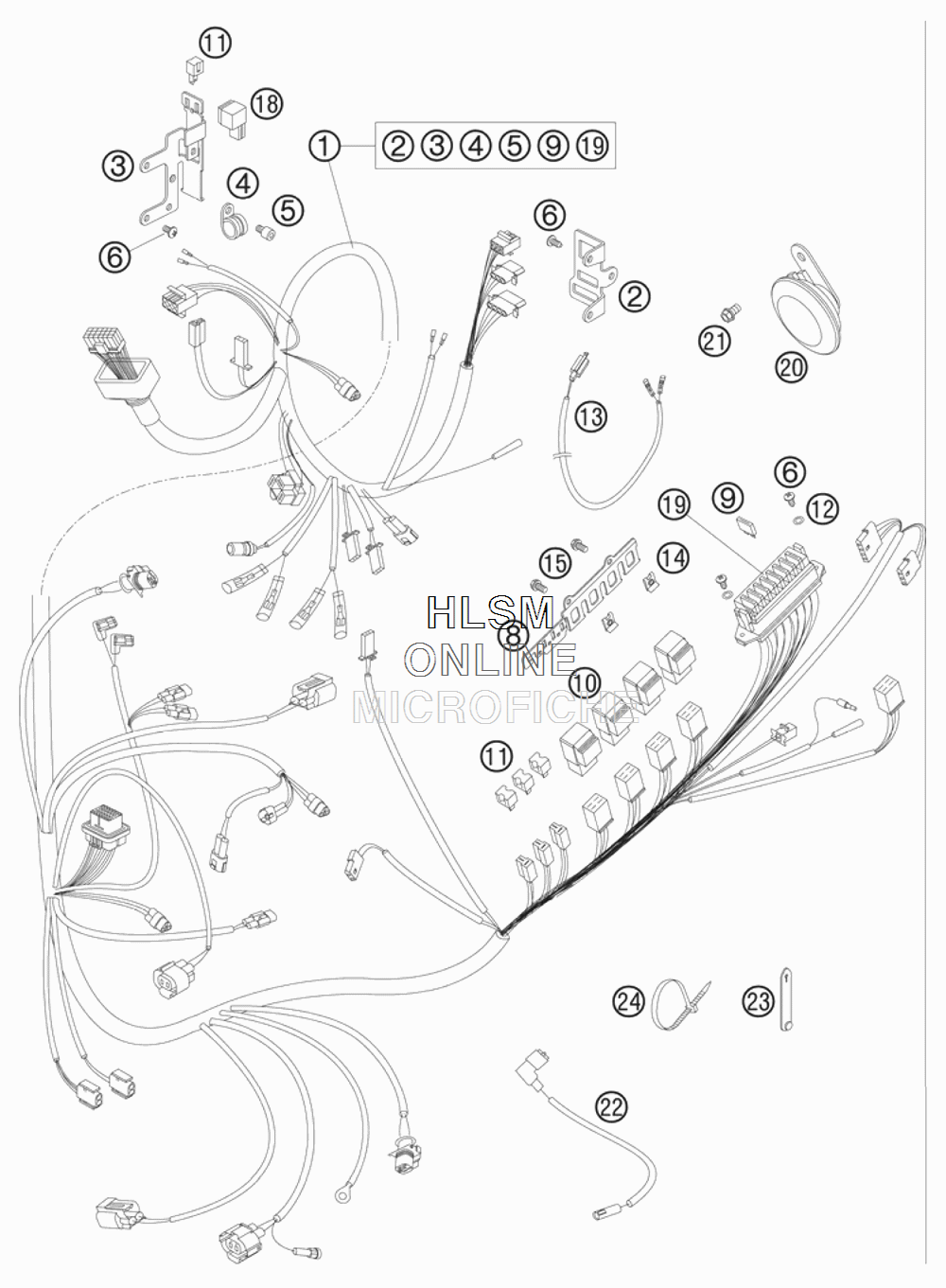

WIRING HARNESS для Ktm 950 SUPER ENDURO - 2008 года выпуска

№

Артикул

Название
1

63011075200 MAIN CABLE HARNESS

MAIN CABLE HARNESS

159 600 ₽
2

63011083000 BRACKET FOR PLUGS L/S

BRACKET FOR PLUGS L/S

6 110 ₽
3

58611183000 SUPPORT BRACKET R/S

SUPPORT BRACKET R/S

0 ₽
4

49007439000 CLAMP RSGU 15/12

CLAMP RSGU 15/12

1 320 ₽
5

0912050103 AH SCREW DIN0912-M 5X10

AH SCREW DIN0912-M 5X10

180 ₽
6

0081050121 SCREW FOR PLASTIC K50X12 T20

SCREW FOR PLASTIC K50X12 T20

290 ₽
8

62511057050 BRACKET RELAY

BRACKET RELAY

3 660 ₽
9

58011109110 FUSE 10 A

FUSE 10 A

290 ₽
9

58011109115 FUSE 15 A

FUSE 15 A

240 ₽
10

58411057000 STARTER RELAY

STARTER RELAY

5 380 ₽
11

58411096100 DIODE S3H-15

DIODE S3H-15

2 630 ₽
12

0021050003 WASHER DIN9021-A 5,3

WASHER DIN9021-A 5,3

120 ₽
13

63011050050 CABLE F. BRAKELIGHT SWITCH FR.

CABLE F. BRAKELIGHT SWITCH FR.

1 290 ₽
14

54603048200 RANGE CHANGE METAL NUT M5

RANGE CHANGE METAL NUT M5

1 030 ₽
15

0025050126 HH COLLAR SCREW M5X12 TX30

HH COLLAR SCREW M5X12 TX30

500 ₽
18

44611207200 FLASHER UNIT

FLASHER UNIT

13 470 ₽
19

58511075510 FUSE-BOX COVER

FUSE-BOX COVER

2 890 ₽
20

62511060000 DC HORN 05

DC HORN 05

7 130 ₽
21

0024060106 HH COLLAR SCREW M6X10 TX30

HH COLLAR SCREW M6X10 TX30

500 ₽
22

60011092000 OIL-PRESSURE SWITCH CABLE

OIL-PRESSURE SWITCH CABLE

590 ₽
23

60011093045 RUBBER CABLE TIE 45MM

RUBBER CABLE TIE 45MM

680 ₽
23

60011093075 RUBBER CABLE TIE 75MM

RUBBER CABLE TIE 75MM

1 140 ₽
24

44011076100 CABLE TIE 100/2,5MM BLACK

CABLE TIE 100/2,5MM BLACK

100 ₽
24

44011076200 CABLE TIE 200/3,6MM BLACK

CABLE TIE 200/3,6MM BLACK

120 ₽
