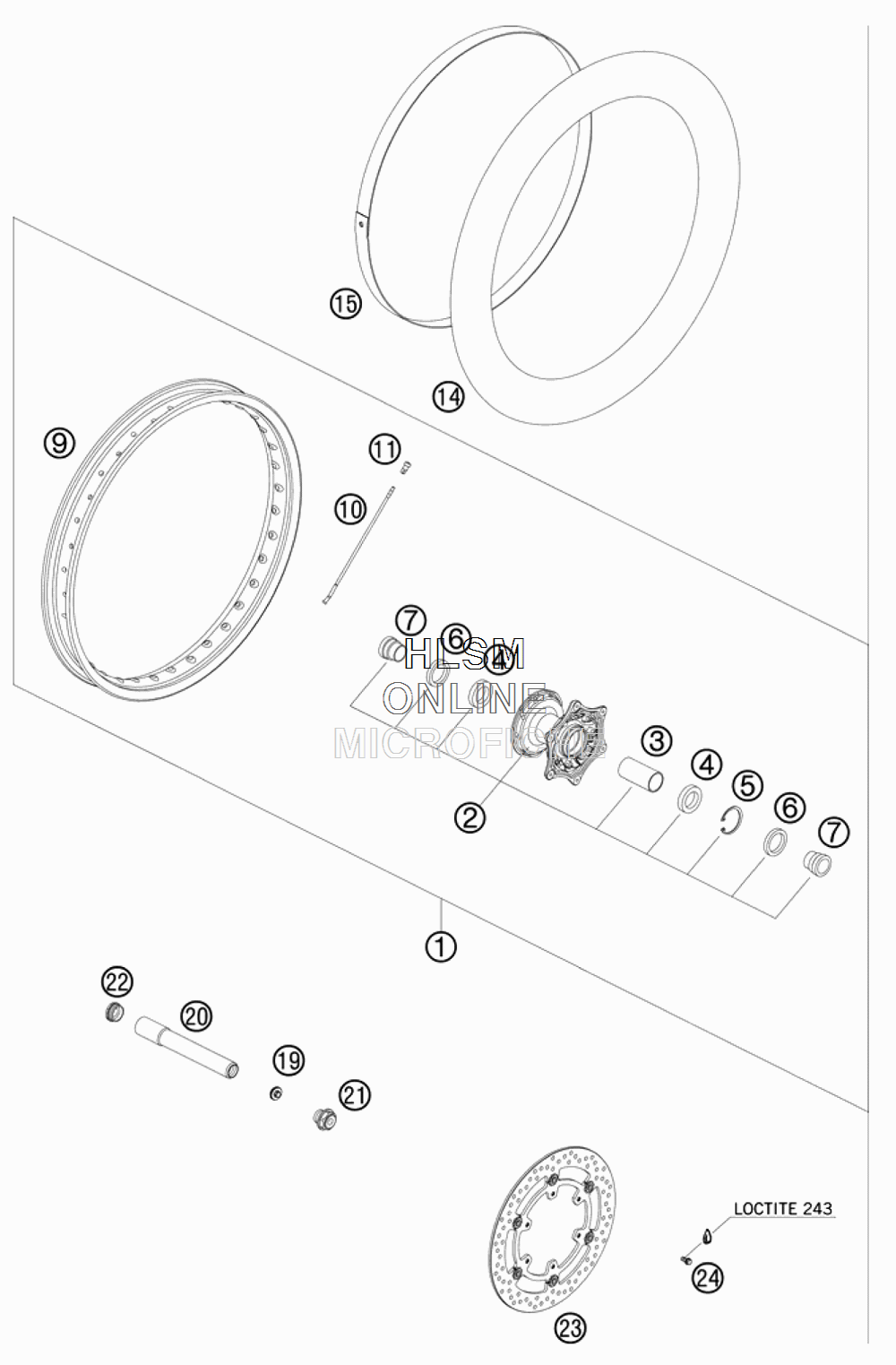

FRONT WHEEL для Ktm 950 SUPERMOTO R - 2008 года выпуска
-
№АртикулНазвание
-
16300900104430 FRONT WHEEL CPL. 1,85X21" BLACKFRONT WHEEL CPL. 1,85X21" BLACK
-
263009010044 FRONT HUB CPL.FRONT HUB CPL.
-
360009014000 BEAR. SPACERTUBE FRONTBEAR. SPACERTUBE FRONT
-
40625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
763009012000 SPACER BUSH. FRONT WHEELSPACER BUSH. FRONT WHEEL
-
96300907000030 FRONT RIM 1,85X21"DIRT STARFRONT RIM 1,85X21"DIRT STAR
-
1060009071000 SPOKE M5X230,5 13,5 DEGSPOKE M5X230,5 13,5 DEG
-
1158309072000 SPOKE NIPPLE M5-TA (8X21MM)SPOKE NIPPLE M5-TA (8X21MM)
-
1450309075000 HOSE 21"HOSE 21"
-
1558409073100 RIM BAND FRONT 2MMRIM BAND FRONT 2MM
-
1954809081070 AUXILIARY SCREW FRONTAUXILIARY SCREW FRONT
-
2077309081000 WHEEL SPIN.FR. D=26 M24X1,5WHEEL SPIN.FR. D=26 M24X1,5
-
2154809082000 SPINDLE SCREW M24X1,5 WS=27SPINDLE SCREW M24X1,5 WS=27
-
2254809081050 PLUG BUSHING WS=27PLUG BUSHING WS=27
-
2360109060000 BRAKE DISK FRONT 300MMBRAKE DISK FRONT 300MM
-
2459009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
