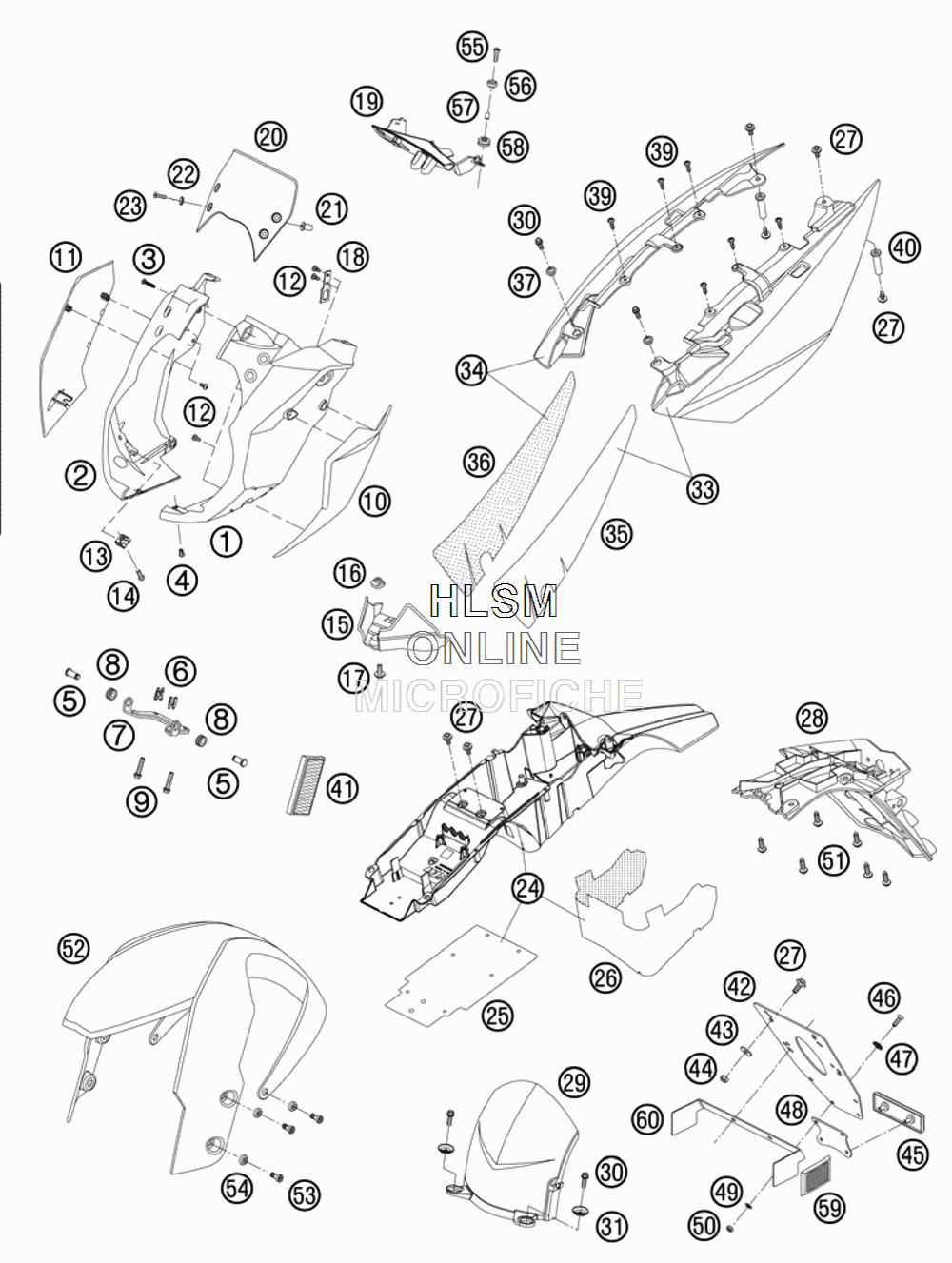

MASK FENDERS для Ktm 990 Super Duke Black - 2008 года выпуска
-
№АртикулНазвание
-
161108001000 HEAD LIGHT MASK LEFTHEAD LIGHT MASK LEFT
-
261108002000 HEAD LIGHT MASK RIGHTHEAD LIGHT MASK RIGHT
-
30016050253 SCREW FOR PLASTICSCREW FOR PLASTIC
-
461103088000 EXPANDING RIVET PA6 BLACKEXPANDING RIVET PA6 BLACK
-
560013057000 BOLT F. LINK FORK 8X20X16,5BOLT F. LINK FORK 8X20X16,5
-
660013058000 SECURING CLIP D=8MMSECURING CLIP D=8MM
-
758708002000 HINGE JOINT BOTTOMHINGE JOINT BOTTOM
-
831008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
9*0025060456 HH COLLAR SCREW M6X45 TX30HH COLLAR SCREW M6X45 TX30
-
106110800300046A MASK SPOILER L/S BLACK-MET.MASK SPOILER L/S BLACK-MET.
-
116110800400046A MASK SPOILER R/S BLACK-MET.MASK SPOILER R/S BLACK-MET.
-
120016050121 SCREW FOR PLASTIC 50X12SCREW FOR PLASTIC 50X12
-
1354603048300 RANGE CHANGE METAL NUT M6 INOXRANGE CHANGE METAL NUT M6 INOX
-
140738060121 OVAL HEAD SCREW ISK. ISO7380OVAL HEAD SCREW ISK. ISO7380
-
1561003094000 SPLASH PROTECT. FRAME HEADSPLASH PROTECT. FRAME HEAD
-
1650235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
17*0024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
1861111020050 BRACKET STARTERBRACKET STARTER
-
1961108005000 SPEEDOMETER BRACKETSPEEDOMETER BRACKET
-
2061108065000 WIND SHIELDWIND SHIELD
-
2160008008050 BLIND PLUG-IN NUT M5 WN 16ABLIND PLUG-IN NUT M5 WN 16A
-
2260008046000 SPECIAL WASHER D=12MMSPECIAL WASHER D=12MM
-
230991050204 FLAT HEAD SCREW DIN7991-M 5X20FLAT HEAD SCREW DIN7991-M 5X20
-
2461108019044 REAR BASE CPL.REAR BASE CPL.
-
2561008021200 THER. PROTECT. FOIL FRONTTHER. PROTECT. FOIL FRONT
-
2661008021300 THERM.PROTECT. FOIL REARTHERM.PROTECT. FOIL REAR
-
27*0024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
2861008015000 NUMB.PLATE CARRIERNUMB.PLATE CARRIER
-
2961008014000 SPLASH PROTECT.SPLASH PROTECT.
-
30*0025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
3172210079000 BUCKETBUCKET
-
336100804100046A REAR END TOP PART L/S BLACKREAR END TOP PART L/S BLACK
-
346100804200046A REAR END TOP PART R/S BLACKREAR END TOP PART R/S BLACK
-
3561008041150 THERMAL PROT. FOIL L/STHERMAL PROT. FOIL L/S
-
3661008042150 THERMAL PROT.FOIL R/STHERMAL PROT.FOIL R/S
-
3750308053000 BUSH FOR SPOILER 6X11X16X7,5BUSH FOR SPOILER 6X11X16X7,5
-
390081500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
4061008019050 SPECIAL NUT FOR REAR ENDSPECIAL NUT FOR REAR END
-
4158412080100 REFLECTOR YELLOW ONLY FOR AUS+USAREFLECTOR YELLOW ONLY FOR AUS+USA
-
4260012081200 LICENCE FITTINGLICENCE FITTING
-
430021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
440985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
4558412080000 REFLECTOR RED LC4 '98REFLECTOR RED LC4 '98
-
460966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
4740006006000 WASHER 6MMWASHER 6MM
-
4858412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
490125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
500985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
510017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
526110801000030 FRONT FENDER BLACKFRONT FENDER BLACK
-
530012060164 AH SCREW DIN6912 M6X16 SLAH SCREW DIN6912 M6X16 SL
-
5461108045000 SPECIAL WASHERSPECIAL WASHER
-
550984060252 AH SCREW DIN6912 M6X25AH SCREW DIN6912 M6X25
-
5660008045000 SPECIAL WASHER D=16,5MMSPECIAL WASHER D=16,5MM
-
5761108006100 COLLAR BUSHING 6,2X7,5X12,5COLLAR BUSHING 6,2X7,5X12,5
-
5858214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
5916512180100 SIDE REFLECTOR RED REAR ONLY FOR USASIDE REFLECTOR RED REAR ONLY FOR USA
-
6062512081000 BRACKET SIDE REFLECTOR ONLY FOR USABRACKET SIDE REFLECTOR ONLY FOR USA
