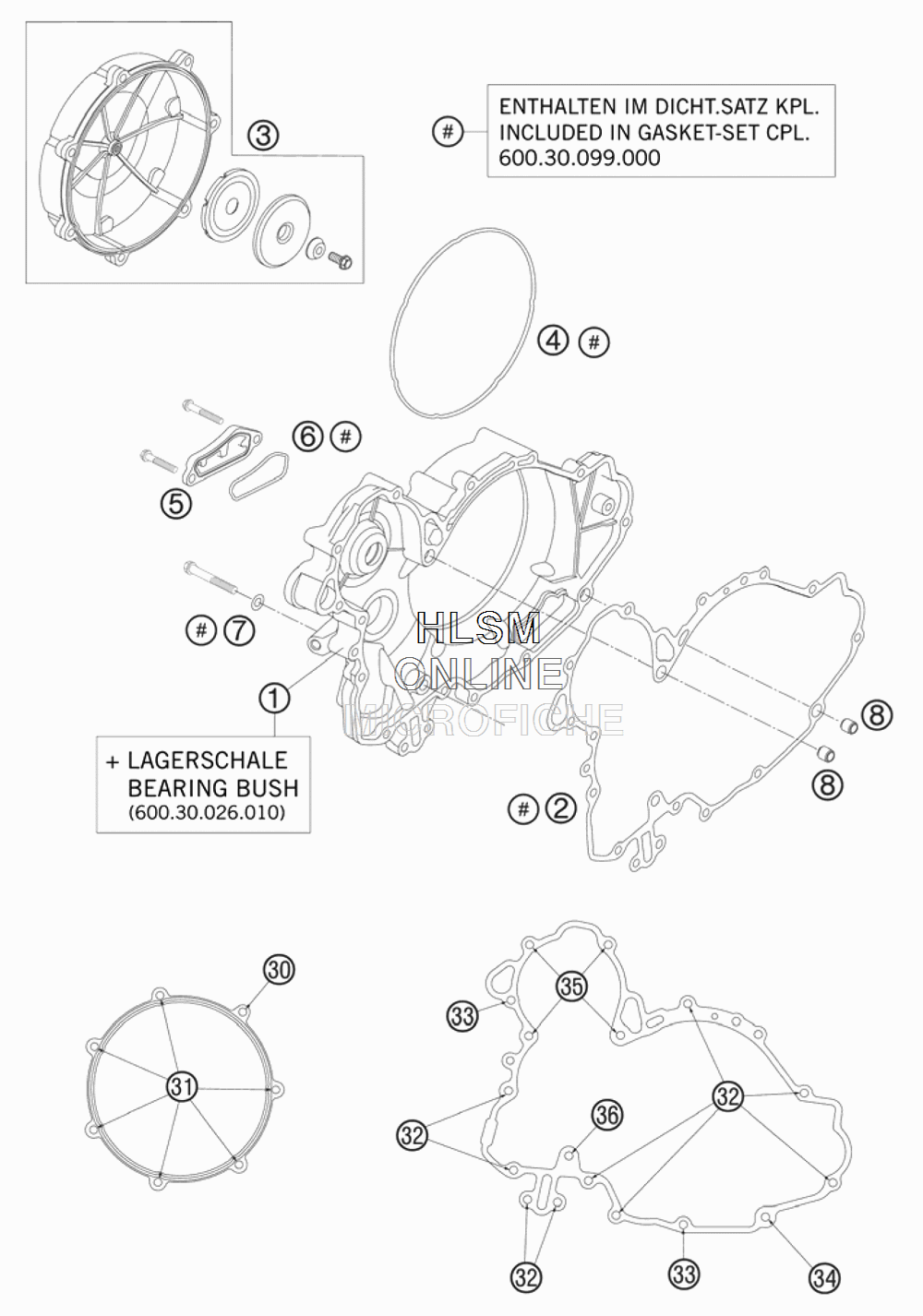

CLUTCH COVER для Ktm 990 Super Duke Orange - 2008 года выпуска
-
№АртикулНазвание
-
1*60030001144 CLUTCH COVER LC8 CPL.CLUTCH COVER LC8 CPL.
-
260030025000 CLUT.COV. GASK. INSIDE KLI.SILCLUT.COV. GASK. INSIDE KLI.SIL
-
360030126144 OUTER CLUTCH COVER CPL.OUTER CLUTCH COVER CPL.
-
460030027000 GASKET RING CLUTCH 2X3,1 VAMACGASKET RING CLUTCH 2X3,1 VAMAC
-
560030012100 CLOS. COVER OIL SCR. MILLEDCLOS. COVER OIL SCR. MILLED
-
660030012050 MOLDED RING 1,8X2,5 VAMACMOLDED RING 1,8X2,5 VAMAC
-
70603082131 COPPER GASK.DIN7603- 8,2X13X1COPPER GASK.DIN7603- 8,2X13X1
-
849030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
300015060853 HH COLLAR SCREW M 6X85 WS=8HH COLLAR SCREW M 6X85 WS=8
-
310015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
320015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
330015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
340015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
350015060603 HH COLLAR SCREW M 6X60 WS=8HH COLLAR SCREW M 6X60 WS=8
-
360015080603 HH COLLAR SCREW M 8X60 WS=10HH COLLAR SCREW M 8X60 WS=10
