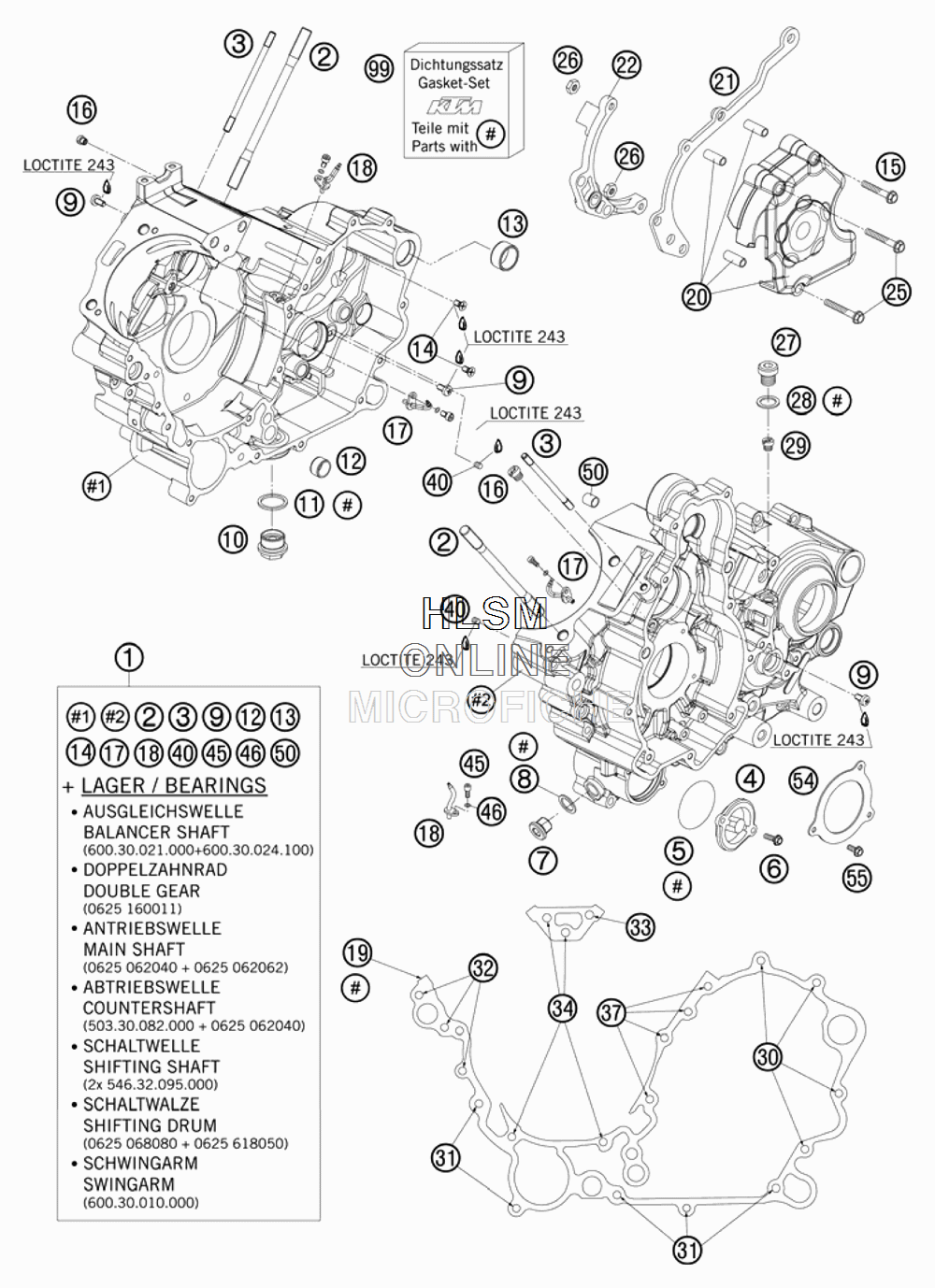

ENGINE CASE для Ktm 990 SUPERDUKE R - 2008 года выпуска
-
№АртикулНазвание
-
1*61130000044 ENGINE CASE CPL. W.BEARINGSENGINE CASE CPL. W.BEARINGS
-
260030043100 STUD M10X161STUD M10X161
-
360030043010 STUD M 6X101 10.9STUD M 6X101 10.9
-
459038041000 OIL FILTER COVER RACINGOIL FILTER COVER RACING
-
50770400025 O-RING 40,00X2,50 NBR 70O-RING 40,00X2,50 NBR 70
-
60015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
760038033050 PLUG SCREW M14X1,5 ALU AHPLUG SCREW M14X1,5 ALU AH
-
80603142016 CU-SEAL RING 14X20X1,5CU-SEAL RING 14X20X1,5
-
9*0985050103 OVAL HEAD SCR. DIN7985-M 5X10OVAL HEAD SCR. DIN7985-M 5X10
-
1058038019050 DRAIN PLUG W. MAGNETDRAIN PLUG W. MAGNET
-
1158038017100 CU-SEAL RING DIN7603-22X27X2CU-SEAL RING DIN7603-22X27X2
-
1258330023000 DOWEL 17 X 14 X 9,5DOWEL 17 X 14 X 9,5
-
1360030023000 DOWEL 20,1X24X12DOWEL 20,1X24X12
-
14*0965050103 FLAT HEAD SCREW DIN0965-M 5X10FLAT HEAD SCREW DIN0965-M 5X10
-
150015060303 HH COLLAR SCREW M 6X30 SW=8HH COLLAR SCREW M 6X30 SW=8
-
1659030054000 JET 60 DELLORTO M6X0,75JET 60 DELLORTO M6X0,75
-
17*60030066000 OIL JET CURVED "70" BLUEOIL JET CURVED "70" BLUE
-
18*60030064100 OIL JET CURVED "70" GREENOIL JET CURVED "70" GREEN
-
1960030039100 ENGINE CASE GASKET 0,5MMENGINE CASE GASKET 0,5MM
-
2060030060044 CHAIN SPROCKET COVER CPL.CHAIN SPROCKET COVER CPL.
-
2160030047000 CHAIN FAIL. PROTECTIONCHAIN FAIL. PROTECTION
-
2260032063000 ADAPTER F. HYDR. CLUTCHADAPTER F. HYDR. CLUTCH
-
250015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
260985060003 SELF LOCK. NUT DIN0985-M6SELF LOCK. NUT DIN0985-M6
-
2749030029000 OIL DRAIN PLUG M10X1,5 AH-WS=6OIL DRAIN PLUG M10X1,5 AH-WS=6
-
280603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
29*60038029200 REDUCING JET "30" M6X0,75REDUCING JET "30" M6X0,75
-
300015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
310015060603 HH COLLAR SCREW M 6X60 WS=8HH COLLAR SCREW M 6X60 WS=8
-
320015060653 HH COLLAR SCREW M 6X65 WS=8HH COLLAR SCREW M 6X65 WS=8
-
330015060703 HH COLLAR SCREW M 6X70 WS=8HH COLLAR SCREW M 6X70 WS=8
-
340015060753 HH COLLAR SCREW M 6X75 WS=8HH COLLAR SCREW M 6X75 WS=8
-
370015060903 HH COLLAR SCREW M 6X90 WS=8HH COLLAR SCREW M 6X90 WS=8
-
400551060050 THREAD PIN DIN0551-M 6X 5THREAD PIN DIN0551-M 6X 5
-
450912040103 AH.SCREW DIN0912-M 4X10AH.SCREW DIN0912-M 4X10
-
460770035020 O-RING 3,5X2,00 NBRO-RING 3,5X2,00 NBR
-
5049030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
5460030084000 BRACKET FOR BEARING INSERTBRACKET FOR BEARING INSERT
-
550015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
9960030099000 GASKET SET CPL.GASKET SET CPL.
