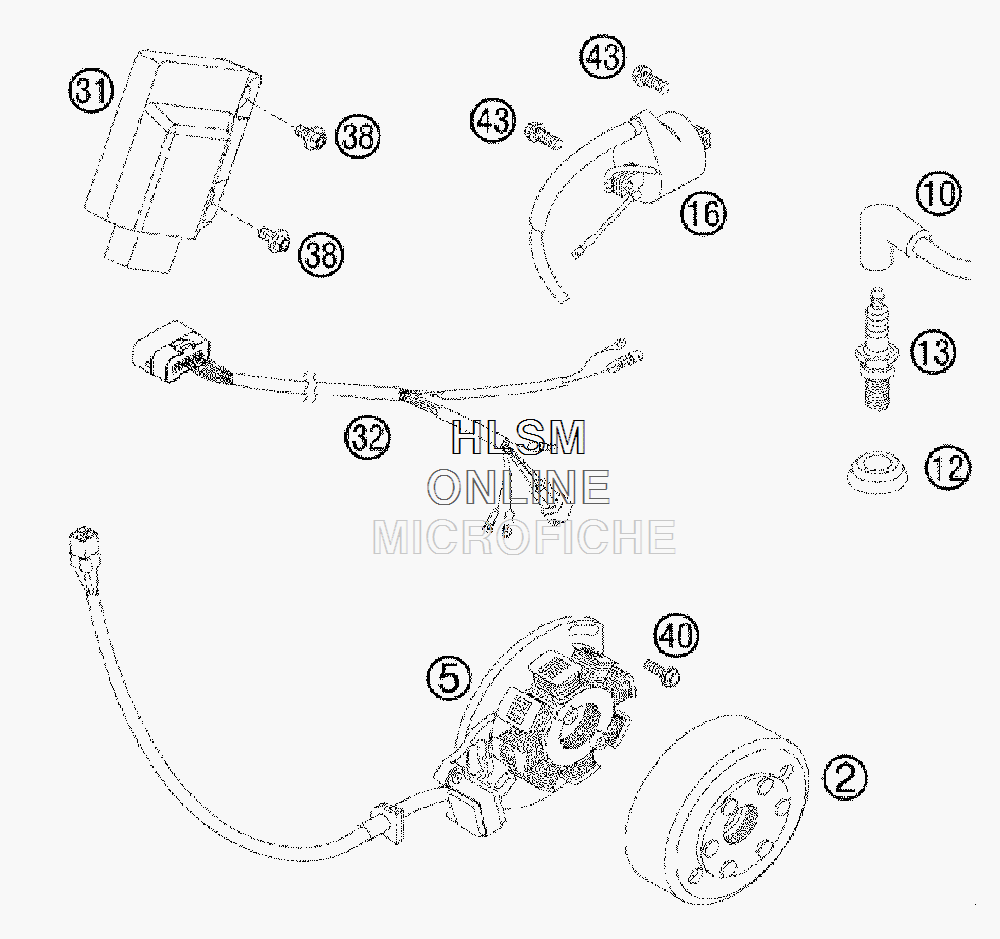

IGNITION SYSTEM для Ktm 200 XC USA - 2009 года выпуска
-
№АртикулНазвание
-
250339005200 FLYWHEEL KOKUSAN 2K-3FLYWHEEL KOKUSAN 2K-3
-
554839204000 STATOR KOKUSAN 2K-3STATOR KOKUSAN 2K-3
-
1047039090000 SPARK PLUG CAP NGK REINFORC.SPARK PLUG CAP NGK REINFORC.
-
1250231012000 SEALING CUP FOR SPARK PLUGSEALING CUP FOR SPARK PLUG
-
1354331093310 SPARK PLUG NGK BR8EGSPARK PLUG NGK BR8EG
-
1659039006000 IGNITIONCOIL KOKUSAI 4K3-A/BIGNITIONCOIL KOKUSAI 4K3-A/B
-
3152339031900 CDI UNIT 200 XC/EXCCDI UNIT 200 XC/EXC
-
3254839032300 WIRING HARNESS F.CDI 2-ST.SX07WIRING HARNESS F.CDI 2-ST.SX07
-
380023060123 COLLAR SCREW M6X12COLLAR SCREW M6X12
-
400025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
430025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
