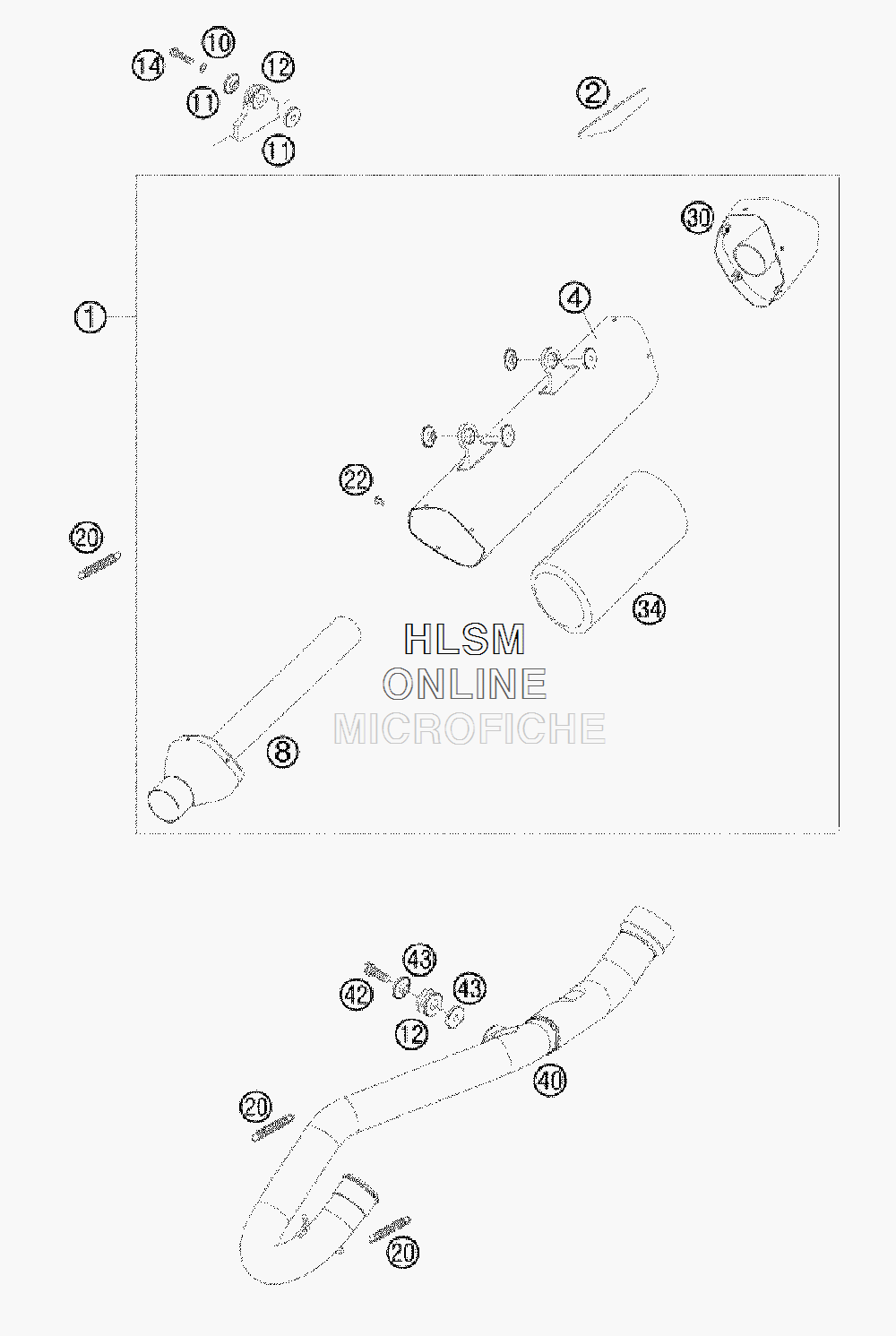

EXHAUST SYSTEM для Ktm 250 SX-F - 2009 года выпуска
-
№АртикулНазвание
-
177005079100 EXH SILENCER CPL.250SXFEXH SILENCER CPL.250SXF
-
277308013050 THERMAL PROTECTION FOILTHERMAL PROTECTION FOIL
-
477005079150 SILENCER HOUSING 250 SX-FSILENCER HOUSING 250 SX-F
-
877005079109 SILENCENER C. CPL. 250 SX-FSILENCENER C. CPL. 250 SX-F
-
100137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1177305069000 BUSHING 7.5X12X28X7.6BUSHING 7.5X12X28X7.6
-
1254605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
140025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
2050305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
2258605083010 SCREW TORX M5X10SCREW TORX M5X10
-
3077305079006 ENDCAPENDCAP
-
3358305083080 STUFFING YARN HGSSTUFFING YARN HGS
-
3477005079020 STUFFING YARN 250SX-FSTUFFING YARN 250SX-F
-
4077005007300 EXHAUST MANIFOLD 250 SX-FEXHAUST MANIFOLD 250 SX-F
-
420025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
4359405069000 BUSHING FOR EXHAUST SUPPORTBUSHING FOR EXHAUST SUPPORT
