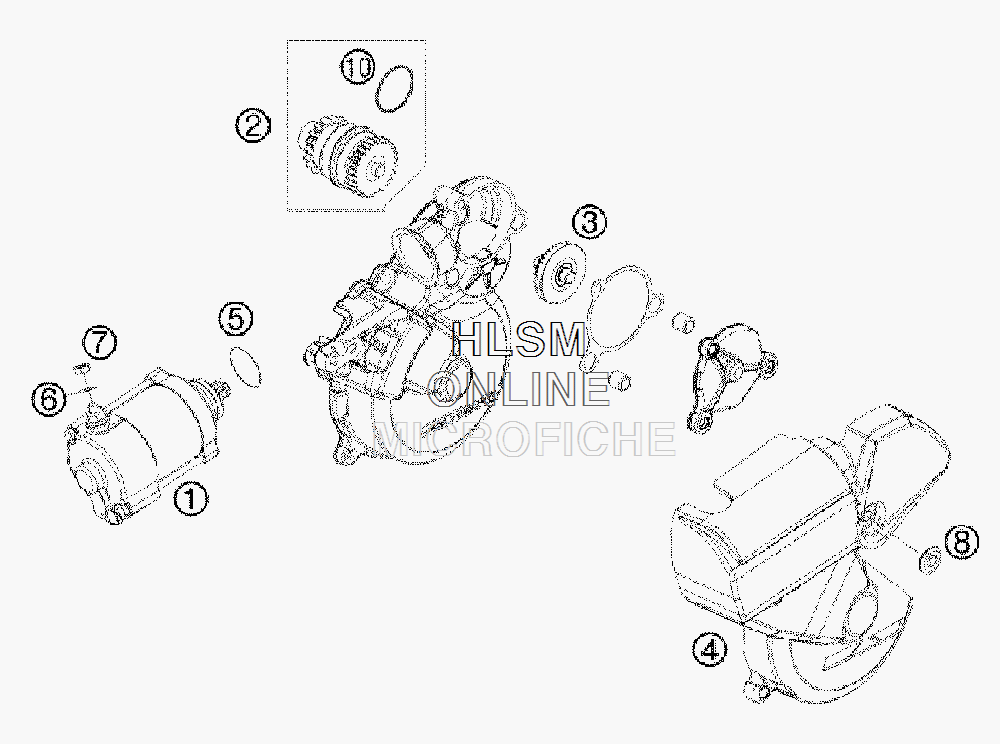

ELECTRIC STARTER для Ktm 250 XC-W USA - 2009 года выпуска
-
№АртикулНазвание
-
155140001000 E-STARTER ENGINE KPL.E-STARTER ENGINE KPL.
-
255140026000 BENDIXBENDIX
-
355140022000 INTERMEDIATE SHAFT CPL.INTERMEDIATE SHAFT CPL.
-
455140040044 STARTER DRIVE COVERSTARTER DRIVE COVER
-
50770250030 O-RING 25,00X3,00 NBR 70O-RING 25,00X3,00 NBR 70
-
60125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
70985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
850308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
1055140027000 BENDIXSPRINGBENDIXSPRING
