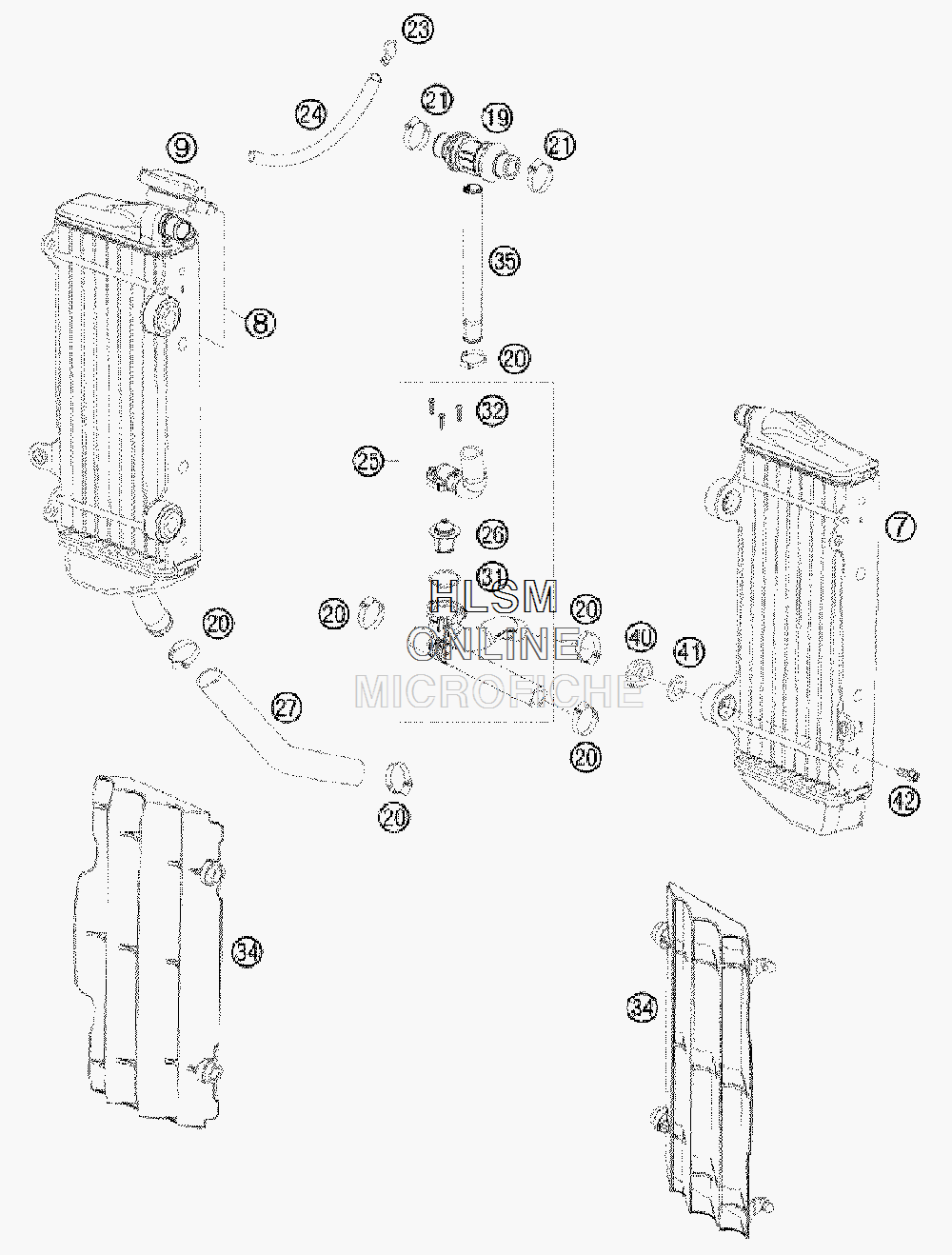

COOLING SYSTEM для Ktm 300 XC-W - 2009 года выпуска
-
№АртикулНазвание
-
754835007200 RADIATOR LEFT ''VW1595''RADIATOR LEFT ''VW1595''
-
854835008200 RADIATOR RIGHT ''VW1596''RADIATOR RIGHT ''VW1596''
-
958035016000 RADIATOR CAP SMALL 20,3 PSIRADIATOR CAP SMALL 20,3 PSI
-
1977335026000 T-CONNECTOR CPL.T-CONNECTOR CPL.
-
2010001020000 HOSE CLAMP GEMI 16-27HOSE CLAMP GEMI 16-27
-
2142013037300 HOSE CLAMP NORMA 12/22HOSE CLAMP NORMA 12/22
-
2350303089000 ANGEL PIECEANGEL PIECE
-
2431007107001 PVC-HOSE 6X9 MM PER METERPVC-HOSE 6X9 MM PER METER
-
2554835426033 RADIATOR H. 250 W. THERM.55RADIATOR H. 250 W. THERM.55
-
2654835017000 THERMOSTAT 55° CTHERMOSTAT 55° C
-
2754835027000 RADIATOR HOSE 18X25X130 MMRADIATOR HOSE 18X25X130 MM
-
310770320020 O-RING 32,00X2,00O-RING 32,00X2,00
-
320016040183 SCREW FOR PLASTIC D=4X18SCREW FOR PLASTIC D=4X18
-
347733503400030 RAD. PR. L/S+R/S BLACK SXRAD. PR. L/S+R/S BLACK SX
-
3554835072000 HOSE CONNECTOR 2 STROKEHOSE CONNECTOR 2 STROKE
-
4041001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
4177335001000 WASHER FOR RADIATORWASHER FOR RADIATOR
-
420023060123 COLLAR SCREW M6X12COLLAR SCREW M6X12
