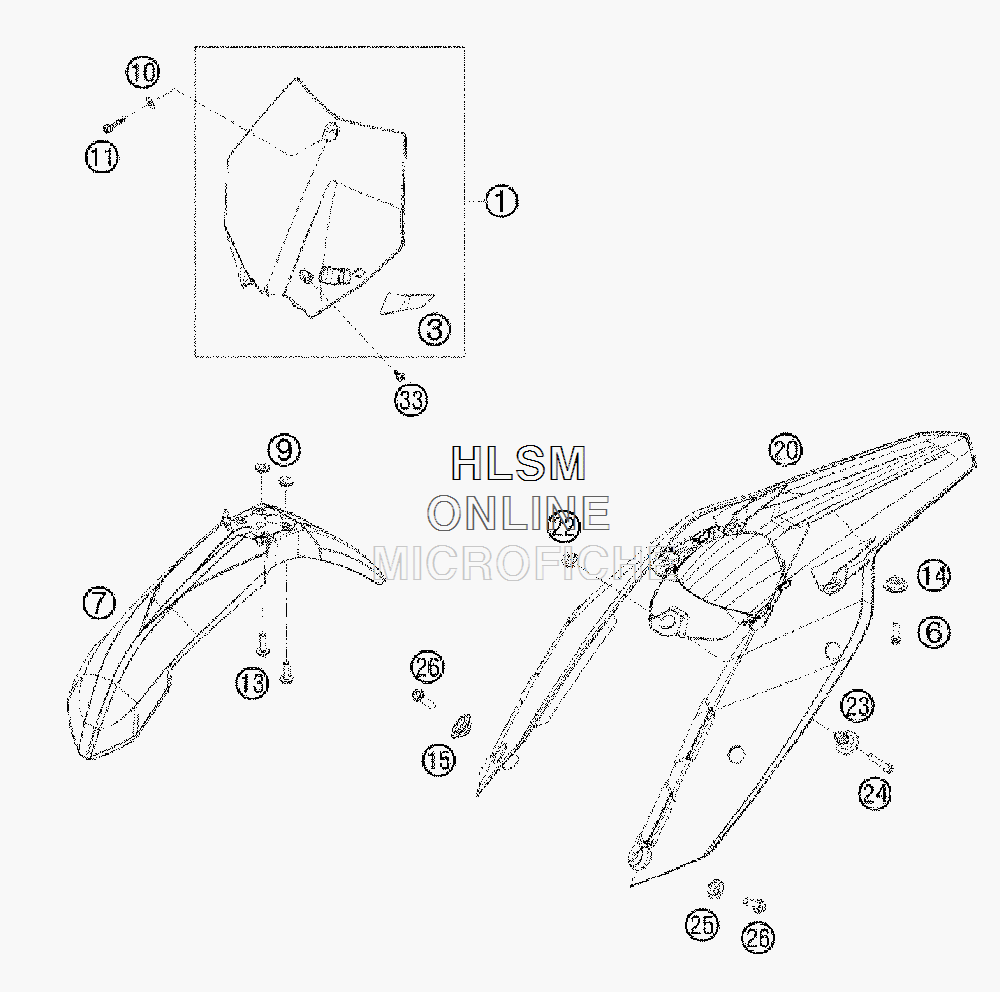

MASK FENDERS для Ktm 400 XC-W - 2009 года выпуска
-
№АртикулНазвание
-
17730800704404 NUMBER PLATE CPL. ORANGENUMBER PLATE CPL. ORANGE
-
37730802200004 BRAKE HOSE GUIDE ORANGEBRAKE HOSE GUIDE ORANGE
-
60025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
77730801000004 FRONT FENDERFRONT FENDER
-
954808020000 SPACER BUSHINGSPACER BUSHING
-
100021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
110025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
130024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1477308013010 COLLAR BUSH. F.REAR FENDERCOLLAR BUSH. F.REAR FENDER
-
1577306001030 COLLAR BUSHING 4,5/12,6/23COLLAR BUSHING 4,5/12,6/23
-
207800801300004 REAR PART EXC ORANGEREAR PART EXC ORANGE
-
2250314057050 COLLAR NUT M12X1/WS17 H=5MMCOLLAR NUT M12X1/WS17 H=5MM
-
2354807048000 BUSHING FOR SEAT FASTENINGBUSHING FOR SEAT FASTENING
-
240025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
2550308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
260025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
330017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
