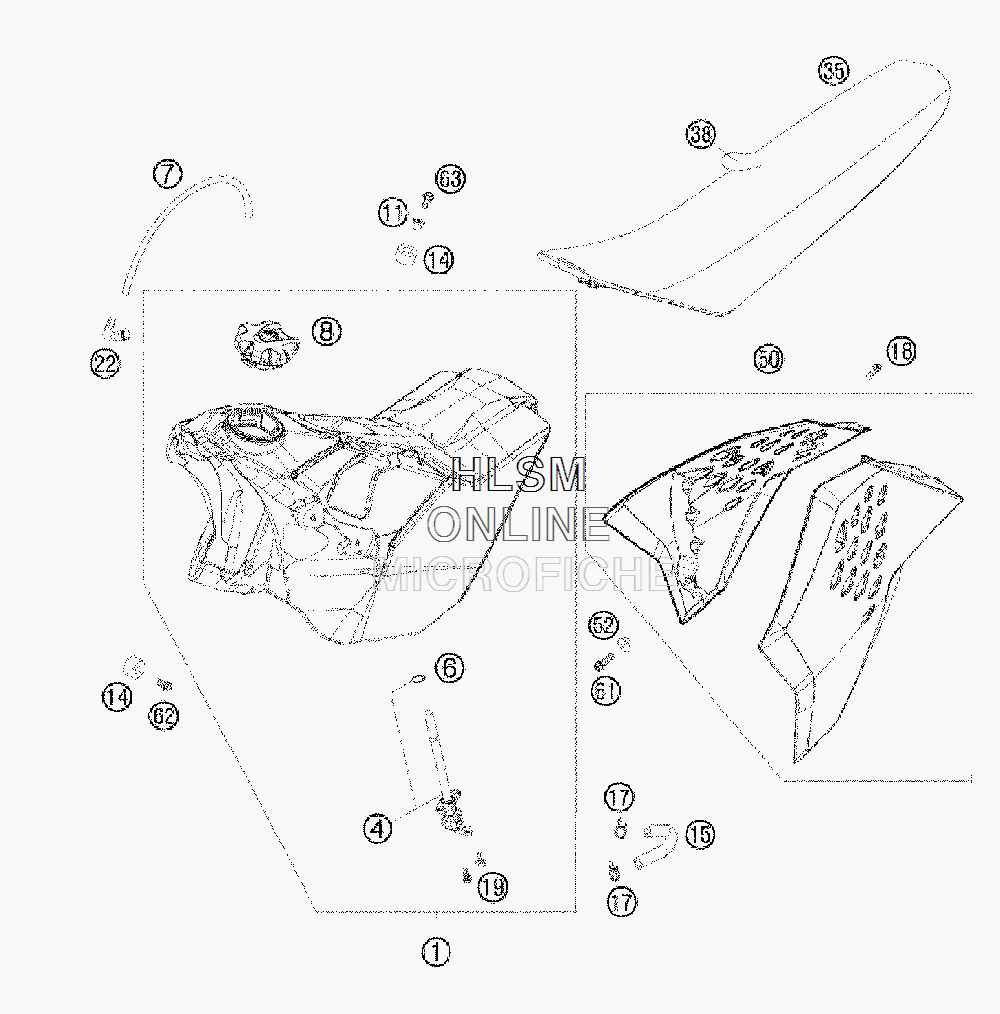

TANK SEAT COVER для Ktm 505 XC-F - 2009 года выпуска
-
№АртикулНазвание
-
17800701306630 FUEL TANK CPL. 9,5L EXC-FFUEL TANK CPL. 9,5L EXC-F
-
478007004000 GAS COCK ON/OFF/RESGAS COCK ON/OFF/RES
-
60770110021 O-RING 11X2 VITONO-RING 11X2 VITON
-
778007000270 PVC-HOSE 5,6X10X270MMPVC-HOSE 5,6X10X270MM
-
87800700804404 TANK PLUG ORANGE/BLACKTANK PLUG ORANGE/BLACK
-
1177307026000 TANK BUSHINGTANK BUSHING
-
1450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
1577307016000 FUEL PREFORMED HOSE 450 SX-FFUEL PREFORMED HOSE 450 SX-F
-
1758031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
180017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
190017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
-
2251030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
3577307040000 SEAT SXSEAT SX
-
3877307040050 SEAT COVERSEAT COVER
-
507730805410004A SPOILER KIT ORANGE XC WITH DECALSPOILER KIT ORANGE XC WITH DECAL
-
5250308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
610025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
620025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
630024060273 COLLAR SCREW M6X27COLLAR SCREW M6X27
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT PISTON
- CYLINDER
- CYLINDER HEAD
- DECAL
- ELECTRIC STARTER
- ENGINE CASE
- EXHAUST SYSTEM
- FRAME
- FRONT FORK DISASSEMBLED
- FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR CONTROLS
- IGNITION SYSTEM
- LUBRICATING SYSTEM
- MASK FENDERS
- REAR BRAKE CONTROL
- REAR WHEEL
- SHIFTING MECHANISM
- SHOCK ABSORBER
- SHOCK ABSORBER DISASSEMBLED
- SIDE / CENTER STAND
- SPECIAL TOOLS - ENGINE
- SWING ARM
- • TANK SEAT COVER
- TIMING DRIVE
- TRANSMISSION I - MAIN SHAFT
- TRANSMISSION II - COUNTERSHAFT
- VALVE DRIVE
- WATER PUMP
- WIRING HARNESS
