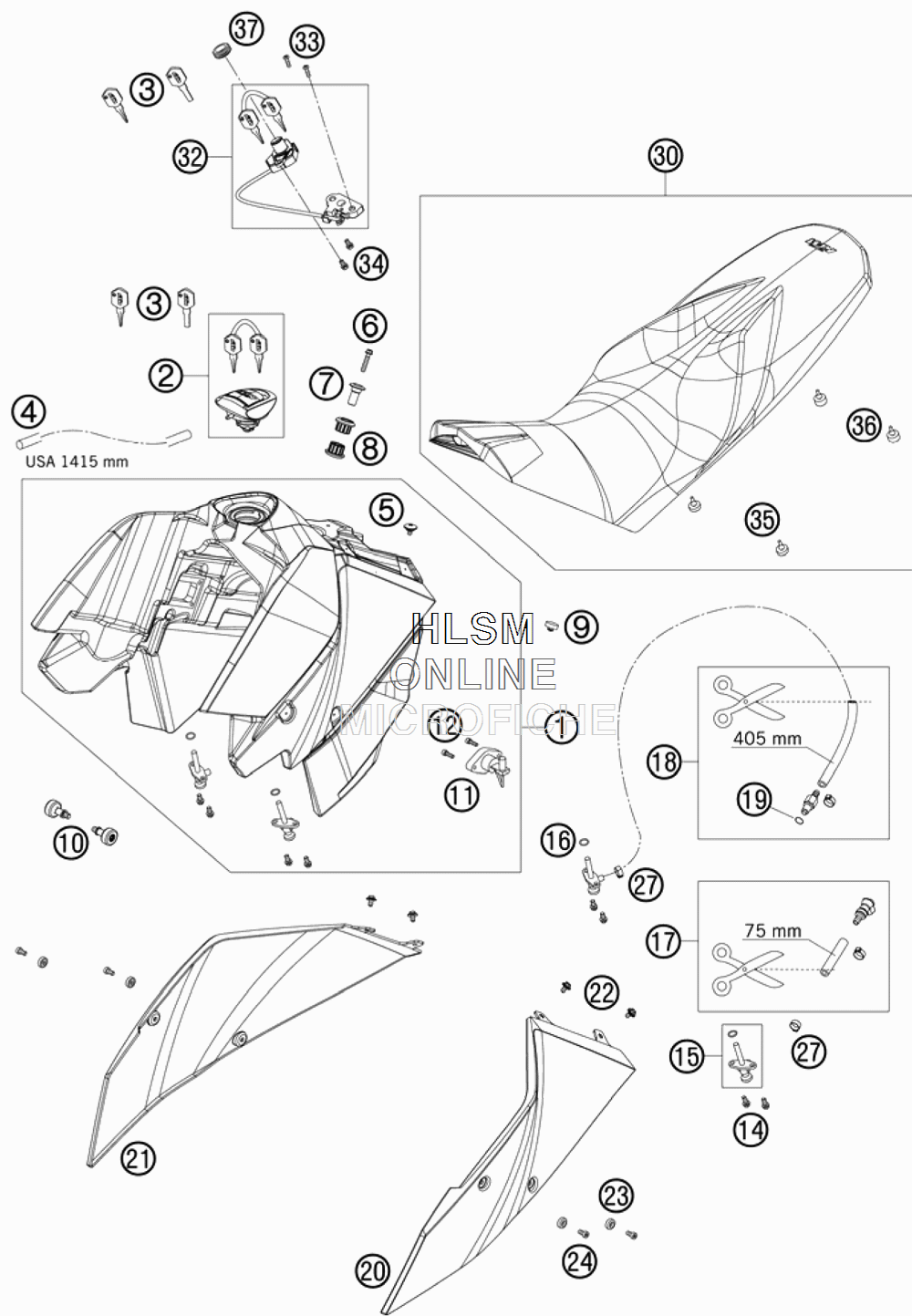

TANK SEAT COVER для Ktm 690 DUKE ORANGE - 2009 года выпуска
-
№АртикулНазвание
-
17500701304475A FUEL TANK CPL. BLACK/ORANGEFUEL TANK CPL. BLACK/ORANGE
-
258407008200 TANK PLUGTANK PLUG
-
340011166100 KEY BLANK LC4/DUKE/LC8KEY BLANK LC4/DUKE/LC8
-
340011166150 KEYKEY
-
460007026001 HOSE NBR 5,4X9,4 PER METER (US ONLY)HOSE NBR 5,4X9,4 PER METER (US ONLY)
-
558407011100 SCREW FOR SEAT M6X11,5/8SCREW FOR SEAT M6X11,5/8
-
60912080303 AH SCREW DIN0912-M 8X30AH SCREW DIN0912-M 8X30
-
760007060000 BEARING BUSHING OUTSIDEBEARING BUSHING OUTSIDE
-
860007065000 TANK RUBBER BUSHINGTANK RUBBER BUSHING
-
954308042000 RUBBER BUFFERRUBBER BUFFER
-
1062507026100 SPECIAL SCREW M8SPECIAL SCREW M8
-
1158207080100 GAS-LEVEL SENSOR ADV.GAS-LEVEL SENSOR ADV.
-
120912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
140025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
1558507003000 FUEL COCK CPL. SMALL RALLYEFUEL COCK CPL. SMALL RALLYE
-
1655007006200 O-RING 11X1,8 NBR 70O-RING 11X1,8 NBR 70
-
1775007116060 FUEL HOSE WITH CLUTCHFUEL HOSE WITH CLUTCH
-
1875007016050 FUEL HOSE WITH CLUTCHFUEL HOSE WITH CLUTCH
-
1958507012000 O-RING VITON F. PLUG CPCO-RING VITON F. PLUG CPC
-
207500805000040C SPOILER L/S BLACK-MET.+DECALSPOILER L/S BLACK-MET.+DECAL
-
217500805100040C SPOILER R/S BLACK-MET.+DECALSPOILER R/S BLACK-MET.+DECAL
-
220024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
2360008045000 SPECIAL WASHER D=16,5MMSPECIAL WASHER D=16,5MM
-
240012060123 AH SCREW DIN6912 M6X12AH SCREW DIN6912 M6X12
-
2700050142706 VARIABLE ONE-EAR CLAMP 14,2 MMVARIABLE ONE-EAR CLAMP 14,2 MM
-
3075607040000 SEATSEAT
-
3262507050000 SEAT LOCKSEAT LOCK
-
330966050203 OVAL HEAD SCREW DIN0966-M 5X20OVAL HEAD SCREW DIN0966-M 5X20
-
340025050126 HH COLLAR SCREW M5X12HH COLLAR SCREW M5X12
-
3575007046020 SEAT RUBBER 6 MMSEAT RUBBER 6 MM
-
3675007046010 SEAT RUBBER 10 MMSEAT RUBBER 10 MM
-
3758707050050 RUBBER SLEEVE F.SEAT LOCKRUBBER SLEEVE F.SEAT LOCK
