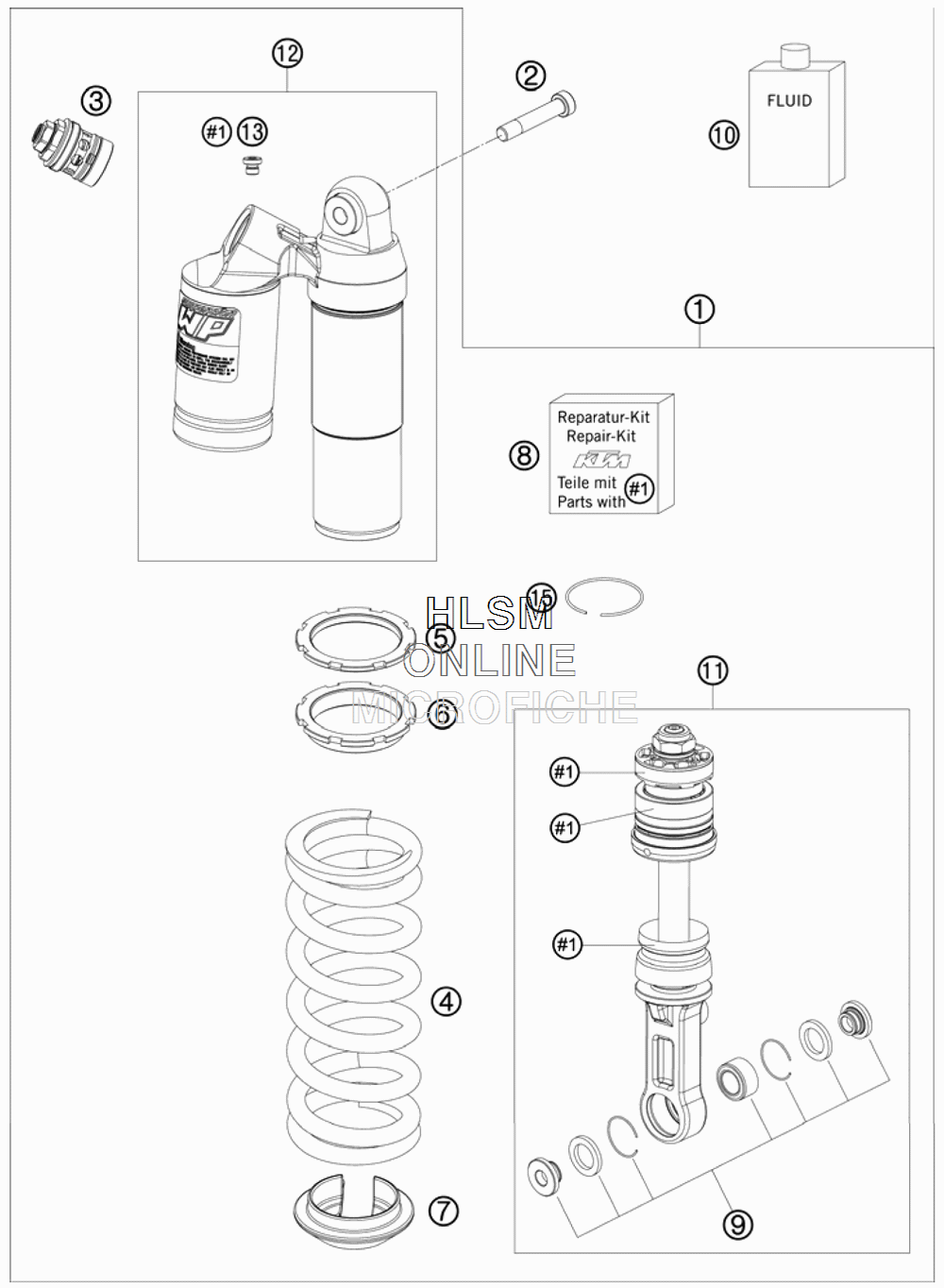

SHOCK ABSORBER для Ktm 690 DUKE WHITE - 2009 года выпуска
-
№АртикулНазвание
-
1*15187E09 MONOSHOCKMONOSHOCK
-
275004016000 SCREW M 10 L=53MMSCREW M 10 L=53MM
-
3*50180213S9 DCC-COMPR.DAMP.CONTROL CPL.DCC-COMPR.DAMP.CONTROL CPL.
-
491110012S SPRING 185MM 70N/MM (61)SPRING 185MM 70N/MM (61)
-
5*46180766 COUNTERNUTCOUNTERNUT
-
6*46180855 ADJUSTING NUTADJUSTING NUT
-
746180396 SPRING RETAINER H=15 D=28SPRING RETAINER H=15 D=28
-
8R15004 REPAIR KIT GASKETREPAIR KIT GASKET
-
9R15006 REPAIR KIT BEARINGSREPAIR KIT BEARINGS
-
1050180342S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
11*46180654S8 SHOCK ABS. BOTTOM CPL.SHOCK ABS. BOTTOM CPL.
-
12*46180807S1 MONOSHOCK TOP PART CPL.MONOSHOCK TOP PART CPL.
-
1350180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
1546810010 CIRCLIP 49X1,5CIRCLIP 49X1,5
