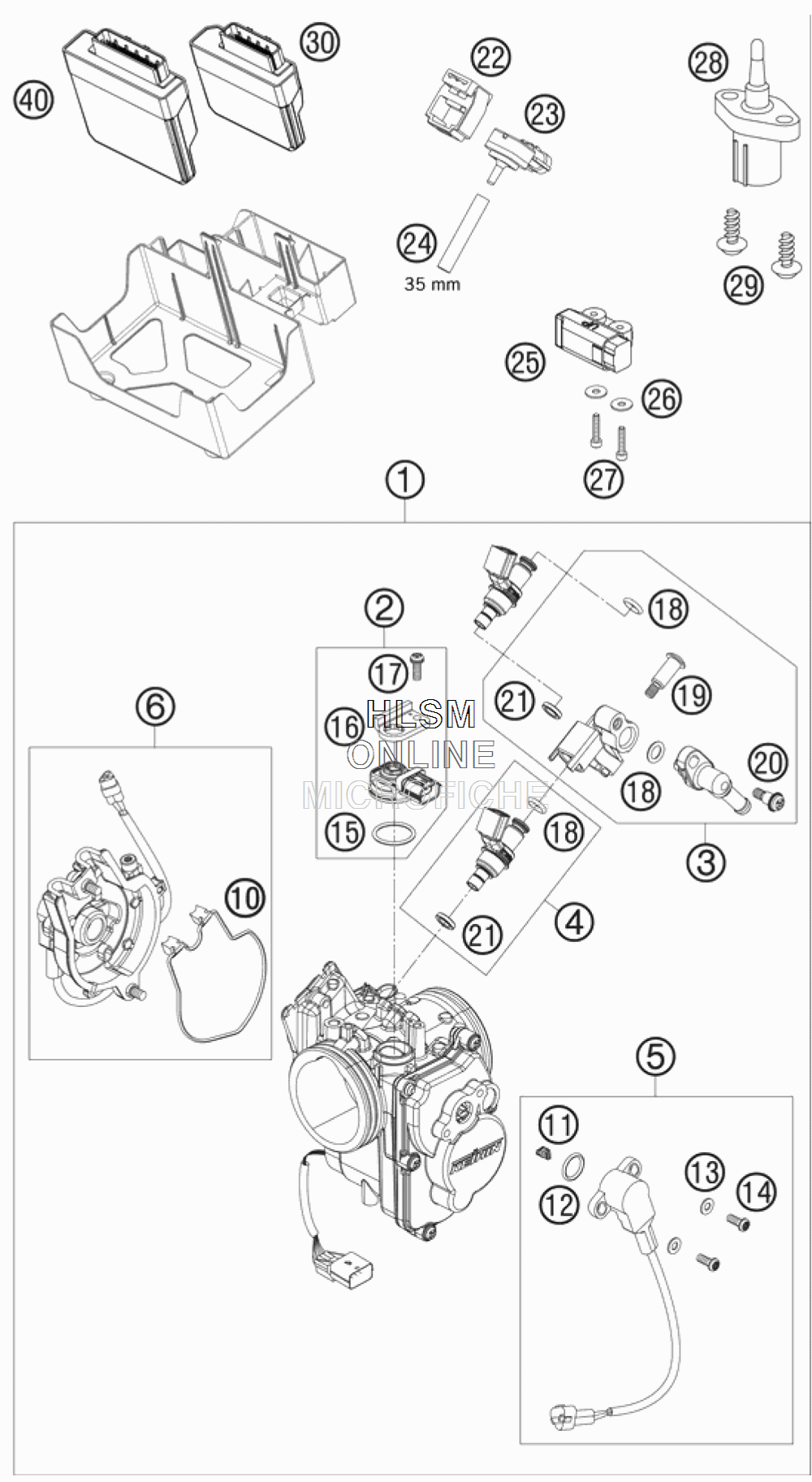

THROTTLE BODY для Ktm 690 ENDURO R - 2009 года выпуска
-
№АртикулНазвание
-
175041001000 THROTTLE BODYTHROTTLE BODY
-
275041085044 MAP SENSOR CPL.MAP SENSOR CPL.
-
375041013044 FUEL RAIL ASSY SETFUEL RAIL ASSY SET
-
475041023044 FUEL INJECTOR ASSY SETFUEL INJECTOR ASSY SET
-
575041077044 TPS CPL.TPS CPL.
-
675041001044 APS CPL.APS CPL.
-
1075041001060 PACKINGPACKING
-
1175041077020 CONNECTOR JOINTCONNECTOR JOINT
-
1275041077010 O-RINGO-RING
-
1375041077040 WASHERWASHER
-
1475041077030 SCREW TORXSCREW TORX
-
1575041085010 O-RINGO-RING
-
1675041085020 PLATE, STAYPLATE, STAY
-
1775041085030 SCREW WASHERSCREW WASHER
-
1875041023020 O-RINGO-RING
-
1975041013060 SCREW SHOULDERSCREW SHOULDER
-
2075041013010 SCREW SHOULDERSCREW SHOULDER
-
2175041023010 SEAL RINGSEAL RING
-
2261041085150 RUBBER SUPP. PRESSURE SENS.RUBBER SUPP. PRESSURE SENS.
-
2361041085100 PRESSURE SENSORPRESSURE SENSOR
-
2460031098001 HOSE 3,2X8,5 PER METERHOSE 3,2X8,5 PER METER
-
2561041088000 ROLLOVER SENSORROLLOVER SENSOR
-
2661041088050 SHIM 4,3X15X1,25MM GALVANIZEDSHIM 4,3X15X1,25MM GALVANIZED
-
270912040253 AH SCREW DIN0912-M 4X25AH SCREW DIN0912-M 4X25
-
2861041080000 AMBIENT-AIR TEMPERATURE SENSORAMBIENT-AIR TEMPERATURE SENSOR
-
290016050121 SCREW FOR PLASTIC 50X12SCREW FOR PLASTIC 50X12
-
3075041032000 TIMING CHARGER EPTTIMING CHARGER EPT
-
4075041031000 TIMING CHARGER EFITIMING CHARGER EFI
