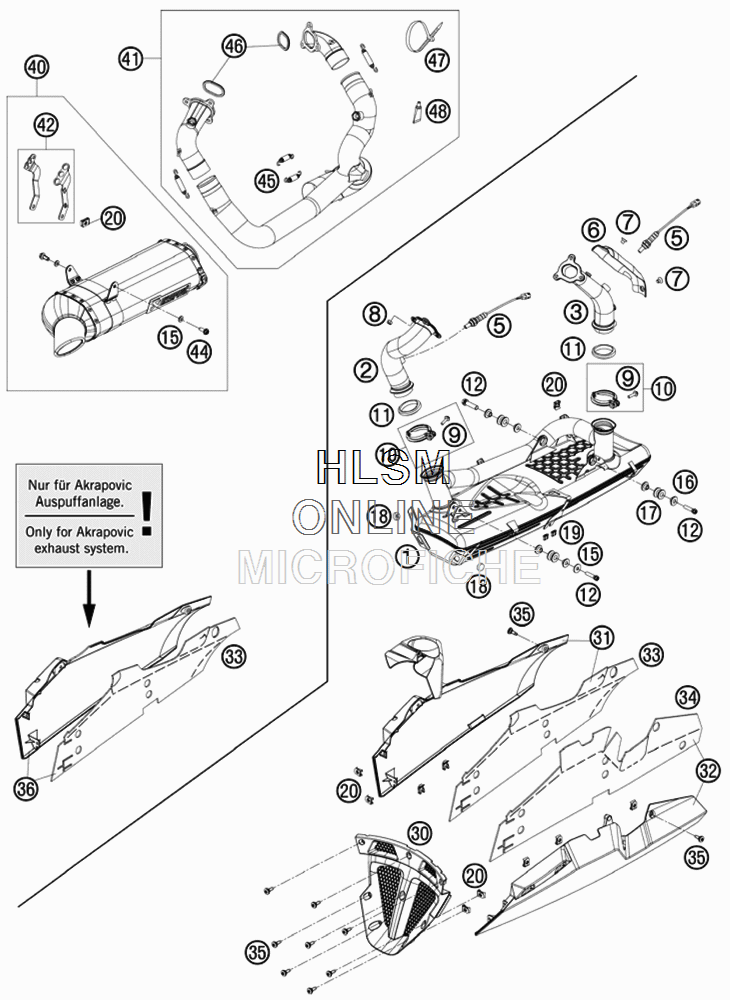

EXHAUST SYSTEM для Ktm 1190 RC8-R LTD AKRAPOV - 2010 года выпуска
-
№АртикулНазвание
-
169005183100 SILENCER CPL. RC8 USASILENCER CPL. RC8 USA
-
269005007100 EXHAUST MANIFOLD FRONT CPL.EXHAUST MANIFOLD FRONT CPL.
-
369005008000 EXHAUST PIPE REAR CPL.EXHAUST PIPE REAR CPL.
-
561041090000 LAMBDA SENSORLAMBDA SENSOR
-
669005011000 HEAT SHIELD REARHEAT SHIELD REAR
-
70991060082 FLAT H.SCREW M6X8 DIN7991 NIROFLAT H.SCREW M6X8 DIN7991 NIRO
-
851010086100 SELF LOCKING NUT M 8 CUSELF LOCKING NUT M 8 CU
-
90024060136 HH COLLAR SCREW M6X13 TX30HH COLLAR SCREW M6X13 TX30
-
1069005050000 CLAMP CPL.CLAMP CPL.
-
1169005005005 MANIFOLD GASKETMANIFOLD GASKET
-
120025080356S HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
1521080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
1658405050065 COLLAR BUSH 8,5X12X23,5X10COLLAR BUSH 8,5X12X23,5X10
-
1754305068100 DAMP. COMPONENT SILICONE GREYDAMP. COMPONENT SILICONE GREY
-
1854308042000 RUBBER BUFFERRUBBER BUFFER
-
1961005091000 DAMP. COMPON. SILICONE GREYDAMP. COMPON. SILICONE GREY
-
2069008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
306900806020033 KEEL COVER BLACK MATTKEEL COVER BLACK MATT
-
316900805633320B EXH.COVER R/S CPL. WHITE BR.EXH.COVER R/S CPL. WHITE BR.
-
326900805523320B EXH. COVER L/S CPL.WHITE BR.EXH. COVER L/S CPL.WHITE BR.
-
3369005083192 HEAT SHIELD F. EXH. COVER R/SHEAT SHIELD F. EXH. COVER R/S
-
3469005083193 HEAT SHIELD F. EXH. COVER L/SHEAT SHIELD F. EXH. COVER L/S
-
3569008021060 SPECIAL SCREW M5X17SPECIAL SCREW M5X17
-
366900815603320A EXH.COV.R/S CPL.WHITE BR. RC8REXH.COV.R/S CPL.WHITE BR. RC8R
-
4069105283000 SUPERSTOCK SILENCER TITANSUPERSTOCK SILENCER TITAN
-
4169105907000 TITANIUM SUPERSTOCK HEADERTITANIUM SUPERSTOCK HEADER
-
4269005283060 FITTING ASSEMBLYFITTING ASSEMBLY
-
440025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
4557305016000 EXHAUST-SPRING WITH RUBBEREXHAUST-SPRING WITH RUBBER
-
4669005005100 EXHAUST PIPE FLANGE GASKETEXHAUST PIPE FLANGE GASKET
-
4744011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
4876505099060 COPPER PASTECOPPER PASTE
