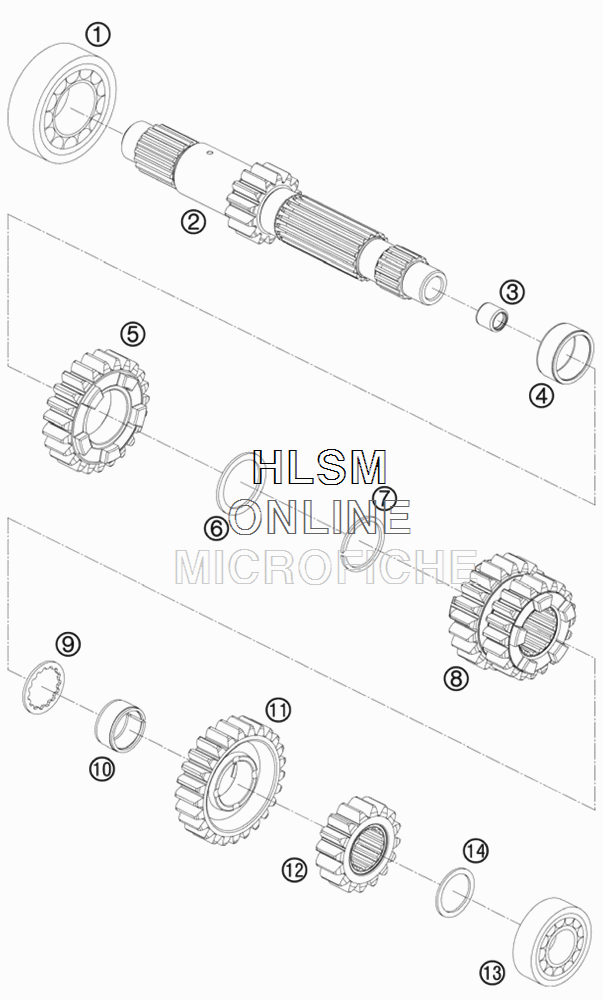

TRANSMISSION I - MAIN SHAFT для Ktm 1190 RC8-R RED BULL - 2010 года выпуска
-
№АртикулНазвание
-
10625062062 BALL BEARING 6206 C3 J1 NSKBALL BEARING 6206 C3 J1 NSK
-
261233001000 MAIN SHAFT 14TMAIN SHAFT 14T
-
30618091312 NEEDLE BUSH HK0912 9/13/12NEEDLE BUSH HK0912 9/13/12
-
40405263113 NEEDLE BEAR. K 26-31-13NEEDLE BEAR. K 26-31-13
-
561233005100 IDLER GEAR 5.GIDLER GEAR 5.G
-
661233042000 STOP DISK 27,9/35,75/1,5STOP DISK 27,9/35,75/1,5
-
70417280150 LOCK RING DIN5417-WS28LOCK RING DIN5417-WS28
-
861233003100 SLIDING GEAR 3./4.GSLIDING GEAR 3./4.G
-
961233041000 STOP DISK 22,2/30,2/1,5STOP DISK 22,2/30,2/1,5
-
100405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
1161233006100 IDLER GEAR 6.GIDLER GEAR 6.G
-
1261233002000 SOLID GEAR 2.GSOLID GEAR 2.G
-
130625062040 BALL BEARING 6204 DU J1 C3BALL BEARING 6204 DU J1 C3
-
1460033040015 STOP DISK 20,2X28X1,5STOP DISK 20,2X28X1,5
-
1460033040016 STOP DISK 20,2/28/1,6STOP DISK 20,2/28/1,6
-
1460033040017 STOP DISK 20,2/28/1,7STOP DISK 20,2/28/1,7
-
1460033040018 STOP DISK 20,2/28/1,8STOP DISK 20,2/28/1,8
-
1460033040019 STOP DISK 20,2/28/1,9STOP DISK 20,2/28/1,9
-
1460033040020 STOP DISK 20,2/28/2,0STOP DISK 20,2/28/2,0
-
1460033040021 STOP DISK 20,2/28/2,1STOP DISK 20,2/28/2,1
-
1460033040022 STOP DISK 20,2/28/2,2STOP DISK 20,2/28/2,2
