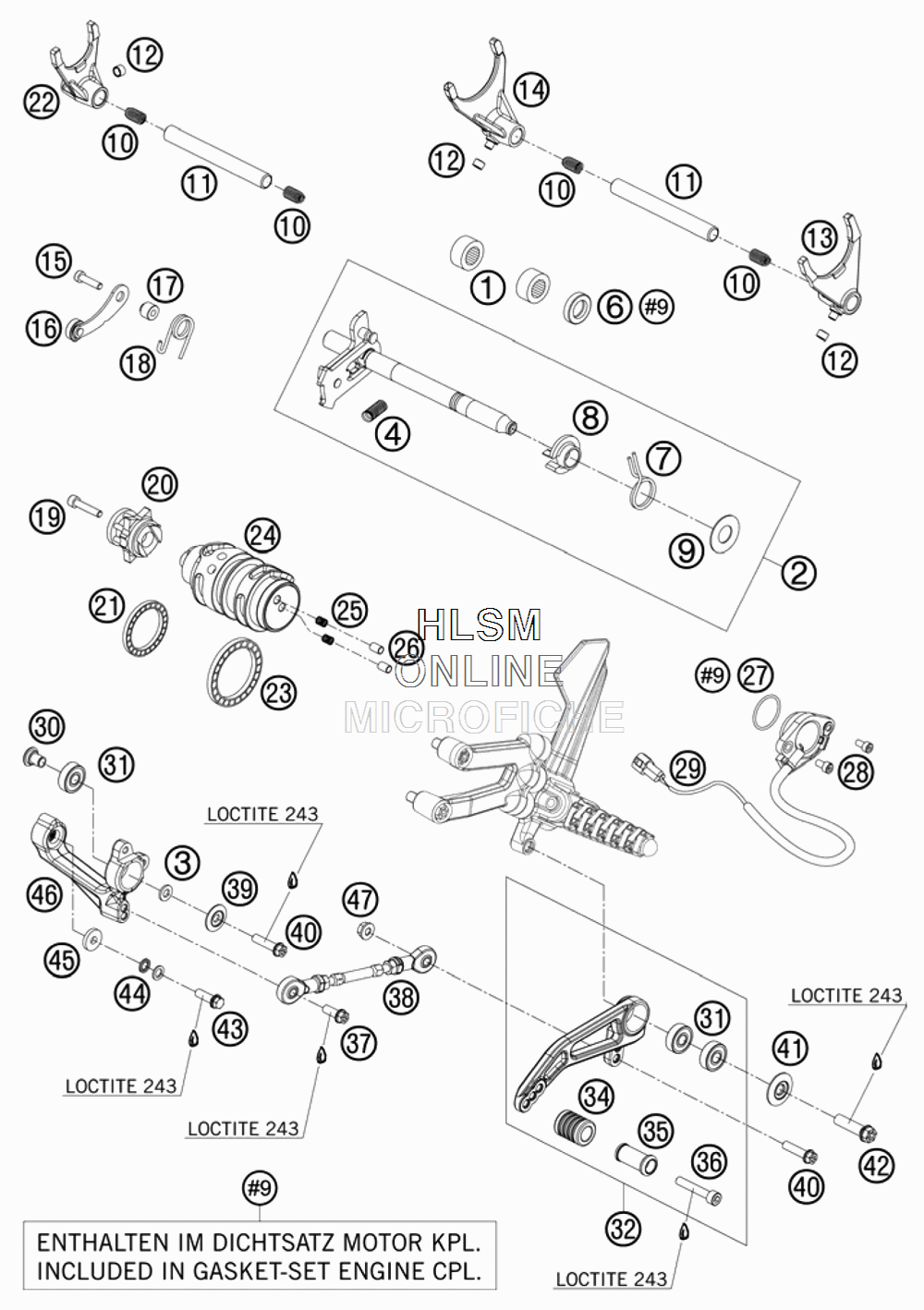

SHIFTING MECHANISM для Ktm 1190 RC8 (WHITE) - 2010 года выпуска
-
№АртикулНазвание
-
154632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
2*61234005244 SHIFT SHAFT CPL.SHIFT SHAFT CPL.
-
30125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
456534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
60760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
761234014000 RETURNSPRING 2MMRETURNSPRING 2MM
-
854634020000 SPRING GUIDESPRING GUIDE
-
954634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
1058038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
1159034020000 SHIFT RAIL 11,8X105MMSHIFT RAIL 11,8X105MM
-
1250334018100 SHIFTING ROLLER 6X8X5,2SHIFTING ROLLER 6X8X5,2
-
1361234002000 SHIFTING FORKSHIFTING FORK
-
1461234001000 SHIFTING FORKSHIFTING FORK
-
150024060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
1675034024044 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
1775034052000 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
1861234023000 SPRING - LOCKING LEVERSPRING - LOCKING LEVER
-
190912060303 AH SCREW DIN0912-M 6X30AH SCREW DIN0912-M 6X30
-
2061234015144 SHIFT DRUM LOCATING CPL.SHIFT DRUM LOCATING CPL.
-
210625618052 BALL BEARING 6805 C3 JRBALL BEARING 6805 C3 JR
-
2261234003000 SHIFTING FORKSHIFTING FORK
-
230625068080 GROOVED BALL BEARING 6808 JRC3GROOVED BALL BEARING 6808 JRC3
-
2461234012100 SHIFT ROLLER CPL.SHIFT ROLLER CPL.
-
2560034014000 CONTACT SPRINGCONTACT SPRING
-
2660034037000 CONTACT BOLTCONTACT BOLT
-
270770275025 O-RING 27,5X2,5 NBRO-RING 27,5X2,5 NBR
-
280912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
2960011023100 GEAR-POSITION SENSORGEAR-POSITION SENSOR
-
3069034040100 COLLAR BUSHINGCOLLAR BUSHING
-
310625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
326903403114401S SHIFTING LEVER CPL.SHIFTING LEVER CPL.
-
3461034035000 RUBBER FOR SHIFT LEVERRUBBER FOR SHIFT LEVER
-
3569034032100 GEAR LEVERGEAR LEVER
-
360912060453 AH SCREW DIN0912-M 6X45AH SCREW DIN0912-M 6X45
-
370025060166S HH COLLAR SCREW M6X16 ISA 30HH COLLAR SCREW M6X16 ISA 30
-
3869034036044 SHIFT ROD CPL.SHIFT ROD CPL.
-
3969034041000 SPECIAL WASHER 6,4X21,4X2,6SPECIAL WASHER 6,4X21,4X2,6
-
400025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
416900303801001 SPECIAL WASHER D=26X3 ALU ELO.SPECIAL WASHER D=26X3 ALU ELO.
-
420025080306S HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
4359009062019 SPECIAL SCREW M6X19 WS=8 10.9SPECIAL SCREW M6X19 WS=8 10.9
-
4450233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
4550232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
466903403000033S RELAY LEVER SHIFT. SHAFT BLACKRELAY LEVER SHIFT. SHAFT BLACK
-
4756509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
