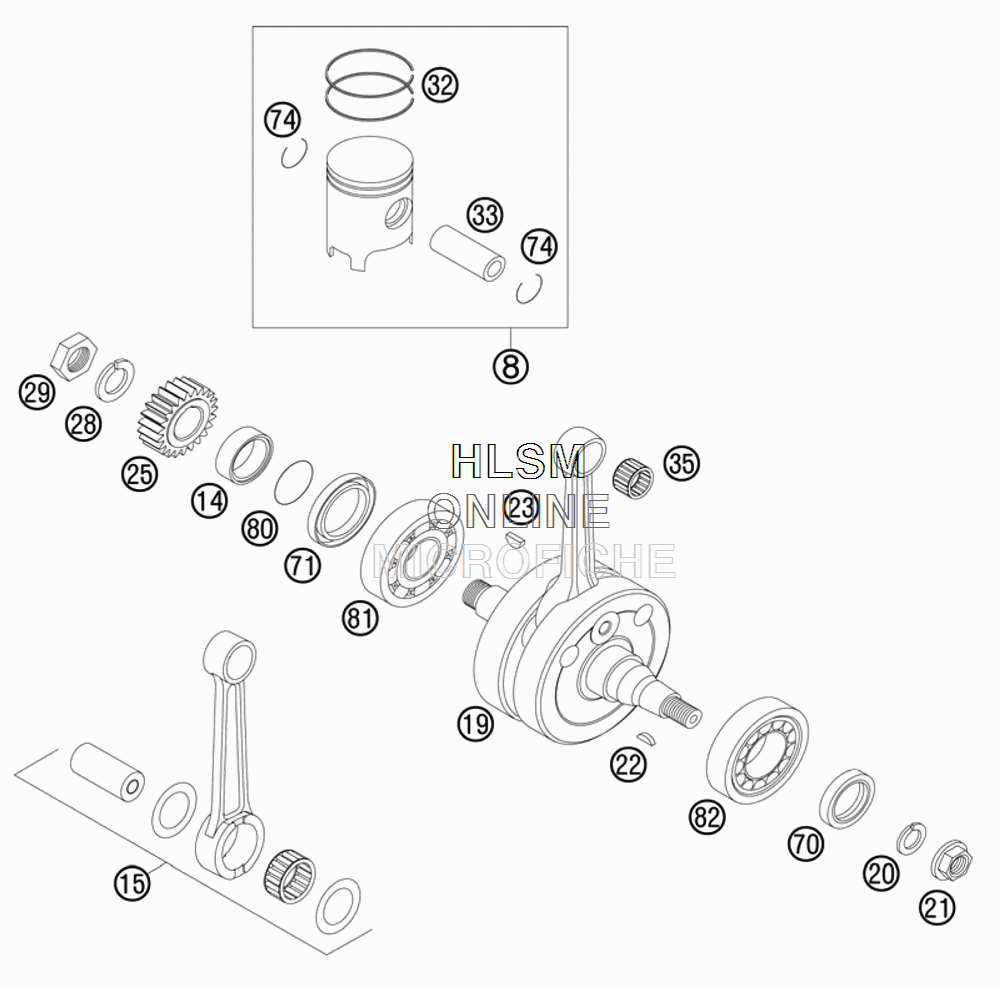

CRANKSHAFT PISTON для Ktm 200 XC-W - 2010 года выпуска

№

Артикул

Название
8

52330007300I PISTON I CPL. 64MM 200

PISTON I CPL. 64MM 200

67 520 ₽
8

52330007300II PISTON II CPL. 64MM 200

PISTON II CPL. 64MM 200

67 900 ₽
14

54633014100 SPACER BUSHING 12MM

SPACER BUSHING 12MM

5 140 ₽
15

52330015100 CON.ROD REPAIR KIT

CON.ROD REPAIR KIT

92 630 ₽
19

52330018200 CRANKSHAFT CPL. 200 EXC

CRANKSHAFT CPL. 200 EXC

138 450 ₽
20

50230029012 LOCKING RING VSK 12

LOCKING RING VSK 12

290 ₽
21

49030021000 COLLAR NUT M12X1 R/S

COLLAR NUT M12X1 R/S

2 660 ₽
22

0888030050 WOODRUFF KEY DIN6888-3X5X13

WOODRUFF KEY DIN6888-3X5X13

290 ₽
23

6946005 WOODRUFF KEY 5X6,5 HARDED

WOODRUFF KEY 5X6,5 HARDED

290 ₽
25

50332023123 PRIMARY PINION 23-T

PRIMARY PINION 23-T

17 910 ₽
28

50230029016 LOCKING RING VSK 16

LOCKING RING VSK 16

350 ₽
29

50330029000 HEXAGON NUT M 16 X 1,5 - L/S

HEXAGON NUT M 16 X 1,5 - L/S

1 870 ₽
32

52330032100 SQUARE RING 64X1

SQUARE RING 64X1

10 100 ₽
33

52330033100 PISTON PIN 11X16X46

PISTON PIN 11X16X46

7 920 ₽
35

52330034000 NEEDLE BEARING KV16X20X20 FN

NEEDLE BEARING KV16X20X20 FN

3 660 ₽
70

0760253570 SHAFT SEAL RING 25X35X7 BTSL

SHAFT SEAL RING 25X35X7 BTSL

4 650 ₽
71

0760324564 SHAFT SEAL RING 32X45X6,5 BT

SHAFT SEAL RING 32X45X6,5 BT

5 780 ₽
74

52330074100 WIRE LOCK RING 16X1,2

WIRE LOCK RING 16X1,2

290 ₽
80

0770250020 O-RING 25,00X2,00 NBR

O-RING 25,00X2,00 NBR

560 ₽
81

0625063055 BALL BEARING 6305 JR2 CS36

BALL BEARING 6305 JR2 CS36

11 660 ₽
82

50330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46

CYL.ROLLER BEAR.NJ206 ET2XCS46

22 490 ₽
