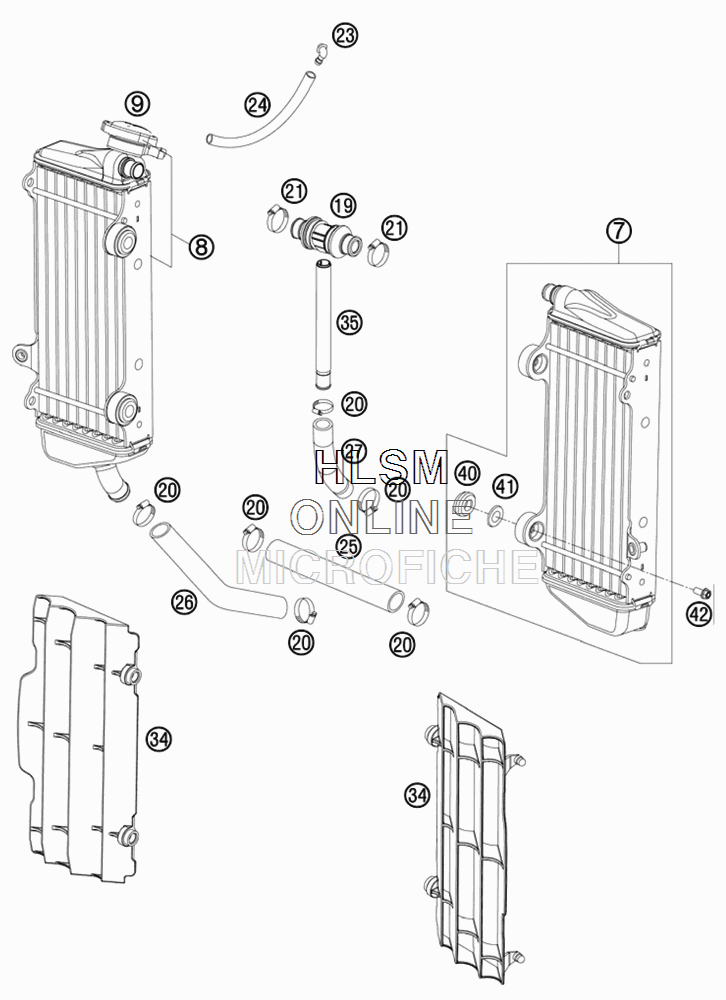

COOLING SYSTEM для Ktm 250 SX - 2010 года выпуска
-
№АртикулНазвание
-
754835007200 RADIATOR LEFT "VW1595"RADIATOR LEFT "VW1595"
-
8*54835008300 RADIATOR RIGHT 45620URADIATOR RIGHT 45620U
-
9*77335016000 RADIATOR CAP SMALL 1,8 BARRADIATOR CAP SMALL 1,8 BAR
-
1977335026000 T-CONNECTOR CPL.T-CONNECTOR CPL.
-
2010001020000 HOSE CLAMP GEMI 16-27HOSE CLAMP GEMI 16-27
-
2142013037400 HOSE CLAMP NORMA 12/24HOSE CLAMP NORMA 12/24
-
2350303089000 ANGEL PIECEANGEL PIECE
-
2431007107001 PVC-HOSE 6X9 MM PER METERPVC-HOSE 6X9 MM PER METER
-
2556535025001 RADIATOR HOSE 18X25 PER METRERADIATOR HOSE 18X25 PER METRE
-
2654835125000 PREFORMED HOSE ENG.-RAD.PREFORMED HOSE ENG.-RAD.
-
2754835027000 RADIATOR HOSE 18X25X130 MMRADIATOR HOSE 18X25X130 MM
-
347733503400030 RADIATOR PROTECTION BLACKRADIATOR PROTECTION BLACK
-
3554835072000 HOSE CONNECTOR 2 STROKEHOSE CONNECTOR 2 STROKE
-
4041001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
4177335001000 WASHER FOR RADIATORWASHER FOR RADIATOR
-
420023060123 COLLAR SCREW M6X12 TXCOLLAR SCREW M6X12 TX
