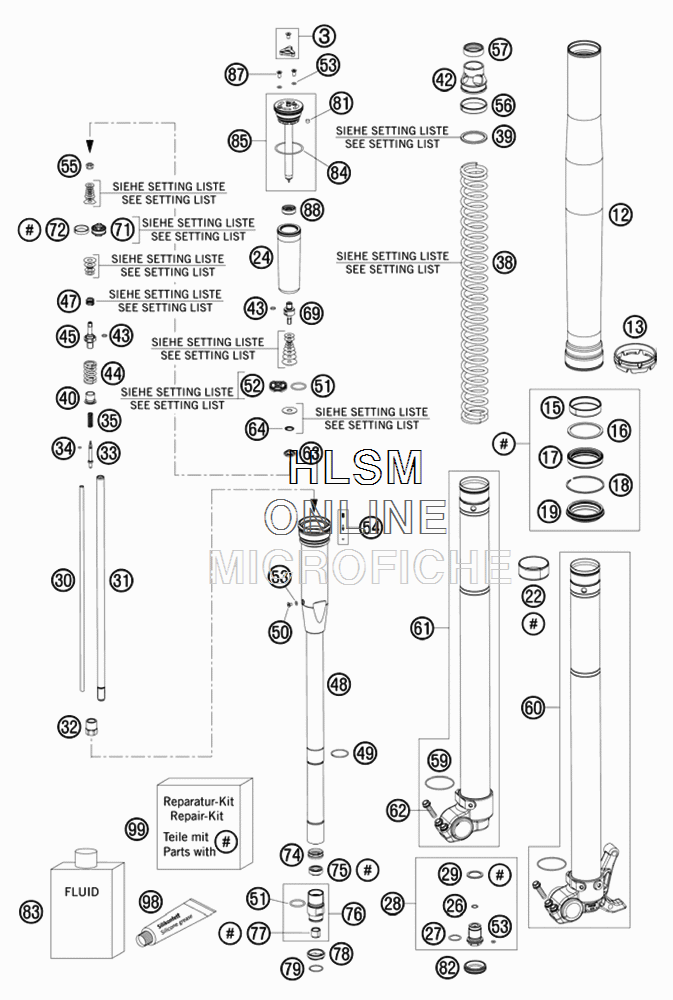

FRONT FORK DISASSEMBLED для Ktm 250 XC - 2010 года выпуска

№

Артикул

Название
3

48600811S ADJUSTING KNOB + SCREW

ADJUSTING KNOB + SCREW

900 ₽
12

48600736 OUTER TUBE L577 D54/60MM 2L

OUTER TUBE L577 D54/60MM 2L

121 280 ₽
13

48600698 FORK PROTECTION RING

FORK PROTECTION RING

2 140 ₽
15

48600429 DU-BUSH D48XD52X12DDL02

DU-BUSH D48XD52X12DDL02

3 240 ₽
16

48600013 SUPPORT RING 50 X 57,6 X 1,5

SUPPORT RING 50 X 57,6 X 1,5

610 ₽
17

48600347 OIL SEAL RING 48X57,8X9,5

OIL SEAL RING 48X57,8X9,5

5 140 ₽
18

48600070 LOCK WASHER SB58

LOCK WASHER SB58

350 ₽
19*

48600816 DUST SEAL

DUST SEAL

4 590 ₽
22

48600428 DU-BUSH D47XD49X20DDL02

DU-BUSH D47XD49X20DDL02

3 240 ₽
24

48600281 MEMBRANE

MEMBRANE

13 790 ₽
26

48600301 O-RING NBR 9,5X1,5

O-RING NBR 9,5X1,5

140 ₽
27

46810811 O-RING NBR 17X2 PA

O-RING NBR 17X2 PA

190 ₽
28

48600280S SCREW BUSH M20X1 L=33 CPL.

SCREW BUSH M20X1 L=33 CPL.

14 710 ₽
29

48600275 COPPER WASHER 20,5X26X1

COPPER WASHER 20,5X26X1

380 ₽
30

48600269 ADJUSTING TUBE L=371

ADJUSTING TUBE L=371

4 960 ₽
31

48600464 PISTON ROD SXS

PISTON ROD SXS

35 420 ₽
32

48600459 COUNTERNUT M12X1 WS17

COUNTERNUT M12X1 WS17

2 470 ₽
33*

48600887 REBOUND NEEDLE SX

REBOUND NEEDLE SX

1 240 ₽
34

48600298 O-RING 2X1,5 NBR

O-RING 2X1,5 NBR

60 ₽
35

48600444 REBOUND SPRING C=4N/MM

REBOUND SPRING C=4N/MM

620 ₽
38

91410027S SPRING 4,4 N/MM SET D=5,1MM

SPRING 4,4 N/MM SET D=5,1MM

39 430 ₽
38

91410028S SPRING 4,6 N/MM SET D=5,1MM

SPRING 4,6 N/MM SET D=5,1MM

39 430 ₽
38

91410029S POLISHED SPRING 4,8 N/MM

POLISHED SPRING 4,8 N/MM

39 430 ₽
38

91410030S SPRING 5,0 N/MM

SPRING 5,0 N/MM

39 430 ₽
38

91410059S SPRING 4,0 N/MM SET

SPRING 4,0 N/MM SET

39 430 ₽
38

91410060S SPRING 4,2 N/MM SET D=5,0MM

SPRING 4,2 N/MM SET D=5,0MM

39 430 ₽
39

48600456 SPACER 43X35X2,5

SPACER 43X35X2,5

440 ₽
39

48600457 SPACER 43X35X5

SPACER 43X35X5

440 ₽
39

48600458 SPACER 43X35X1,5

SPACER 43X35X1,5

440 ₽
40

48600525 GUIDING BUSH REBOUND SPRING

GUIDING BUSH REBOUND SPRING

310 ₽
42

48600520 SPRING SUPPORT

SPRING SUPPORT

18 070 ₽
43

48600299 O-RING 6X1,2 NBR

O-RING 6X1,2 NBR

30 ₽
44

48600578 SPRING REB. L=32 C=37 DI=13,9

SPRING REB. L=32 C=37 DI=13,9

440 ₽
45

48600576 PISTON ROD REBOUND

PISTON ROD REBOUND

2 230 ₽
47

48600382 SHUTTLE VALVE SPRING C=0,4

SHUTTLE VALVE SPRING C=0,4

370 ₽
48

48600519S3 MEMBRANE HOLDER

MEMBRANE HOLDER

58 780 ₽
49

48600512 LOCK WASHER D=25,5

LOCK WASHER D=25,5

1 360 ₽
50

48600542 AH SCREW M4X6

AH SCREW M4X6

500 ₽
51

46811499 O-RING NBR 21X2

O-RING NBR 21X2

60 ₽
52

48600047 PISTON COMPRESSION D=27,9

PISTON COMPRESSION D=27,9

2 250 ₽
53

50180222 O-RING NBR 4X1,5

O-RING NBR 4X1,5

60 ₽
54

48600518S PIN VALVE SET

PIN VALVE SET

0 ₽
55

40540486 NUT M6X0,5 REBOUND

NUT M6X0,5 REBOUND

920 ₽
56

48600744 GUIDE RING 44 X39

GUIDE RING 44 X39

220 ₽
57

48600577 RING SPRING-SUPPORT

RING SPRING-SUPPORT

1 240 ₽
59

48600113 WASHER 32X42X2,5

WASHER 32X42X2,5

3 010 ₽
60*

48600863SA AXLE CLAMP LEFT + TUBE CPL.

AXLE CLAMP LEFT + TUBE CPL.

170 ₽
61*

48600864SA AXLE CLAMP RIGHT + TUBE CPL.

AXLE CLAMP RIGHT + TUBE CPL.

147 830 ₽
62

25080256 HH COLLAR SCREW M8X25 TX40

HH COLLAR SCREW M8X25 TX40

0 ₽
63*

48600885 NUT VALVE M6X0,5 LH=1,2

NUT VALVE M6X0,5 LH=1,2

1 380 ₽
64

48600202 SPRING CHECK VALVE D=0,7

SPRING CHECK VALVE D=0,7

310 ₽
69

48600509 PISTON ROD COMPRESSION

PISTON ROD COMPRESSION

2 370 ₽
71

48600575 PISTON REBOUND SX

PISTON REBOUND SX

3 400 ₽
72

48600455 PISTON RING 5X1X68

PISTON RING 5X1X68

3 790 ₽
74

48600296 RING D=23,45X2,65

RING D=23,45X2,65

3 040 ₽
75*

48600829 SHAFT SEAL RING 12MM

SHAFT SEAL RING 12MM

1 400 ₽
76*

48600760S SCREW SLEEVE M24,5X1 CPL

SCREW SLEEVE M24,5X1 CPL

5 580 ₽
77

48600430 DU BUSH FOR PISTON ROD

DU BUSH FOR PISTON ROD

1 620 ₽
78

48600709 CHECK VALVE STOP

CHECK VALVE STOP

4 870 ₽
79

48600446 LOCK WASHER D=20

LOCK WASHER D=20

310 ₽
81

15080017 SILICON CAP

SILICON CAP

1 350 ₽
82

48600692 RUBBER CAP D=26,4

RUBBER CAP D=26,4

630 ₽
83

48600765S1 FORK OIL SAE5 5L

FORK OIL SAE5 5L

47 770 ₽
84

40140024 O-RING NBR 43X2

O-RING NBR 43X2

900 ₽
85

48600516S1 SCREW CAP CPL. L=125

SCREW CAP CPL. L=125

27 720 ₽
87

48600526 SCREW M4X10

SCREW M4X10

410 ₽
88

48600514 MEMBRANE SLEEVE

MEMBRANE SLEEVE

2 710 ₽
98

T511 SILICONE GREASE F. DUST STRI

SILICONE GREASE F. DUST STRI

5 410 ₽
99*

R14018 REPAIR KIT SEALS CC

REPAIR KIT SEALS CC

37 130 ₽
