SWING ARM для Ktm 450 XC-W Six Days - 2010 года выпуска
-

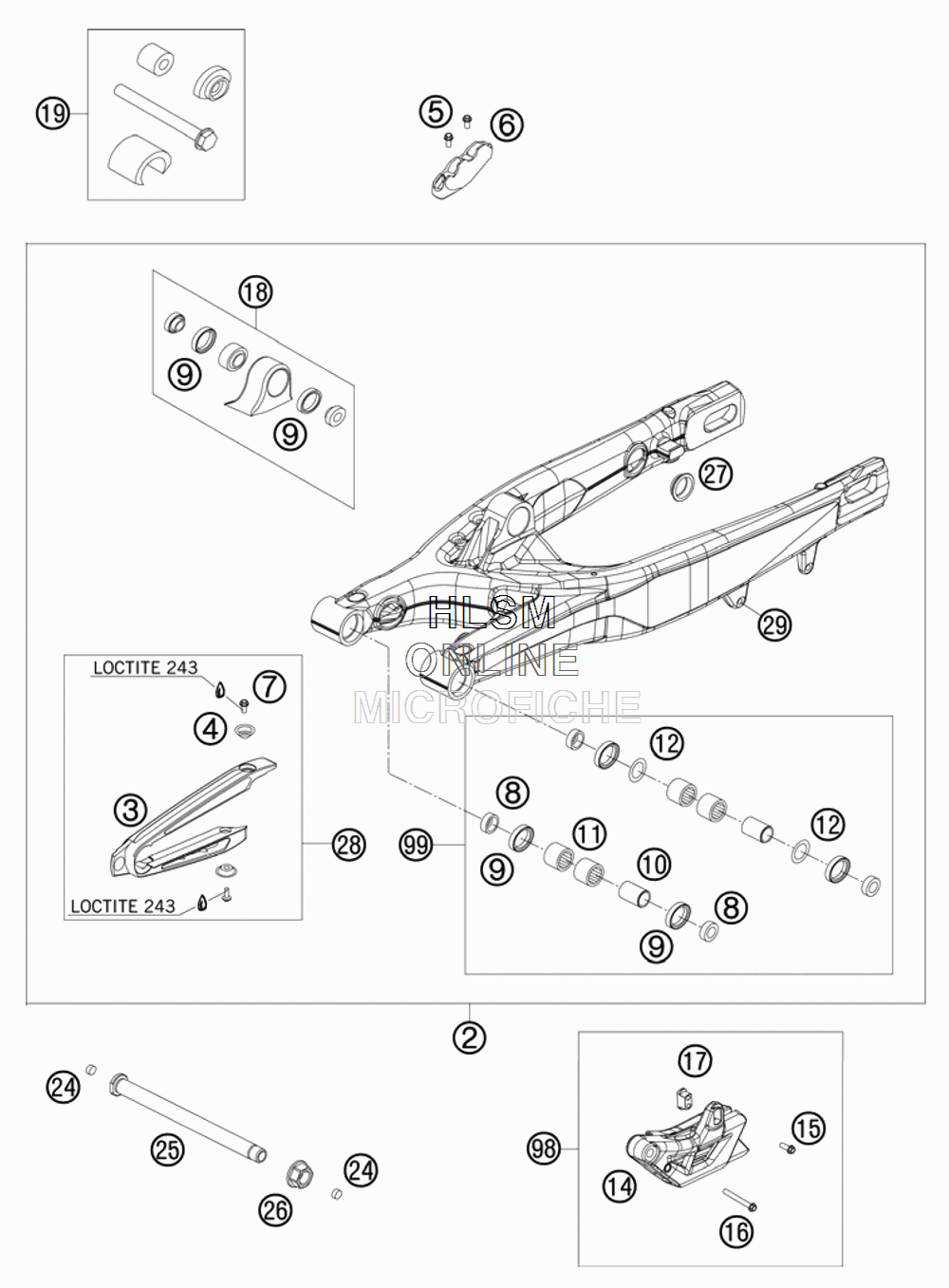

№АртикулНазвание
-
278004030144 SWING ARM CPL.SWING ARM CPL.
-
377304066000 CHAIN SLIDING PROTECTIONCHAIN SLIDING PROTECTION
-
477304066050 BUSHING F. CHAIN SLIDING PR.BUSHING F. CHAIN SLIDING PR.
-
50009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
677313047000 BRAKE HOSE GUIDE LOWERBRAKE HOSE GUIDE LOWER
-
759009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
854804034000 BUCKET F. SHAFT SEAL RINGBUCKET F. SHAFT SEAL RING
-
90760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
1059404032000 BEARING SLEEVE 17X22X38,7BEARING SLEEVE 17X22X38,7
-
1159004031100 NEEDLE BEARING HK2212VNEEDLE BEARING HK2212V
-
1254603036000 STOP DISK 22,2X31,7X1STOP DISK 22,2X31,7X1
-
1478004070000 CHAIN GUIDE CPL.CHAIN GUIDE CPL.
-
1559009062019 SPECIAL SCREW M6X19 WS=8 10.9SPECIAL SCREW M6X19 WS=8 10.9
-
160025060456 HH COLLAR SCREW M6X45 TX30HH COLLAR SCREW M6X45 TX30
-
1777304070030 INSERTION NUT F. CHAIN GUIDEINSERTION NUT F. CHAIN GUIDE
-
1850304090044 PIVOT BEARING+BUSHES PDSPIVOT BEARING+BUSHES PDS
-
1950329000044 TOOL BEARING MOUNTING PDSTOOL BEARING MOUNTING PDS
-
2455009086000 PLUG SFL13PLUG SFL13
-
2577304037000 SWINGARM BOLT M16X1,5 07SWINGARM BOLT M16X1,5 07
-
2654804038000 SELF LOCK.NUT M16X1,5 WS=19SELF LOCK.NUT M16X1,5 WS=19
-
2758404041100 CLOSING COVER ROUNDCLOSING COVER ROUND
-
2877304066010 CHAIN GUARD CPL.CHAIN GUARD CPL.
-
2954603055051 PRESS IN NUT M6 STEEL ZINCPRESS IN NUT M6 STEEL ZINC
-
9877304070310 CHAIN GUIDE KIT REARCHAIN GUIDE KIT REAR
-
9959404230110 SWINGARM-REPAIR KITSWINGARM-REPAIR KIT
