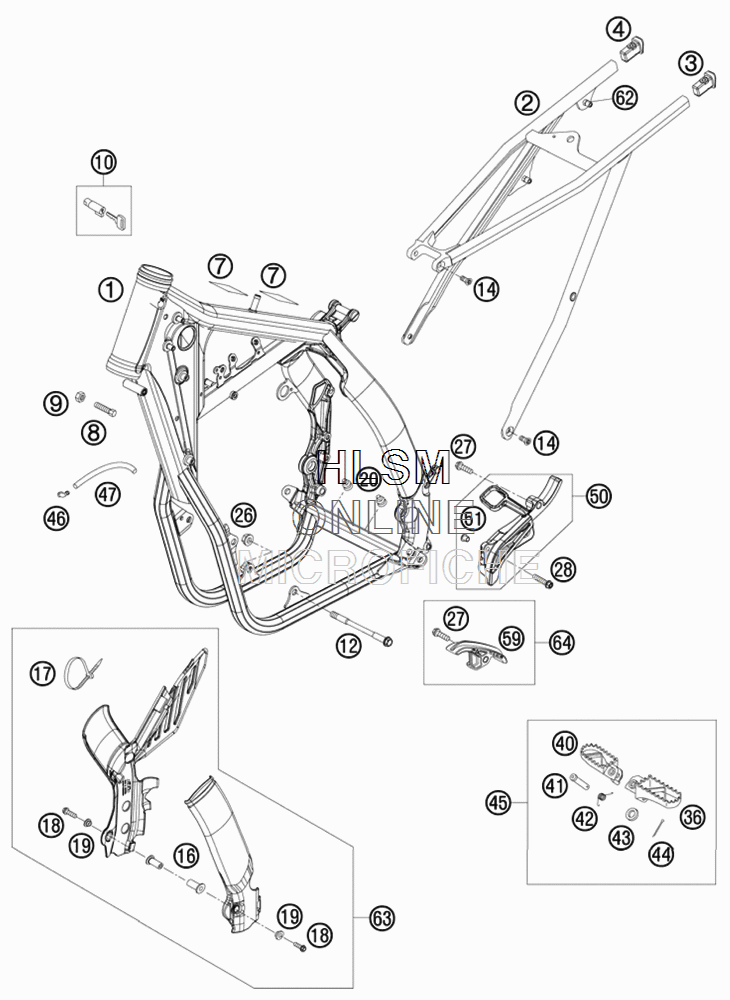

FRAME для Ktm 530 EXC - 2010 года выпуска

№

Артикул

Название
1

7800300130030 FRAME EXC "DC09"

FRAME EXC "DC09"

340 ₽
2

77303002000 SUB FRAME SX "Q7"

SUB FRAME SX "Q7"

95 960 ₽
3

78003002010 SUB FRAME APPLICATION LEFT

SUB FRAME APPLICATION LEFT

0 ₽
4

78003002020 SUB FRAME APPLICATION RIGHT

SUB FRAME APPLICATION RIGHT

0 ₽
7

50307012000 ADH. FOIL TRANSP. 80X80 MM 04

ADH. FOIL TRANSP. 80X80 MM 04

330 ₽
8

59001037000 SPECIAL SCREW M8X26 WS=10

SPECIAL SCREW M8X26 WS=10

560 ₽
9

0934080003 HEXAGON NUT DIN0934-M8

HEXAGON NUT DIN0934-M8

320 ₽
10

78003035000 STEERING HEAD LOCK

STEERING HEAD LOCK

13 410 ₽
12

59003013000 ENGINEBRAC.SCREW M10X123 WS=13

ENGINEBRAC.SCREW M10X123 WS=13

2 160 ₽
14

0019080206S FLAT HEAD SCREW M. ISA45 M8X20

FLAT HEAD SCREW M. ISA45 M8X20

440 ₽
16

54803092050 BLIND PLUG-IN NUT M5 WN 22A 03

BLIND PLUG-IN NUT M5 WN 22A 03

1 170 ₽
17

44011076305 CABLE TIE 300/4,8MM BLACK

CABLE TIE 300/4,8MM BLACK

290 ₽
18

0738050250 COU.SUNK SCR. AH ISO7380 M5X25

COU.SUNK SCR. AH ISO7380 M5X25

270 ₽
19

54803092050 BLIND PLUG-IN NUT M5 WN 22A

BLIND PLUG-IN NUT M5 WN 22A

1 170 ₽
20

54403135000 PLASTIC CAP SFL10

PLASTIC CAP SFL10

380 ₽
26

54310086100 SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

410 ₽
27

0025080306 HH COLLAR SCREW M8X30 TX40

HH COLLAR SCREW M8X30 TX40

700 ₽
28

0025060356 HH COLLAR SCREW M6X35 TX30

HH COLLAR SCREW M6X35 TX30

560 ₽
36

59003040250 FOOT PEG L/S SILVER

FOOT PEG L/S SILVER

11 770 ₽
40

59003041250 FOOT PEG R/S SILVER

FOOT PEG R/S SILVER

11 770 ₽
41

54803044000 BOLT FOR FOOT PED

BOLT FOR FOOT PED

3 330 ₽
42

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
43

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
44

0094032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

290 ₽
45

5030314013390 FOOTPEG L.+R. CPL.

FOOTPEG L.+R. CPL.

45 270 ₽
46

50303089000 ANGEL PIECE

ANGEL PIECE

1 160 ₽
47

78015019000 HOSE EPA D=6/10 L=2000MM

HOSE EPA D=6/10 L=2000MM

16 910 ₽
50

78003096000 CHAIN SPR. COV.

CHAIN SPR. COV.

4 000 ₽
51

58314060050 SPACER BUSH. F. SPEEDOMET.BRA.

SPACER BUSH. F. SPEEDOMET.BRA.

1 260 ₽
59

77303053000 CHAIN SLIDING PIECE BELOW

CHAIN SLIDING PIECE BELOW

2 160 ₽
62

77303139000 BLIND RIVET NUT EM6-60LF/HX

BLIND RIVET NUT EM6-60LF/HX

880 ₽
63

77303094100 PLASTIC FRAME PROTECTION SET

PLASTIC FRAME PROTECTION SET

7 840 ₽
64

77303053010 CHAIN SLIDING P. BELOW CPL.

CHAIN SLIDING P. BELOW CPL.

2 640 ₽
