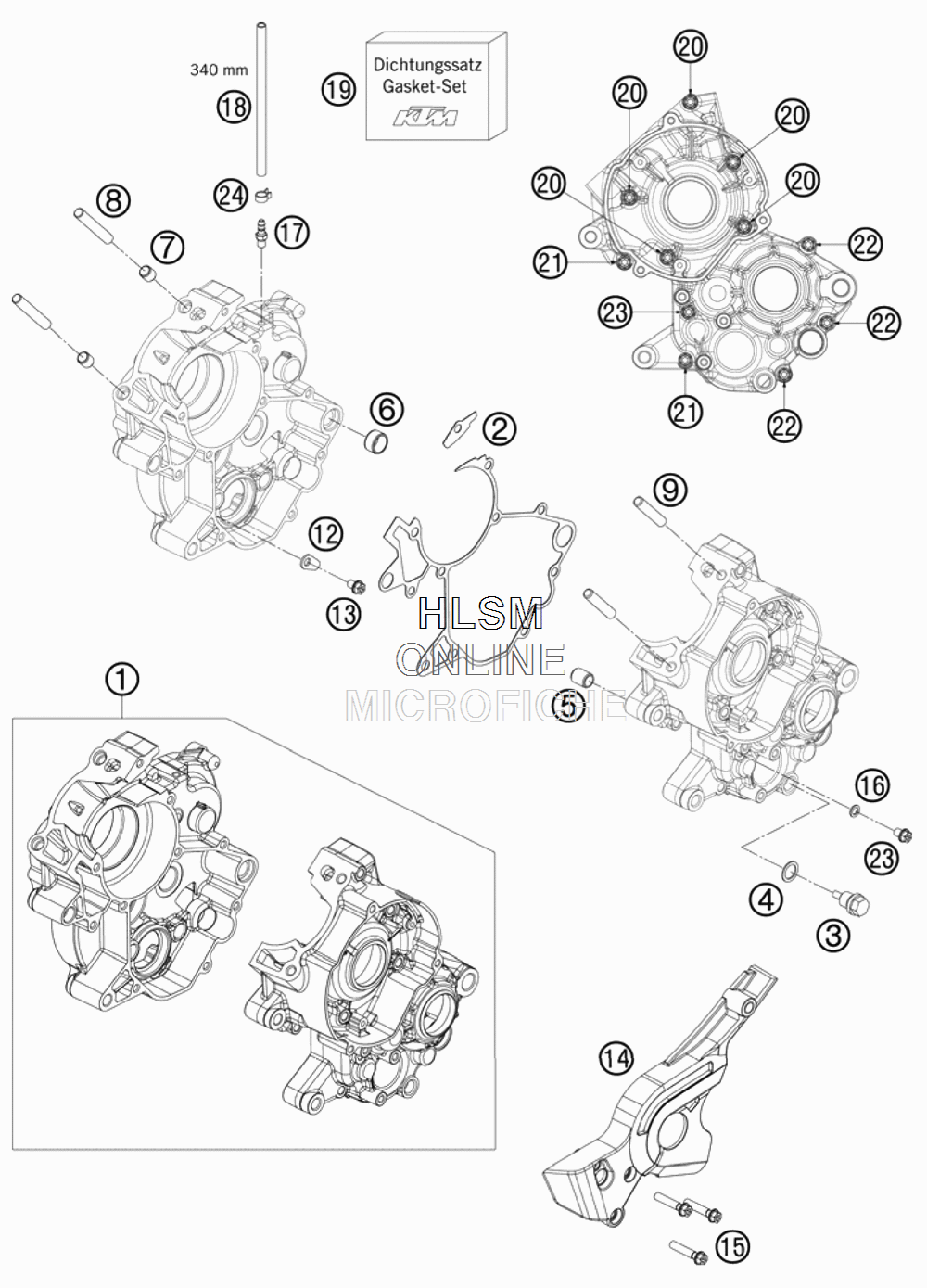

ENGINE CASE для Ktm 65 SX - 2010 года выпуска
-
№АртикулНазвание
-
1*46230000244 ENGINE CASE CPL. + CONTR.SLIDEENGINE CASE CPL. + CONTR.SLIDE
-
246230039000 ENGINE CASE GASKETENGINE CASE GASKET
-
358030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
458038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
546230024000 DOWEL 12X9X14,5DOWEL 12X9X14,5
-
658330023000 DOWEL 17 X 14 X 9,5DOWEL 17 X 14 X 9,5
-
7*46230123000 DOWEL 17/12.1/9.5DOWEL 17/12.1/9.5
-
80835080355 STUD DIN0835-M 8X35STUD DIN0835-M 8X35
-
946030043000 STUD M8X41STUD M8X41
-
1254634049000 RETAINING PLATERETAINING PLATE
-
130025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
1446230060000 CHAIN SPROCKET GUARDCHAIN SPROCKET GUARD
-
150025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
160603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
1758336020190 VACUUM CONECTION M6/3MMVACUUM CONECTION M6/3MM
-
1831007007101 PVC-HOSE 4X6MMPVC-HOSE 4X6MM
-
1946230099000 GASKET SET 65 SXGASKET SET 65 SX
-
200025060556 HH COLLAR SCREW M6X55HH COLLAR SCREW M6X55
-
210025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
-
220025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
230025060086 HH COLLAR SCREW M6X8HH COLLAR SCREW M6X8
-
2445230089000 YDNAC-CLAMP068 (6,8MM)YDNAC-CLAMP068 (6,8MM)
