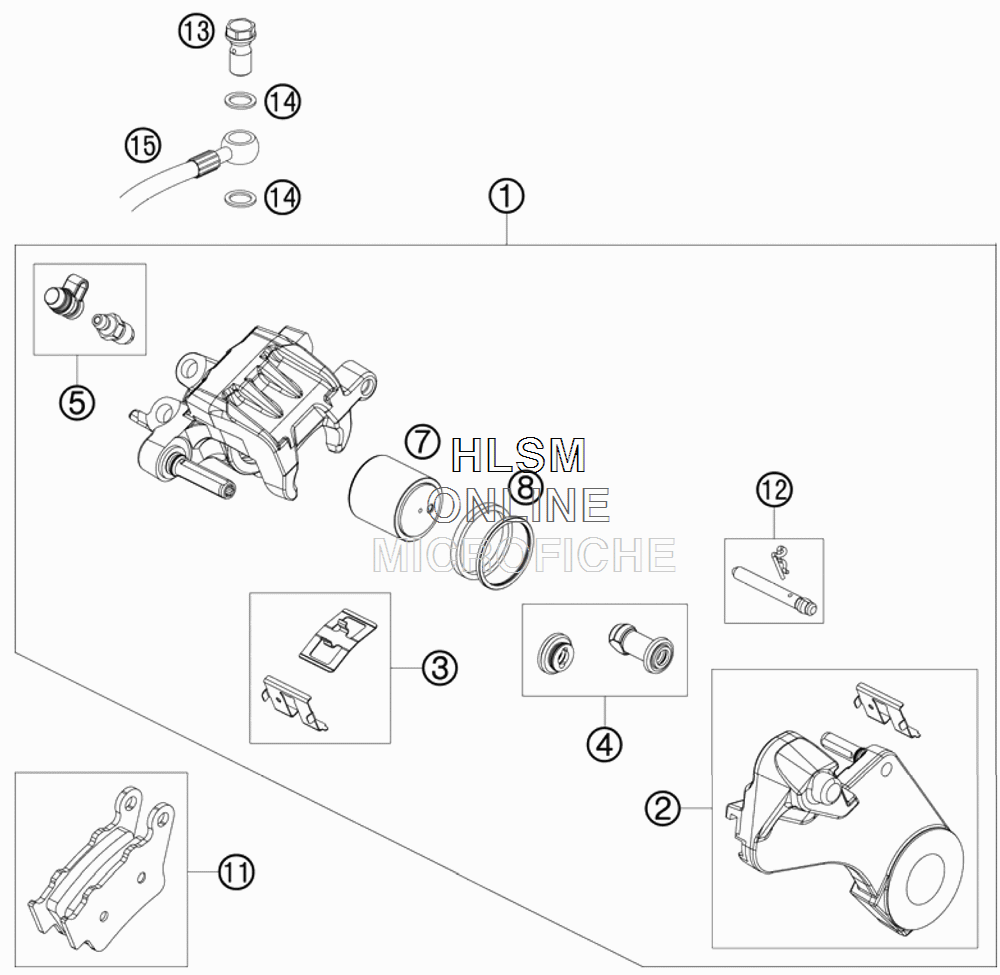

BRAKE CALIPER REAR для Ktm 690 SMC - 2010 года выпуска
-
№АртикулНазвание
-
17651308000101 BRAKE CALIPER - WITHOUT PADSBRAKE CALIPER - WITHOUT PADS
-
276513075000 BRAKE CALIPER SUPPORT REARBRAKE CALIPER SUPPORT REAR
-
354613311200 RETAINING SPRING SETRETAINING SPRING SET
-
454613218000 CUP SET SHORTCUP SET SHORT
-
561013020200 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
750313083000 BRAKE PISTON 32MMBRAKE PISTON 32MM
-
850313081000 REPAIR KIT SEALING RINGS 32MMREPAIR KIT SEALING RINGS 32MM
-
1175013090000 BRAKE PAD SET REAR SBS-S-40GFBRAKE PAD SET REAR SBS-S-40GF
-
1261013082000 BOLT SETBOLT SET
-
1354813020100 HOLLOW SCREW BLACK M10X1X19HOLLOW SCREW BLACK M10X1X19
-
140603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
1576513072000 BRAKE HOSE REAR 805MMBRAKE HOSE REAR 805MM
