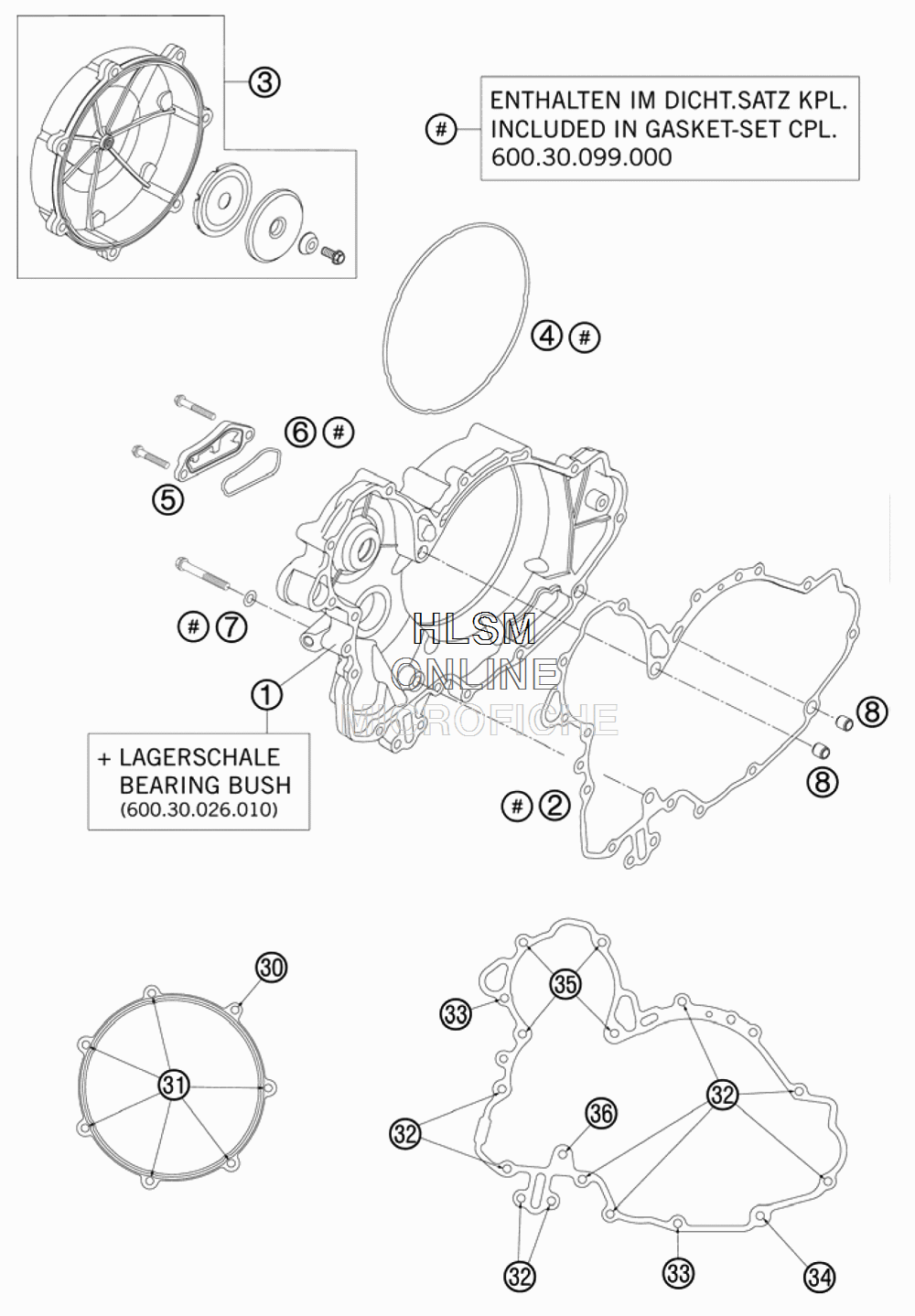

CLUTCH COVER для Ktm 990 SUPERMOTO T ORANGE - 2010 года выпуска
-
№АртикулНазвание
-
16003000114423 CLUTCH COVERCLUTCH COVER
-
260030025000 CLUT.COV. GASK. INSIDE KLI.SILCLUT.COV. GASK. INSIDE KLI.SIL
-
36003012614423 CLUTCH OUTSIDE COVER CPL.CLUTCH OUTSIDE COVER CPL.
-
460030027000 GASKET RING CLUTCH 2X3,1 VAMACGASKET RING CLUTCH 2X3,1 VAMAC
-
560030012100 CLOS. COVER OIL SCR. MILLEDCLOS. COVER OIL SCR. MILLED
-
660030012050 MOLDED RING 1,8X2,5 VAMACMOLDED RING 1,8X2,5 VAMAC
-
70603082131 COPPER GASK.DIN7603- 8,2X13X1COPPER GASK.DIN7603- 8,2X13X1
-
849030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
300025060856 HH COLLAR SCREW M6X85 TX30HH COLLAR SCREW M6X85 TX30
-
310025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
320025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
330025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
340025060406 HH COLLAR SCREW M6X40 TX30HH COLLAR SCREW M6X40 TX30
-
350025060606 HH COLLAR SCREW M6X60 TX30HH COLLAR SCREW M6X60 TX30
-
360025080606 HH COLLAR SCREW M8X60 TX40HH COLLAR SCREW M8X60 TX40
