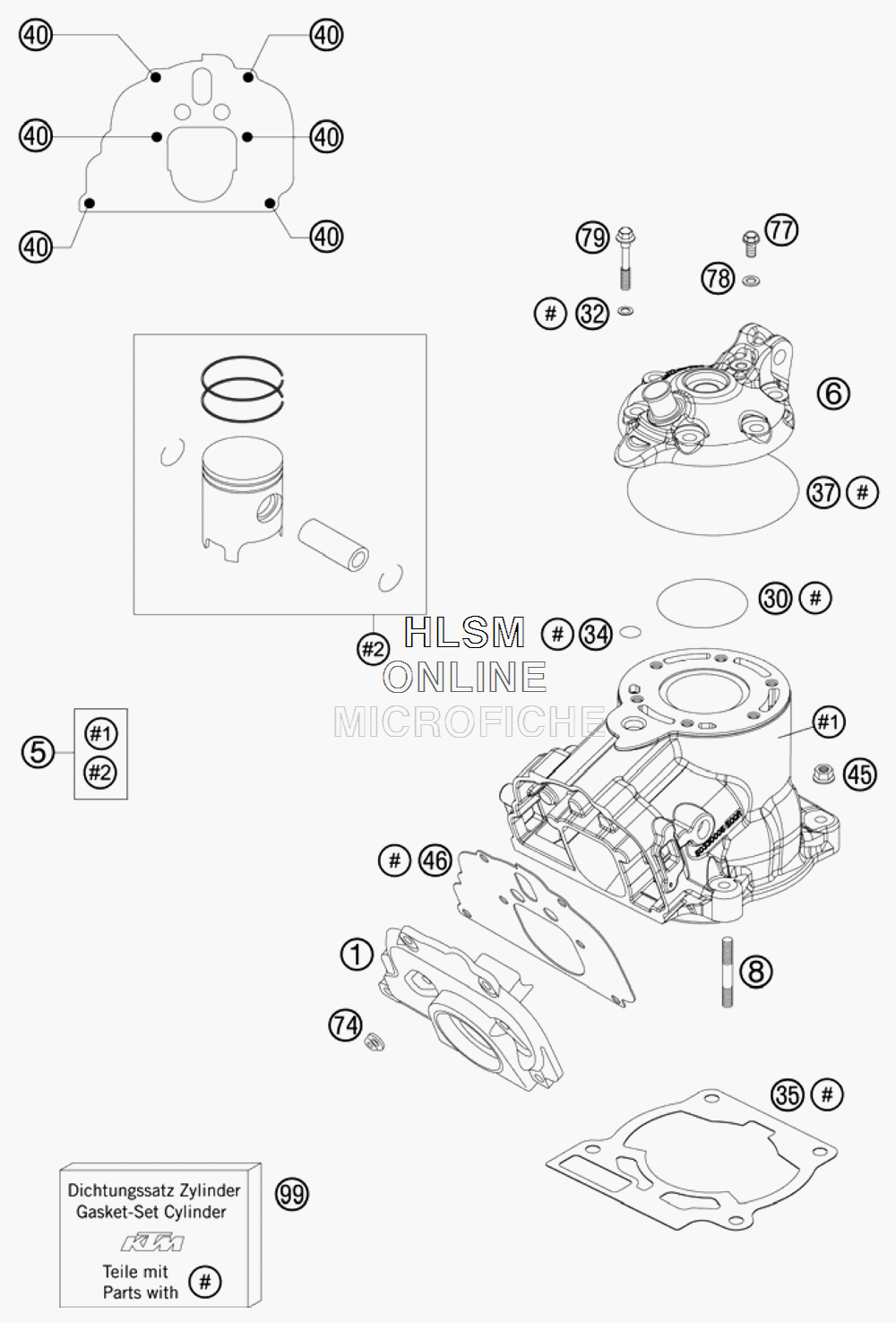

CYLINDER CYLINDER HEAD для Ktm 150 SX - 2011 года выпуска
-
№АртикулНазвание
-
150337001200 INTERMEDIATE FLANGE 125INTERMEDIATE FLANGE 125
-
551530038100 CYLINDER AND PISTONCYLINDER AND PISTON
-
6*51530006200 CYLINDER HEAD 150CYLINDER HEAD 150
-
80835080276 STUD DIN0835-M 8X27STUD DIN0835-M 8X27
-
300770062020 O-RING 62,00X2,00 VITONO-RING 62,00X2,00 VITON
-
320603070121 CU-SEAL RING DIN7603- 7,3X12X1CU-SEAL RING DIN7603- 7,3X12X1
-
340770012021 O-RING 12X2 VITON GREENO-RING 12X2 VITON GREEN
-
3550330035020 CYLINDER BASE GASKET 0,20MMCYLINDER BASE GASKET 0,20MM
-
3550330035025 CYLINDER BASE GASKET 0,25MMCYLINDER BASE GASKET 0,25MM
-
3550330035040 CYLINDER BASE GASKET 0,40MMCYLINDER BASE GASKET 0,40MM
-
3550330035050 CYLINDER BASE GASKET 0,50MMCYLINDER BASE GASKET 0,50MM
-
3550330035075 CYLINDER BASE GASKET 0,75MMCYLINDER BASE GASKET 0,75MM
-
370770086020 O-RING 86X2 VITON75SHORE GREENO-RING 86X2 VITON75SHORE GREEN
-
400014050203 HH COLLAR SCREW M 5X20 WS=6HH COLLAR SCREW M 5X20 WS=6
-
4550330045000 HH COLLAR NUT M 8 WS=12HH COLLAR NUT M 8 WS=12
-
4650337046200 INTERMED. GASKETINTERMED. GASKET
-
7451005074000 RETAINING PLATERETAINING PLATE
-
770025060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
780603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
7950330079000 CYL. HEAD BOLT M 7X30 WS=10CYL. HEAD BOLT M 7X30 WS=10
-
9950330097100 CYLINDER GASKET SETCYLINDER GASKET SET
