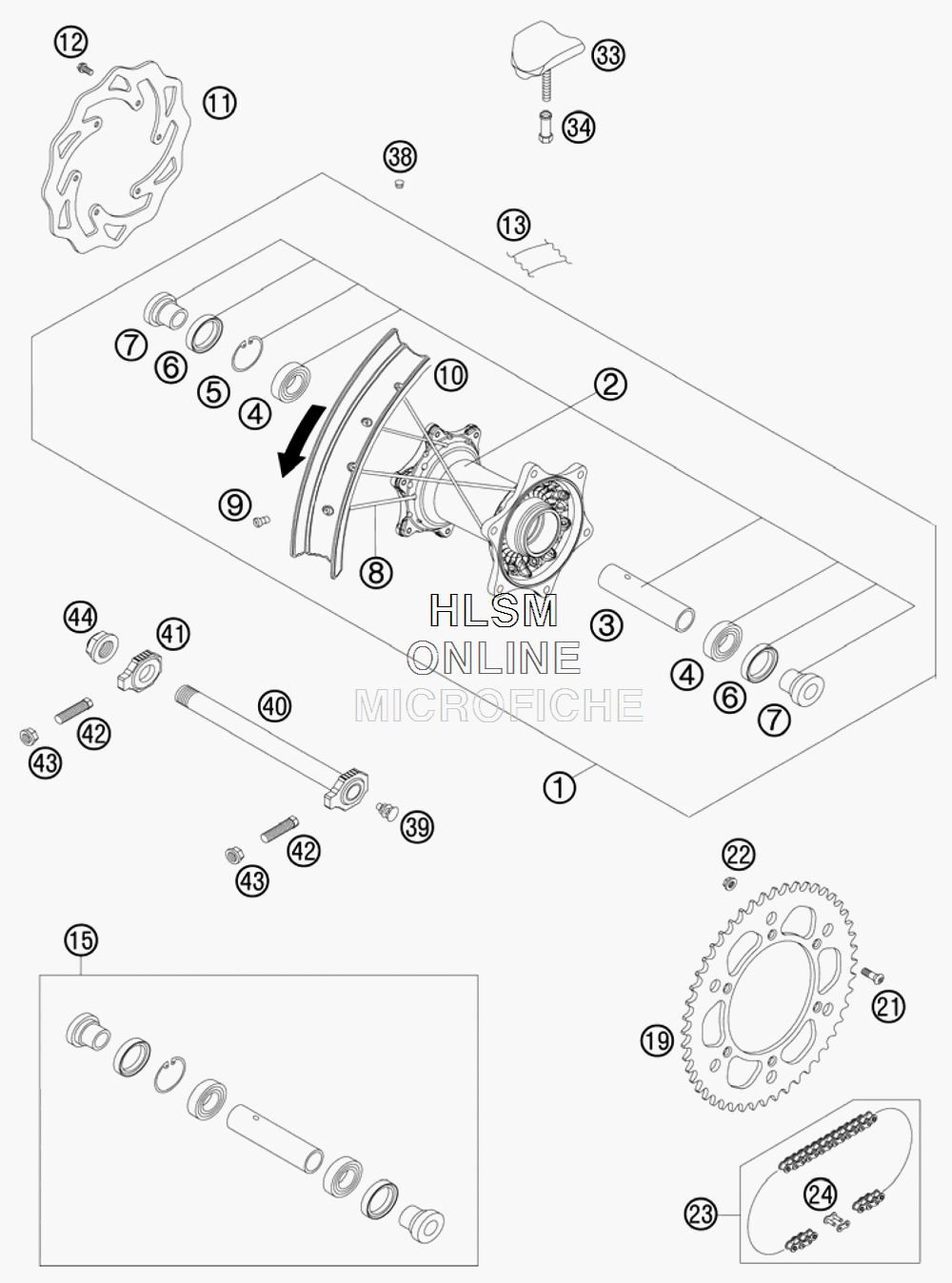

REAR WHEEL для Ktm 150 XC - 2011 года выпуска
-
№АртикулНазвание
-
151510001044 REAR WHEEL 2,15X18"EXCELREAR WHEEL 2,15X18"EXCEL
-
278010010144 REAR WHEEL HUB CPL.REAR WHEEL HUB CPL.
-
359010011000 BUSHING SPACER TUBE 121,5MMBUSHING SPACER TUBE 121,5MM
-
40625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
778010016000 BUSHING FOR HUBBUSHING FOR HUB
-
877110071193 SPOKE M4,5X193- 18"SPOKE M4,5X193- 18"
-
977109072000 SPOKE NIPPLE M4,5 ALSPOKE NIPPLE M4,5 AL
-
1051510070000 REAR RIM 2,15"X18"EX. AL7REAR RIM 2,15"X18"EX. AL7
-
1177310060000 BRAKE DISC REAR 220BRAKE DISC REAR 220
-
1259009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1350310073200 RIM BAND 18" AND 19"RIM BAND 18" AND 19"
-
1578010015000 REAR WHEEL REP. KITREAR WHEEL REP. KIT
-
1958310051038 REAR SPROCKET 38-TREAR SPROCKET 38-T
-
1958310051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
1958310151040 REAR SPROCKET 40-TREAR SPROCKET 40-T
-
1958310151045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
1958310151048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
1958310151049 REAR SPROCKET 49-TREAR SPROCKET 49-T
-
1958310151050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
1958310151051 REAR SPROCKET 51-TREAR SPROCKET 51-T
-
1958310151052 REAR SPROCKET 52-TREAR SPROCKET 52-T
-
210019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
2206923080003 HEXAGON NUT DIN EN1661 M8 SW13HEXAGON NUT DIN EN1661 M8 SW13
-
2378010167118 CHAIN DID8 ROLLSCHAIN DID8 ROLLS
-
2478010166000 CONNECTING LINK F. 78010167118CONNECTING LINK F. 78010167118
-
3354010100100 RIM LOCK VM3 (2.15")RIM LOCK VM3 (2.15")
-
3450310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4077310085044 WHEEL SPINDLE RE. CPL.265MMWHEEL SPINDLE RE. CPL.265MM
-
4150310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
4250304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
4358414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
4450310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT PISTON
- CYLINDER CYLINDER HEAD
- DECAL
- ENGINE CASE
- EXHAUST CONTROL
- EXHAUST SYSTEM
- FRAME
- FRONT FORK DISASSEMBLED
- FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR CONTROLS
- IGNITION SYSTEM
- KICK STARTER
- MASK FENDERS
- REAR BRAKE CONTROL
- • REAR WHEEL
- REED VALVE CASE
- SHIFTING MECHANISM
- SHOCK ABSORBER
- SHOCK ABSORBER DISASSEMBLED
- SIDE / CENTER STAND
- SWING ARM
- TANK SEAT COVER
- TRANSMISSION I - MAIN SHAFT
- TRANSMISSION II - COUNTERSHAFT
