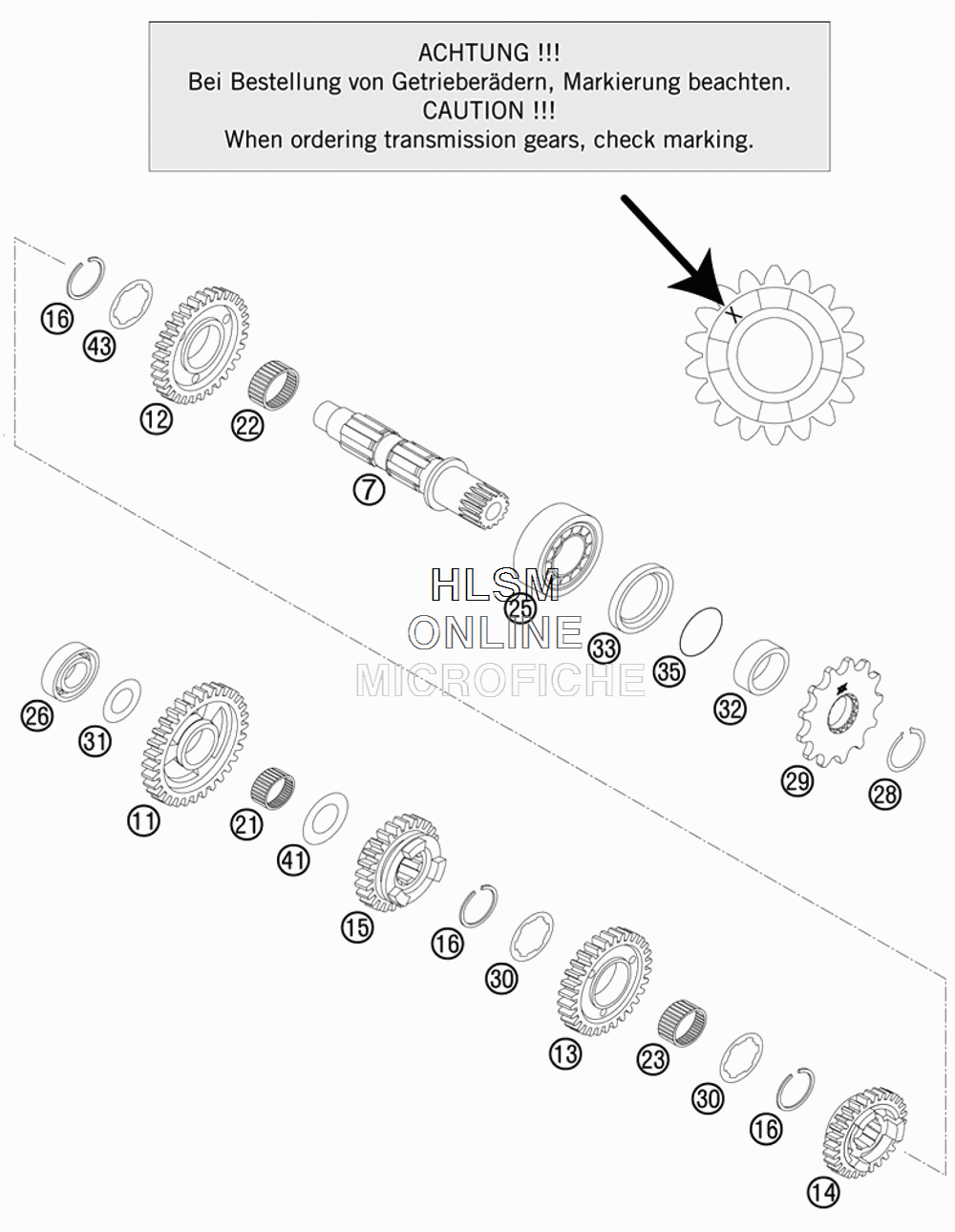

TRANSMISSION - COUNTERSHAFT для Ktm 250 SX - 2011 года выпуска

№

Артикул

Название
7

54833007000 COUNTERSHAFT

COUNTERSHAFT

30 990 ₽
11

54833011000 IDLER GEAR 1ST G. 28-T "1S28"

IDLER GEAR 1ST G. 28-T "1S28"

19 980 ₽
12

54833012200 IDLER GEAR 2.G 24-Z "2S24" 06

IDLER GEAR 2.G 24-Z "2S24" 06

23 220 ₽
13

54833013000 IDLER GEAR 3RD G. 24-T "3S24"

IDLER GEAR 3RD G. 24-T "3S24"

0 ₽
14

54833014000 SLIDING GEAR 4TH G.24-T "4S24"

SLIDING GEAR 4TH G.24-T "4S24"

49 680 ₽
15

54833015000 SLIDING GEAR 5TH G.21-T "5S21"

SLIDING GEAR 5TH G.21-T "5S21"

41 240 ₽
16

77033022000 AXIAL-CIRCLIP 25X1,65

AXIAL-CIRCLIP 25X1,65

970 ₽
21

0405202413 NEEDLE BEAR. K20X24X13

NEEDLE BEAR. K20X24X13

2 920 ₽
22

0405242812 NEDDLE BEAR. K24X28X11,9 DIV.

NEDDLE BEAR. K24X28X11,9 DIV.

1 670 ₽
23

0405222613 NEEDLE BEAR. K 22X26X13 TN

NEEDLE BEAR. K 22X26X13 TN

2 340 ₽
25

54833025000 BALL BEARING TM-SC05C20C4 NTN

BALL BEARING TM-SC05C20C4 NTN

17 290 ₽
26

0625062035 BALL BEARING 6203 JR2 C3

BALL BEARING 6203 JR2 C3

3 890 ₽
28

52033096000 LOCK RING DIN0471-25X1,64SD

LOCK RING DIN0471-25X1,64SD

1 110 ₽
29

50033029013 FRONT SPROCKET 13-T

FRONT SPROCKET 13-T

8 110 ₽
29

50033029014 FRONT SPROCKET 14-T

FRONT SPROCKET 14-T

8 110 ₽
30

59033030000 STOP DISC 25,2X32X1,5

STOP DISC 25,2X32X1,5

500 ₽
31

56033030000 STOP DISC 17,2X30X1

STOP DISC 17,2X30X1

970 ₽
32

54833032011 SPACER SLEEVE DRIVE END

SPACER SLEEVE DRIVE END

4 700 ₽
33

0760324565 SHAFT SEAL RING 32X45X6,5 BTSL

SHAFT SEAL RING 32X45X6,5 BTSL

1 140 ₽
35

0770250020 O-RING 25,00X2,00 NBR 70

O-RING 25,00X2,00 NBR 70

560 ₽
41

59033080000 SHIM 20X32X1

SHIM 20X32X1

440 ₽
43

50333043000 STOP DISC 25,2X32X1

STOP DISC 25,2X32X1

1 230 ₽
