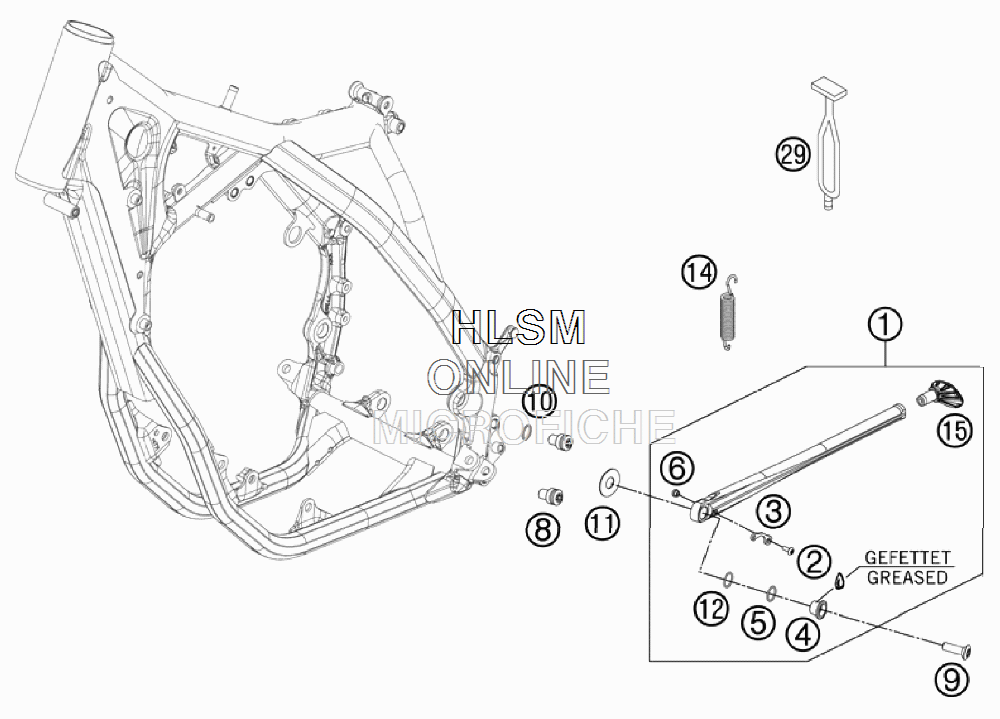

SIDE / CENTER STAND для Ktm 250 XC-F - 2011 года выпуска
-
№АртикулНазвание
-
178003023044 SIDE STAND CPL.SIDE STAND CPL.
-
258605083014 SCREW M5X14 TORX 25SCREW M5X14 TORX 25
-
378003023090 SPRING BRACKET F. SIDE ST.SPRING BRACKET F. SIDE ST.
-
478003023080 SIDE STAND BUSHINGSIDE STAND BUSHING
-
50770180020 O-RING 18,00X2,00 NBRO-RING 18,00X2,00 NBR
-
678003023070 SPACER BUSH. SPRING BRACKETSPACER BUSH. SPRING BRACKET
-
878003023182 SIDE STAND STOP SCREW M10X12SIDE STAND STOP SCREW M10X12
-
90019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
100770120020 O-RING 12,00X2,00 NBRO-RING 12,00X2,00 NBR
-
1178003023083 WASHER F. SIDE STAND 12,2X29,5WASHER F. SIDE STAND 12,2X29,5
-
120770125015 O-RING 12,5X1,5 NBRO-RING 12,5X1,5 NBR
-
1478003024100 SIDE STAND SPRINGSIDE STAND SPRING
-
1578003023055 STAND BASESTAND BASE
-
2950303018000 RUBBER L=145MMRUBBER L=145MM
