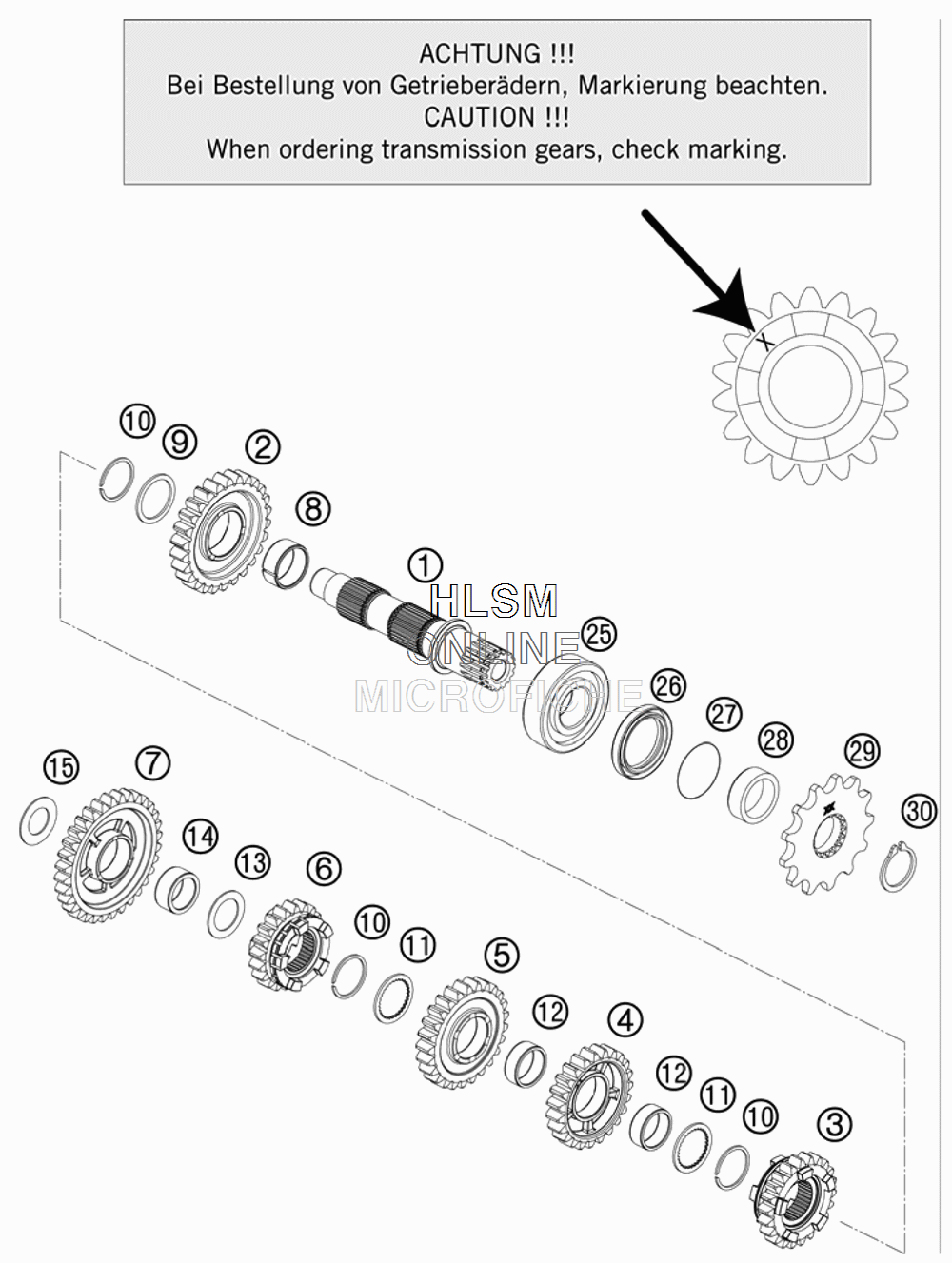

TRANSMISSION II - COUNTERSHAFT для Ktm 250 XC-W - 2011 года выпуска

№

Артикул

Название
1*

54833210000 COUNTER SHAFT CPL.

COUNTER SHAFT CPL.

0 ₽
2

54833212000 IDLER GEAR 2. G., Z=26

IDLER GEAR 2. G., Z=26

21 290 ₽
3

54833215000 SLIDING GEAR 5.G., Z=22

SLIDING GEAR 5.G., Z=22

21 730 ₽
4

54833214000 IDLER GEAR 4.G., Z=23

IDLER GEAR 4.G., Z=23

21 610 ₽
5

54833213000 IDLER GEAR 3.G., Z= 25

IDLER GEAR 3.G., Z= 25

24 010 ₽
6

54833216000 SLIDING GEAR 6.G., Z=20

SLIDING GEAR 6.G., Z=20

28 650 ₽
7

54833211000 IDLER GEAR 1. G, Z=32

IDLER GEAR 1. G, Z=32

21 290 ₽
8

405242812 NEDDLE BEAR. K24X28X11,9 DIV.

NEDDLE BEAR. K24X28X11,9 DIV.

0 ₽
9

54833044000 STOP DISC 25X31X1,5

STOP DISC 25X31X1,5

1 030 ₽
10

417025000 CIRCLIP SW25

CIRCLIP SW25

0 ₽
11*

54833043000 STOP DISC 25X0,8X30X30X7H

STOP DISC 25X0,8X30X30X7H

1 200 ₽
12

0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED

NEEDLE BEAR.K 22X26X10 DIVIDED

3 130 ₽
13*

54833080000 STOP DISC 20,2X30X1

STOP DISC 20,2X30X1

640 ₽
14

0405202612 NEEDLE BEARING K 20X26X12

NEEDLE BEARING K 20X26X12

2 950 ₽
15

56033030000 STOP DISC 17,2X30X1

STOP DISC 17,2X30X1

970 ₽
25

54833025000 BALL BEARING TM-SC05C20C4 NTN

BALL BEARING TM-SC05C20C4 NTN

17 290 ₽
26

0760324565 SHAFT SEAL RING 32X45X6,5 BTSL

SHAFT SEAL RING 32X45X6,5 BTSL

1 140 ₽
26

0770250020 O-RING 25,00X2,00 NBR 70

O-RING 25,00X2,00 NBR 70

560 ₽
28

54833032011 SPACER SLEEVE DRIVE END

SPACER SLEEVE DRIVE END

4 700 ₽
29

50033029013 FRONT SPROCKET 13-T

FRONT SPROCKET 13-T

8 110 ₽
29

50033029014 FRONT SPROCKET 14-T

FRONT SPROCKET 14-T

8 110 ₽
30

52033096000 LOCK RING DIN0471-25X1,64SD

LOCK RING DIN0471-25X1,64SD

1 110 ₽
