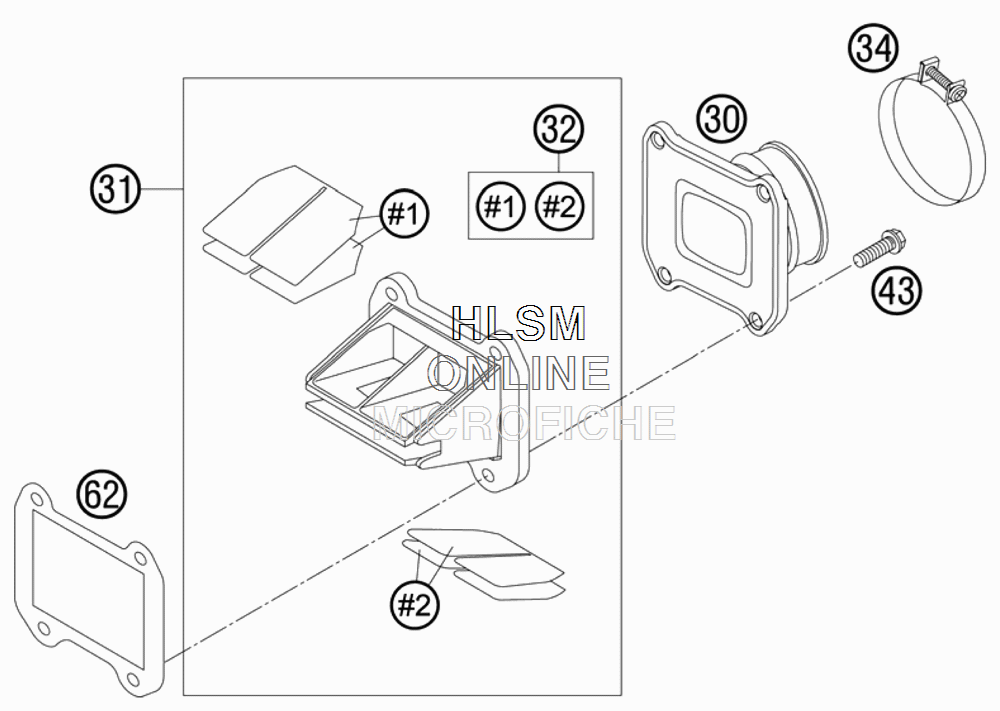

REDD VALVE CASE для Ktm 250 XC - 2011 года выпуска
-
№АртикулНазвание
-
3054830050000 INTAKE FLANGE V-FORCEINTAKE FLANGE V-FORCE
-
31*54830051444 REED VALVE ASSY V-FORCE SXREED VALVE ASSY V-FORCE SX
-
3254830052100 REED VALVE SET V-FORCEREED VALVE SET V-FORCE
-
3454330061000 CLAMP 52/12 GEMICLAMP 52/12 GEMI
-
430025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
62*54830062200 GASKET REED VALVE CASEGASKET REED VALVE CASE
