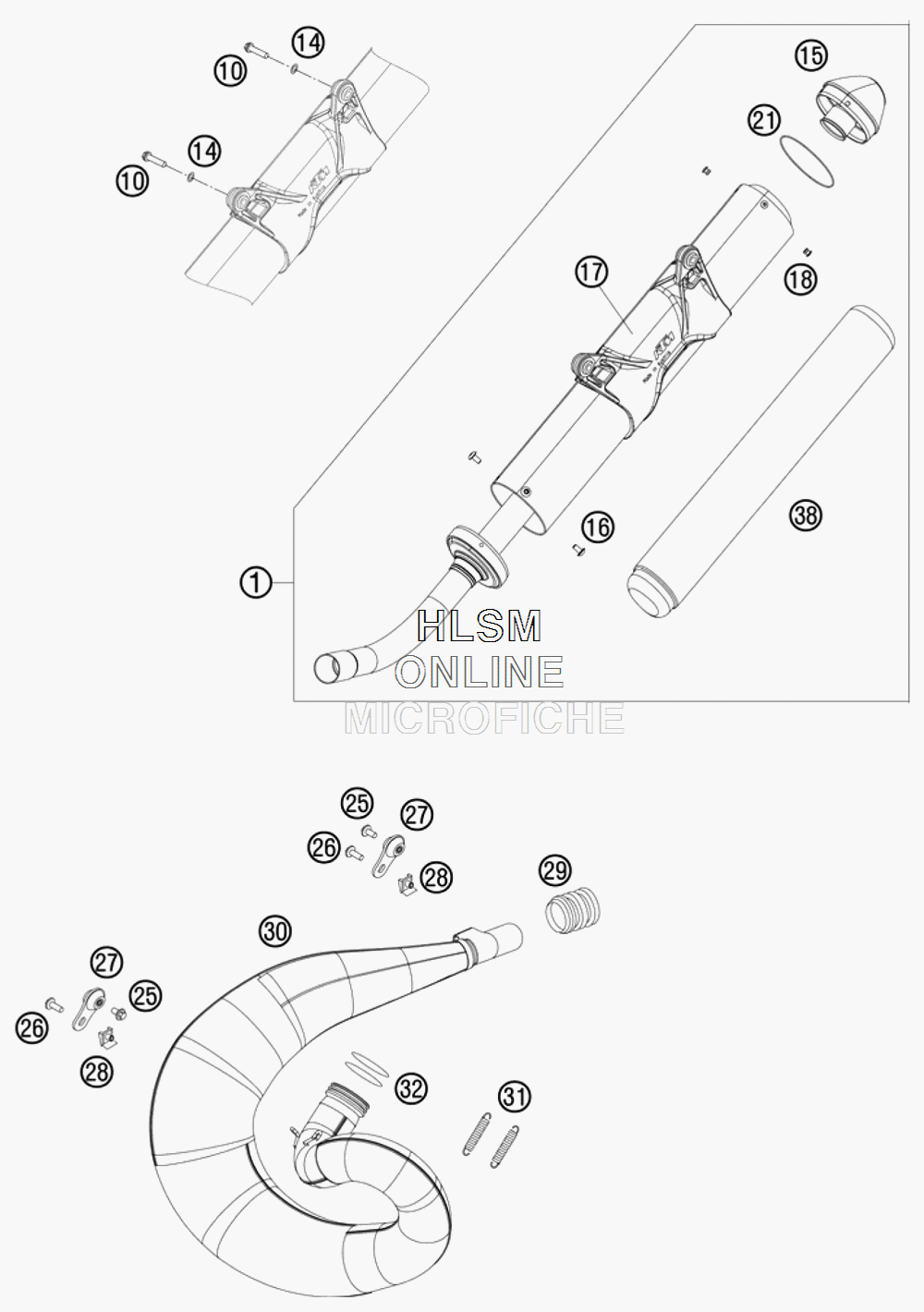

EXHAUST SYSTEM для Ktm 300 XC - 2011 года выпуска
-
№АртикулНазвание
-
154805083200 MAIN SILENCER 50MAIN SILENCER 50
-
100025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
140137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1554805083260 ENDCAP CPL.ENDCAP CPL.
-
1658605083010 SCREW TORX M5X10SCREW TORX M5X10
-
1754805183085 SILENCER HOUS. CPL. W. HANGINGSILENCER HOUS. CPL. W. HANGING
-
180011480800 DUMMY RIVET 4,8X 8 NIRODUMMY RIVET 4,8X 8 NIRO
-
210770740015 O-RING 74,00X1,50 FKM 75SHO-RING 74,00X1,50 FKM 75SH
-
250024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
260024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
2750305012000 SWINGELEMENT FOR EXHAUST PIPESWINGELEMENT FOR EXHAUST PIPE
-
2854603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
2950205057000 SILICON SLEEVE D=29/31MMSILICON SLEEVE D=29/31MM
-
3054805107000 EXHAUST MANIFOLDEXHAUST MANIFOLD
-
3150305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
320770440030 O-RING 44,00X3,00 VITONO-RING 44,00X3,00 VITON
-
3854805078315 ROCKWOOL 315GROCKWOOL 315G
