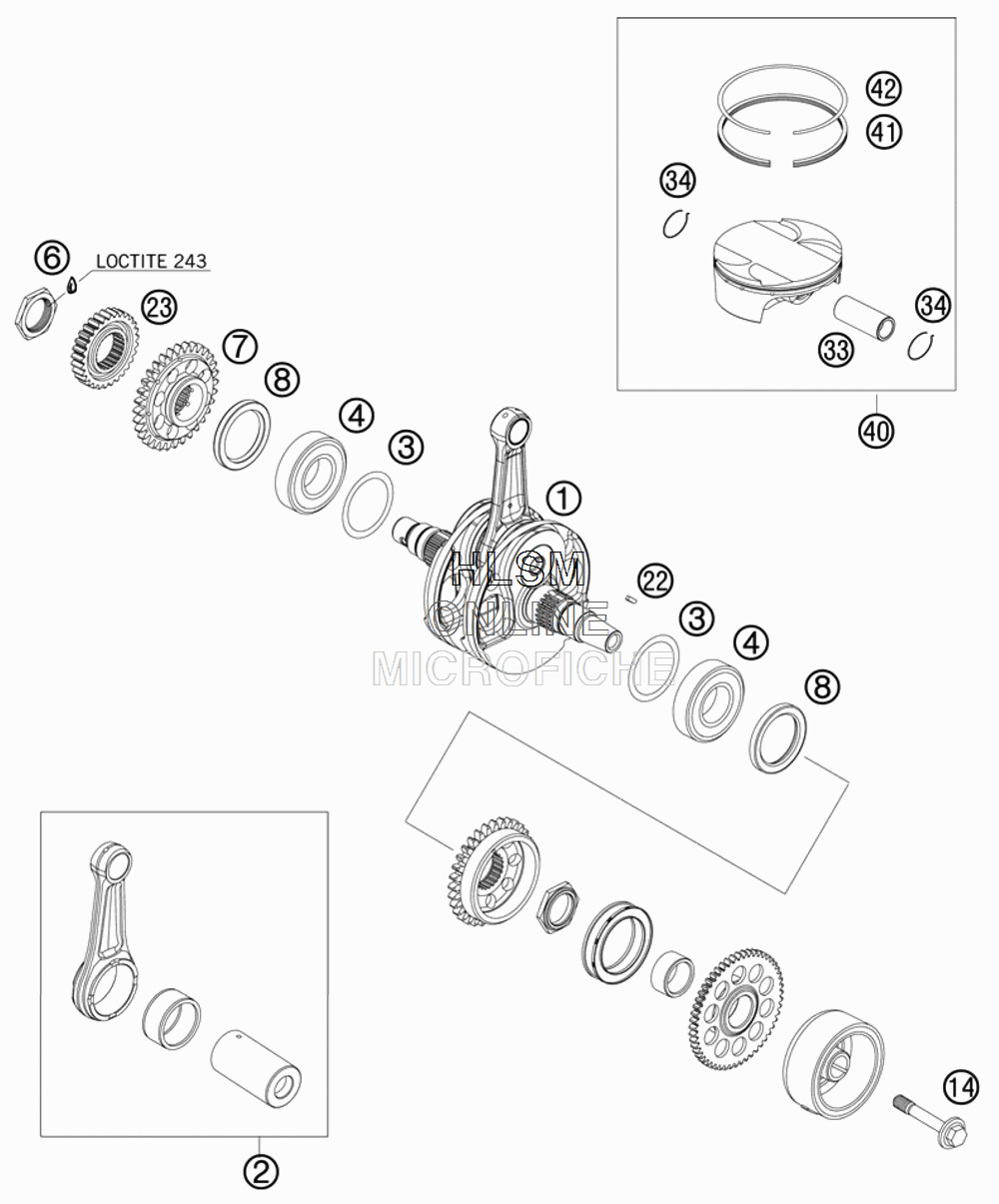

CRANKSHAFT PISTON для Ktm 450 SXF - 2011 года выпуска
-
№АртикулНазвание
-
177330018400 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
277330015244 CONNECTING ROD REPAIR SETCONNECTING ROD REPAIR SET
-
30988304201 THRUST WASHER 30X42X0,1THRUST WASHER 30X42X0,1
-
30988304202 THRUST WASHER 30X42X0,2THRUST WASHER 30X42X0,2
-
30988304203 THRUST WASHER 30X42X0,3THRUST WASHER 30X42X0,3
-
477330082000 CYL. ROLLER BEARING NJ206 ECPCYL. ROLLER BEARING NJ206 ECP
-
677330029000 COLLAR NUT M27X1COLLAR NUT M27X1
-
777330055110 DRIVE WHEEL AGZR KS Z=32DRIVE WHEEL AGZR KS Z=32
-
80760405560 SHAFT SEAL RING A40X55X6 VITONSHAFT SEAL RING A40X55X6 VITON
-
1477339010100 FLYWHEEL SCREWFLYWHEEL SCREW
-
220888030037 WOODRUFF KEY DIN6888-3X3,7WOODRUFF KEY DIN6888-3X3,7
-
2377332023129 PRIMARY GEARPRIMARY GEAR
-
3377330033000 PISTON PINPISTON PIN
-
3477330074000 CIRCLIPCIRCLIP
-
4077330007500I PISTON 450 SIZE IPISTON 450 SIZE I
-
4077330007500II PISTON 450 SIZE IIPISTON 450 SIZE II
-
4177330032200 SCRAPER RING 450SCRAPER RING 450
-
4277330030100 COMPRESSIONRING D=97COMPRESSIONRING D=97
