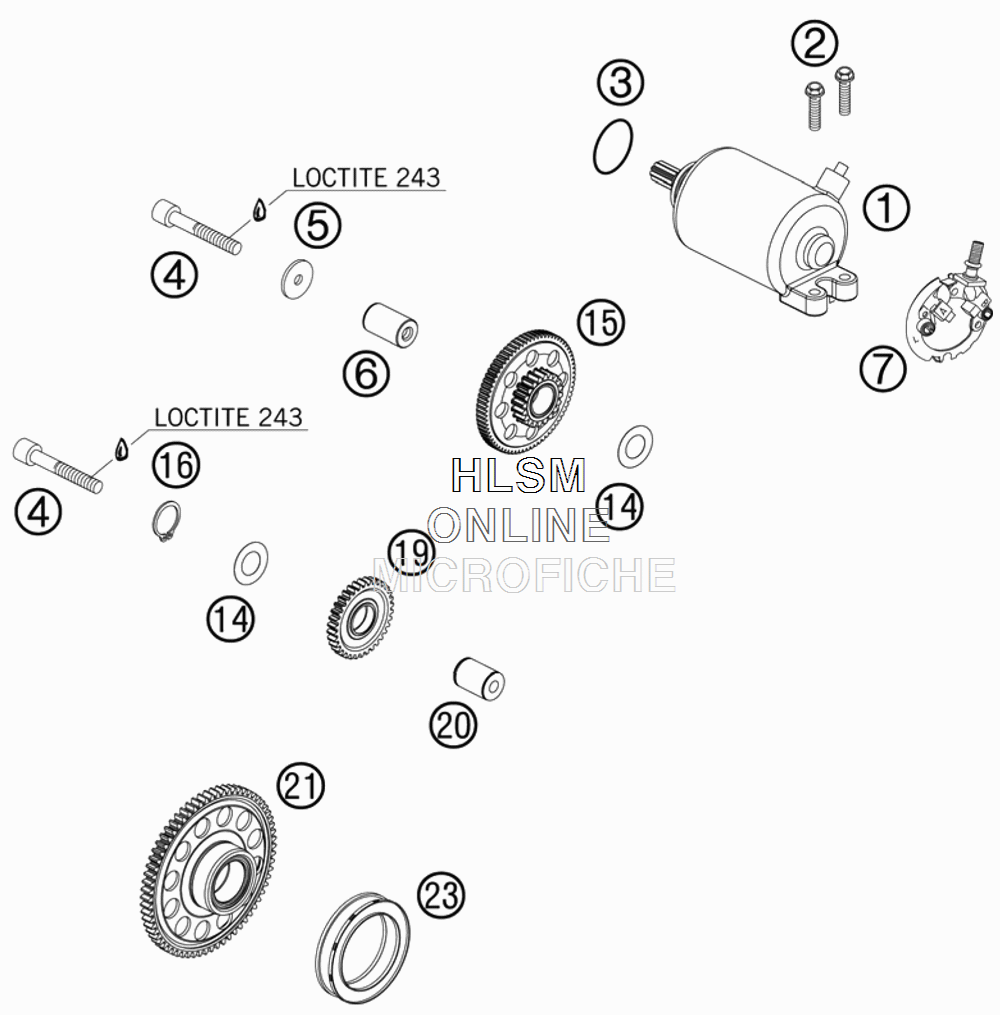

ELECTRIC STARTER для Ktm 450 XC-W SIX DAYS - 2011 года выпуска
-
№АртикулНазвание
-
178040001000 E-START. ENGINE CPL. 0,45KWE-START. ENGINE CPL. 0,45KW
-
20025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
30770020220 O-RING 25,12X1,78 NBR70O-RING 25,12X1,78 NBR70
-
40912060404 AH SCREW DIN0912-M 6X40 A2AH SCREW DIN0912-M 6X40 A2
-
578040016004 STOP DISC 6X23X2STOP DISC 6X23X2
-
678040029000 BEARING BOLTBEARING BOLT
-
778040002000 BRUSH HOLDER F. STARTERBRUSH HOLDER F. STARTER
-
140988172405 SHIM WASHER DIN0988-17X24X0,5SHIM WASHER DIN0988-17X24X0,5
-
1578040016100 TORQUE LIMITER CPL.TORQUE LIMITER CPL.
-
160471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
1978040022000 IDLER GEAR 30-T CPL.IDLER GEAR 30-T CPL.
-
2078040028000 BUSHING PINBUSHING PIN
-
2178040020133 FREEWHEEL GEAR CPL.FREEWHEEL GEAR CPL.
-
2375040026000 FREE WHEELFREE WHEEL
