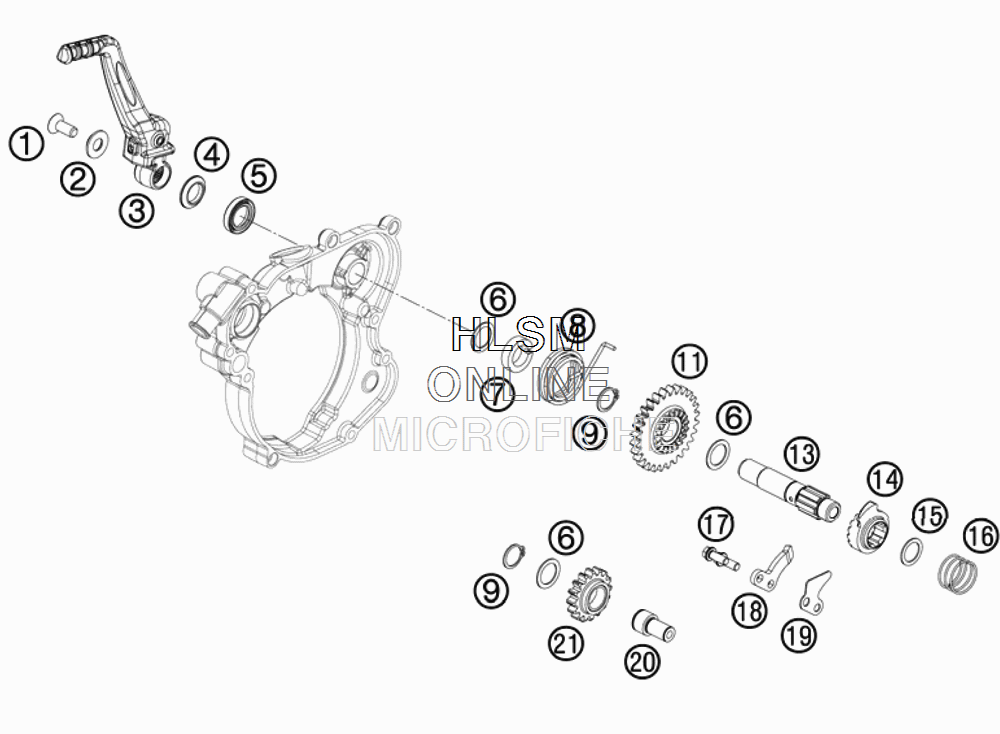

KICKSTARTER для Ktm 65 SX - 2011 года выпуска
-
№АртикулНазвание
-
154610052000 SPROCKET SCREW-AH M8X20 WS=6SPROCKET SCREW-AH M8X20 WS=6
-
254633037000 WASHER 8MM GALVANIZEDWASHER 8MM GALVANIZED
-
346233036044 KICKSTARTER CPL.KICKSTARTER CPL.
-
446233038000 SPACER SLEEVESPACER SLEEVE
-
50760172860 SHAFT SEAL RING 17X28X6B NBRSHAFT SEAL RING 17X28X6B NBR
-
650333030000 STOP DISK 17,2X24X1STOP DISK 17,2X24X1
-
750333055000 DRIVING HUBDRIVING HUB
-
850333054000 KICKSTARTER SPRING 2,6MMKICKSTARTER SPRING 2,6MM
-
90471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
1177033051000 KICKSTART. GEAR 28-TKICKSTART. GEAR 28-T
-
1350333050000 KICKSTARTER SHAFTKICKSTARTER SHAFT
-
1450333052000 KICKSTARTER RATCHETKICKSTARTER RATCHET
-
150988162210 THRUST WASHER DIN0988-16X22X1THRUST WASHER DIN0988-16X22X1
-
1650333056000 SPRING 1,4MMSPRING 1,4MM
-
170025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
1850333069000 STOP MET.SHEET 4MMSTOP MET.SHEET 4MM
-
1946233069001 COVER PLATECOVER PLATE
-
2046233018000 BEARING PIN IDLER GEARBEARING PIN IDLER GEAR
-
2146233053016 INTERMEDIATE STARTING GEARINTERMEDIATE STARTING GEAR
