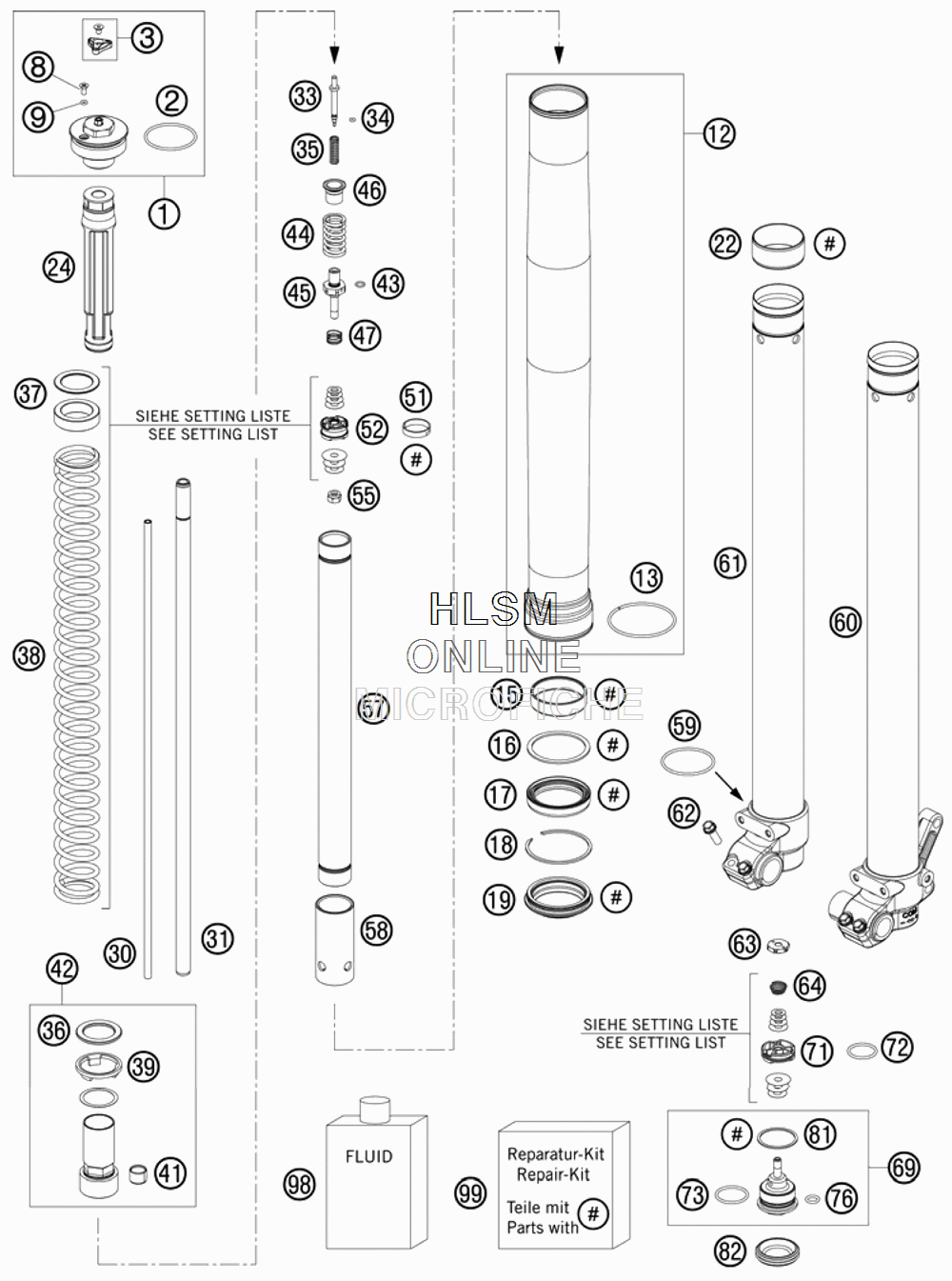

FRONT FORK DISSASSEMBLED для Ktm 85 SX 17/14 - 2011 года выпуска

№

Артикул

Название
1*

43570395S1 SCREW CAP M46X1,5 CPL.

SCREW CAP M46X1,5 CPL.

16 090 ₽
2

46811042 O-RING 40,00X2,00 WP

O-RING 40,00X2,00 WP

350 ₽
3*

48600812S ADJUSTING KNOB + SCREW

ADJUSTING KNOB + SCREW

900 ₽
8

48600481 VENT SCREW M4X8

VENT SCREW M4X8

410 ₽
9

48600046 O-RING NBR 3X1,5

O-RING NBR 3X1,5

220 ₽
12*

43570614E OUTER TUBE L510 D49/53

OUTER TUBE L510 D49/53

73 740 ₽
13

43570099 GUIDING RING D=53MM

GUIDING RING D=53MM

7 120 ₽
15

43570204 DU-BUSH 43X47X12 DAIDO

DU-BUSH 43X47X12 DAIDO

2 780 ₽
16

43570092 SUPPORT RING 45 X 52,5 X 1,5

SUPPORT RING 45 X 52,5 X 1,5

5 430 ₽
17

43570201 OIL SEAL RING 43 X 52,9 X 9,5

OIL SEAL RING 43 X 52,9 X 9,5

4 790 ₽
18

43570008 LOCK WASHER SB53

LOCK WASHER SB53

730 ₽
19

43570202 DUST STRIPPER 43 X 53,4 X 11,8

DUST STRIPPER 43 X 53,4 X 11,8

4 860 ₽
22

43570203 DU-BUSH 42X44X20

DU-BUSH 42X44X20

2 780 ₽
24

43570396S STOP L135MM D28,6MM D12MM CPL.

STOP L135MM D28,6MM D12MM CPL.

12 380 ₽
30

48600695 ADJUSTMENT TUBE L=442 MM

ADJUSTMENT TUBE L=442 MM

4 970 ₽
31

48600694 PISTON ROD D=12MM L=476MM

PISTON ROD D=12MM L=476MM

48 910 ₽
33

48600277 ADJUSTER NEEDLE

ADJUSTER NEEDLE

1 240 ₽
34

48600298 O-RING 2X1,5 NBR

O-RING 2X1,5 NBR

60 ₽
35

48600444 REBOUND SPRING C=4N/MM

REBOUND SPRING C=4N/MM

620 ₽
36*

43570133 SPACER 26X38X2,5

SPACER 26X38X2,5

740 ₽
37

43570133 SPACER 26X38X2,5

SPACER 26X38X2,5

740 ₽
37

43570134 SPACER 26X38X5

SPACER 26X38X5

560 ₽
37

43570135 SPACER 26X38X10

SPACER 26X38X10

770 ₽
37

43570136 SPACER 26X38X1,5

SPACER 26X38X1,5

650 ₽
38

95010031S SPRING 3,2 N/MM SET D=4,2MM

SPRING 3,2 N/MM SET D=4,2MM

39 430 ₽
38

95010032S SPRING 3,4 N/MM SET D=4,4MM

SPRING 3,4 N/MM SET D=4,4MM

39 430 ₽
38

95010033S SPRING 3,6 N/MM SET

SPRING 3,6 N/MM SET

39 430 ₽
39

43570131 INTERM. RING 26,2X38,5X3

INTERM. RING 26,2X38,5X3

4 860 ₽
41

48600430 DU BUSH FOR PISTON ROD

DU BUSH FOR PISTON ROD

1 620 ₽
42*

48600830S2 SCREW SLEEVE M27X0,8 CPL.

SCREW SLEEVE M27X0,8 CPL.

8 360 ₽
43

48600299 O-RING 6X1,2 NBR

O-RING 6X1,2 NBR

30 ₽
44

48600511 REBOUND SPRING L=32 C=17

REBOUND SPRING L=32 C=17

630 ₽
45

48600513 TAP REBOUND 7

TAP REBOUND 7

4 180 ₽
46

48600525 GUIDING BUSH REBOUND SPRING

GUIDING BUSH REBOUND SPRING

310 ₽
47

48600382 SHUTTLE VALVE SPRING C=0,4

SHUTTLE VALVE SPRING C=0,4

370 ₽
51*

48600455 PISTON RING 5X1X68

PISTON RING 5X1X68

3 790 ₽
52*

48600575 PISTON REBOUND SX

PISTON REBOUND SX

3 400 ₽
55

40540486 NUT M6X0,5 REBOUND

NUT M6X0,5 REBOUND

920 ₽
57*

48600870 TUBE 23 L=330

TUBE 23 L=330

16 910 ₽
58*

48600764 ADAPTER SLEEVE D23/D28

ADAPTER SLEEVE D23/D28

5 130 ₽
59

43570023 O-RING NBR 41X2

O-RING NBR 41X2

3 640 ₽
60*

43570528S1 AXLE CLAMP L/S + TUBE CPL.

AXLE CLAMP L/S + TUBE CPL.

170 ₽
61*

43570527S1 AXLE CLAMP R/S + TUBE CPL.

AXLE CLAMP R/S + TUBE CPL.

151 070 ₽
62

0025060206 HH COLLAR SCREW M6X20 TX30

HH COLLAR SCREW M6X20 TX30

500 ₽
63*

48600885 NUT VALVE M6X0,5 LH=1,2

NUT VALVE M6X0,5 LH=1,2

1 380 ₽
64

48600202 SPRING CHECK VALVE D=0,7

SPRING CHECK VALVE D=0,7

310 ₽
69

48600586S TAP COMPRESSION CPL.

TAP COMPRESSION CPL.

24 910 ₽
71

48600047 PISTON COMPRESSION D=27,9

PISTON COMPRESSION D=27,9

2 250 ₽
72

46811499 O-RING NBR 21X2

O-RING NBR 21X2

60 ₽
73

35480320 O-RING NBR 24X2

O-RING NBR 24X2

80 ₽
76

48600049 O-RING NBR 8X2

O-RING NBR 8X2

130 ₽
81

48600004 COPPER WASHER 29,5X33,5X1

COPPER WASHER 29,5X33,5X1

910 ₽
82

48600141 RUBBER CAP D=35MM

RUBBER CAP D=35MM

920 ₽
83

48600765S1 FORK OIL SAE5 5L

FORK OIL SAE5 5L

47 770 ₽
98

T511 SILICONE GREASE F. DUST STRIPE

SILICONE GREASE F. DUST STRIPE

5 410 ₽
99*

R511 REPAIR-KIT

REPAIR-KIT

34 040 ₽
