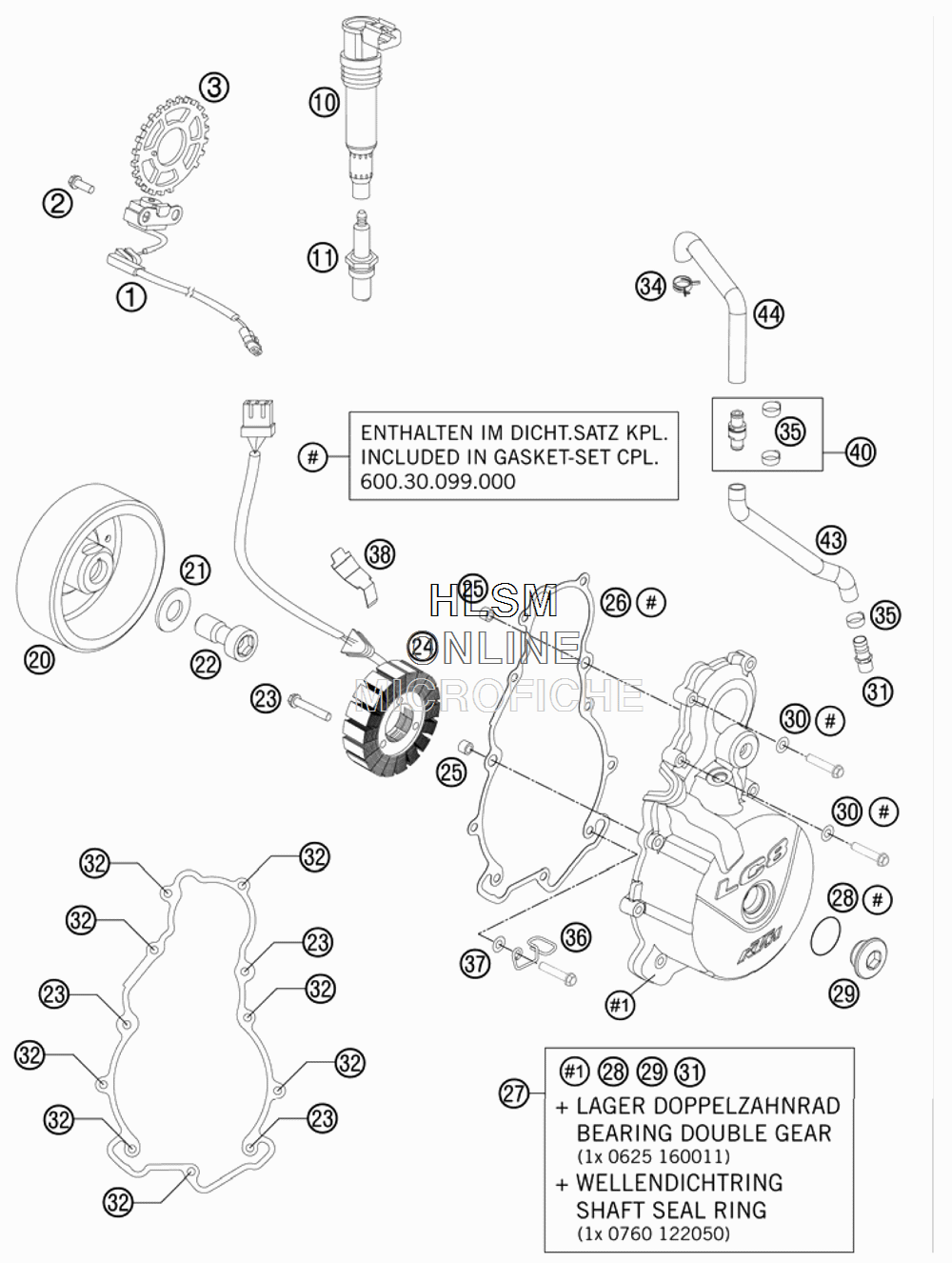

IGNITION SYSTEM для Ktm 990 ADVENTURE (WHITE) - 2011 года выпуска
-
№АртикулНазвание
-
160039034100 PULSE GENERATORPULSE GENERATOR
-
20025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
361039020000 COIL SPROKET 22Z O. CYL. PINCOIL SPROKET 22Z O. CYL. PIN
-
1060039006000 STICK COILSTICK COIL
-
1160139093000 SPARK PLUG M12X1,25 "8"SPARK PLUG M12X1,25 "8"
-
2060039005100 IGNITION ROTOR INCL. FREEWHEELIGNITION ROTOR INCL. FREEWHEEL
-
2160039040010 WASHER 17X32X4WASHER 17X32X4
-
2260039003100 AH EXPAND. SCREW M16X1,5AH EXPAND. SCREW M16X1,5
-
230025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
2460039004000 STATORSTATOR
-
2549030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
2660030040100 IGNIT.COVER GASK.MATRI.CS0,5MMIGNIT.COVER GASK.MATRI.CS0,5MM
-
276003000214423 IGNITION COVER CPL.IGNITION COVER CPL.
-
2807700240251 O-RING 24X2,5 VITONO-RING 24X2,5 VITON
-
296003009400023 SCREW PLUG M24X1,5 PA 6.6SCREW PLUG M24X1,5 PA 6.6
-
300603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
3160030022000 VENTILATION CONNECTOR M16X1,5VENTILATION CONNECTOR M16X1,5
-
320025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
3400049220121 CLAMP STD DN22CLAMP STD DN22
-
3500050226706 VARIABLE ONE-EAR CLAMP 22,6MMVARIABLE ONE-EAR CLAMP 22,6MM
-
3660011094000 CABLE SUPPORTCABLE SUPPORT
-
370125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
3860039040020 CABLE SUPPORT GENERATORCABLE SUPPORT GENERATOR
-
4060030090344 BACK-PRESSURE VALVE CPL.BACK-PRESSURE VALVE CPL.
-
4360030087101 ENGINE BREATHER HOSE BOTTOMENGINE BREATHER HOSE BOTTOM
-
4460030087102 ENGINE BREATHER HOSE TOPENGINE BREATHER HOSE TOP
