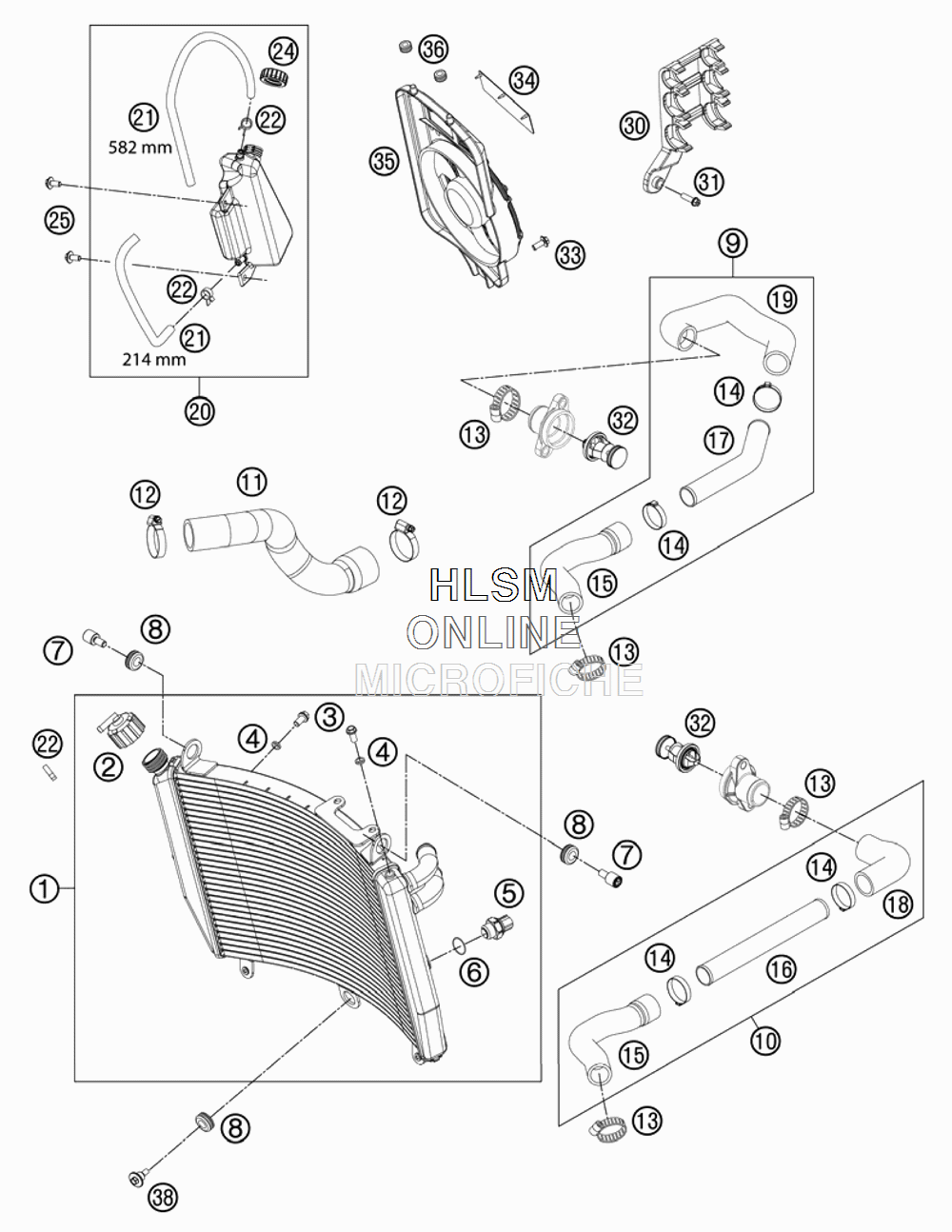

COOLING SYSTEM для Ktm 1190 RC8R (BLACK) - 2012 года выпуска
-
№АртикулНазвание
-
169035010000 COOLER "VW1585" CPL.COOLER "VW1585" CPL.
-
262535009000 RADIATOR CAP 1,4 BARRADIATOR CAP 1,4 BAR
-
30025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
460035048000 ALU-GASKET 6X10X1.5ALU-GASKET 6X10X1.5
-
560035045000 THERMOSWITCH LC8 102DGTHERMOSWITCH LC8 102DG
-
60770017015 O-RING 17X1,5 NB75O-RING 17X1,5 NB75
-
769035001000 STUD BOLT M6 11X11 ISA45STUD BOLT M6 11X11 ISA45
-
841001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
969035091000 RADIATOR HOSE CPL. CYL.-FRONTRADIATOR HOSE CPL. CYL.-FRONT
-
1069035092000 RADIATOR HOSE CPL. CYL.-REARRADIATOR HOSE CPL. CYL.-REAR
-
1169135023000 PREFORMED HOSE COOLER/WAPUPREFORMED HOSE COOLER/WAPU
-
1254305058000 HOSE CLAMP 30-45 SGTHOSE CLAMP 30-45 SGT
-
1376235028000 HOSE CLAMP GEMI 20-32 MMHOSE CLAMP GEMI 20-32 MM
-
1400050331706 VARIABLE ONE-EAR CLAMP 33,1MMVARIABLE ONE-EAR CLAMP 33,1MM
-
1569035024000 PREFORMED HOSE COOLER INLETPREFORMED HOSE COOLER INLET
-
1669035028000 WATER PIPE CYL. REARWATER PIPE CYL. REAR
-
1769035027000 WATER PIPE CYL. FRONTWATER PIPE CYL. FRONT
-
1869035026000 PREFORMED HOSE CYL. REARPREFORMED HOSE CYL. REAR
-
1969035025000 PREFORMED HOSE CYL. FRONTPREFORMED HOSE CYL. FRONT
-
2069035065000 EXPANSION TANK CPL.EXPANSION TANK CPL.
-
2160035067001 HOSE 6X10 EPDM 03HOSE 6X10 EPDM 03
-
2258007117000 YDNAC-CLAMP 10107 10MMYDNAC-CLAMP 10107 10MM
-
2460035066000 PLUG F. EXPANSION TANKPLUG F. EXPANSION TANK
-
250024060136 HH COLLAR SCREW M6X13 TX30HH COLLAR SCREW M6X13 TX30
-
3069035030000 HOSE CLAMP 19/25 CPL.HOSE CLAMP 19/25 CPL.
-
310024060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
3261235017000 THERMOSTAT 70 DEGREETHERMOSTAT 70 DEGREE
-
330024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
3462635044050 FAN CLACK RUBBERFAN CLACK RUBBER
-
3569035044000 FAN COWL WITH FANFAN COWL WITH FAN
-
3631008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
3869008021060 SPECIAL SCREW M5X17SPECIAL SCREW M5X17
