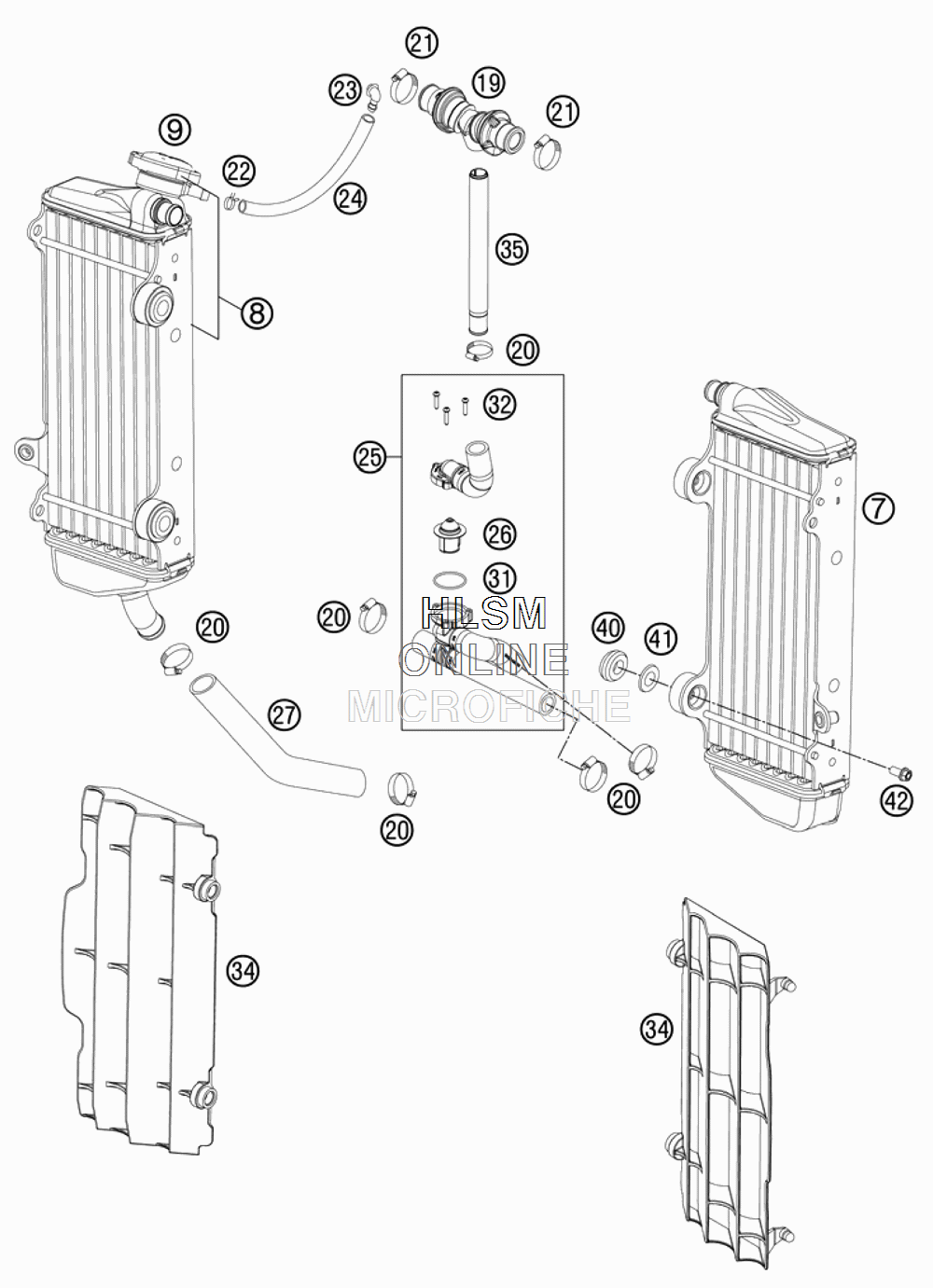

COOLING SYSTEM для Ktm 200 XC-W - 2012 года выпуска
-
№АртикулНазвание
-
754835007300 RADIATOR L/S "55562"RADIATOR L/S "55562"
-
854835008400 RADIATOR R/S "55620"RADIATOR R/S "55620"
-
977335016000 RADIATOR CAP SMALL 1,8 BARRADIATOR CAP SMALL 1,8 BAR
-
1977235071044 Y-CONNECOTOR CPL.Y-CONNECOTOR CPL.
-
2010001020000 HOSE CLAMP GEMI 16-27HOSE CLAMP GEMI 16-27
-
2142013037400 HOSE CLAMP NORMA 12/24HOSE CLAMP NORMA 12/24
-
2245031005000 YDNAC-CLAMP FUEL HOSE (8MM)YDNAC-CLAMP FUEL HOSE (8MM)
-
2350303089000 ANGLE PIECEANGLE PIECE
-
2450335030001 PVC-HOSE 6X9PVC-HOSE 6X9
-
2552335526033 RADIATOR HOSE W. THERM.RADIATOR HOSE W. THERM.
-
2654835017000 THERMOSTAT 55°CTHERMOSTAT 55°C
-
2750335027000 RADIATOR HOSE 18X25RADIATOR HOSE 18X25
-
310770320020 O-RING 32,00X2,00O-RING 32,00X2,00
-
320016040183 SCREW FOR PLASTIC D=4X18SCREW FOR PLASTIC D=4X18
-
347733503400030 RADIATOR PROTECTION BLACKRADIATOR PROTECTION BLACK
-
3577235073000 HOSE CONNECTOR L=172,5HOSE CONNECTOR L=172,5
-
4041001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
4177335001000 WASHER FOR RADIATORWASHER FOR RADIATOR
-
420023060123 COLLAR SCREW REW M6X12 TXCOLLAR SCREW REW M6X12 TX
