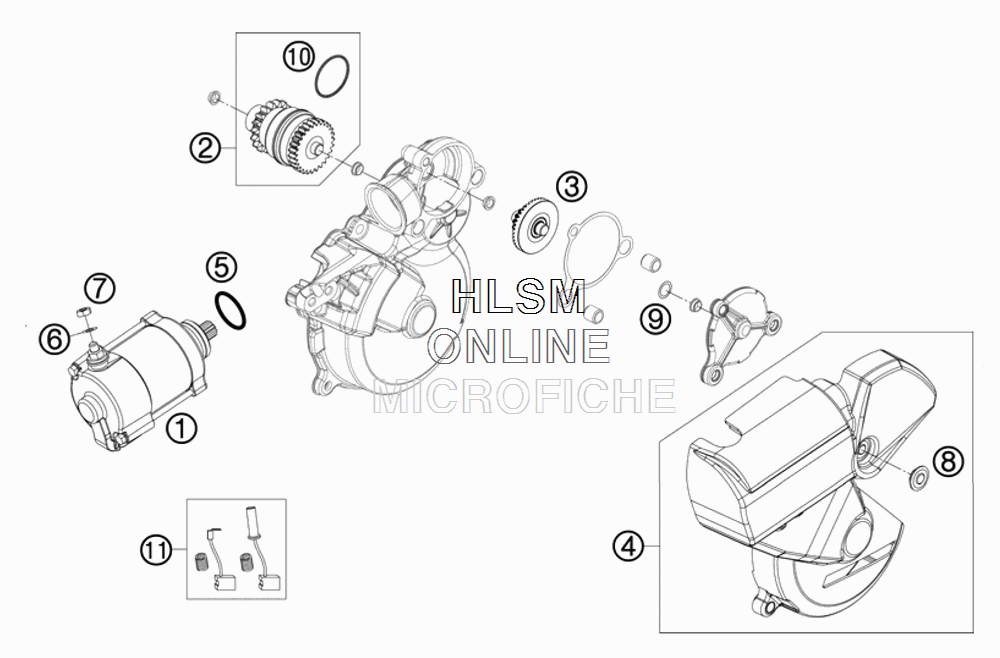

ELECTRIC STARTER для Ktm 250 XC - 2012 года выпуска
-
№АртикулНазвание
-
155140001000 E-STARTER ENGINEE-STARTER ENGINE
-
255140026100 BENDIXBENDIX
-
355140022100 CROWN WHEEL E-STARTERCROWN WHEEL E-STARTER
-
455140040144 STARTER DRIVE COVER CPL.STARTER DRIVE COVER CPL.
-
50770250030 O-RING 25,00X3,00 NBR 70O-RING 25,00X3,00 NBR 70
-
60125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
70985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
850308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
90988081401 THRUST WASHER 8X14X0,1THRUST WASHER 8X14X0,1
-
90988081402 THRUST WASHER 8X14X0,2THRUST WASHER 8X14X0,2
-
90988081403 THRUST WASHER 8X14X0,3THRUST WASHER 8X14X0,3
-
90988081405 THRUST WASHER 8X14X0,5THRUST WASHER 8X14X0,5
-
1055140027000 BENDIX SPRINGBENDIX SPRING
-
1155140002044 BRUSH SET FOR STARTERBRUSH SET FOR STARTER
