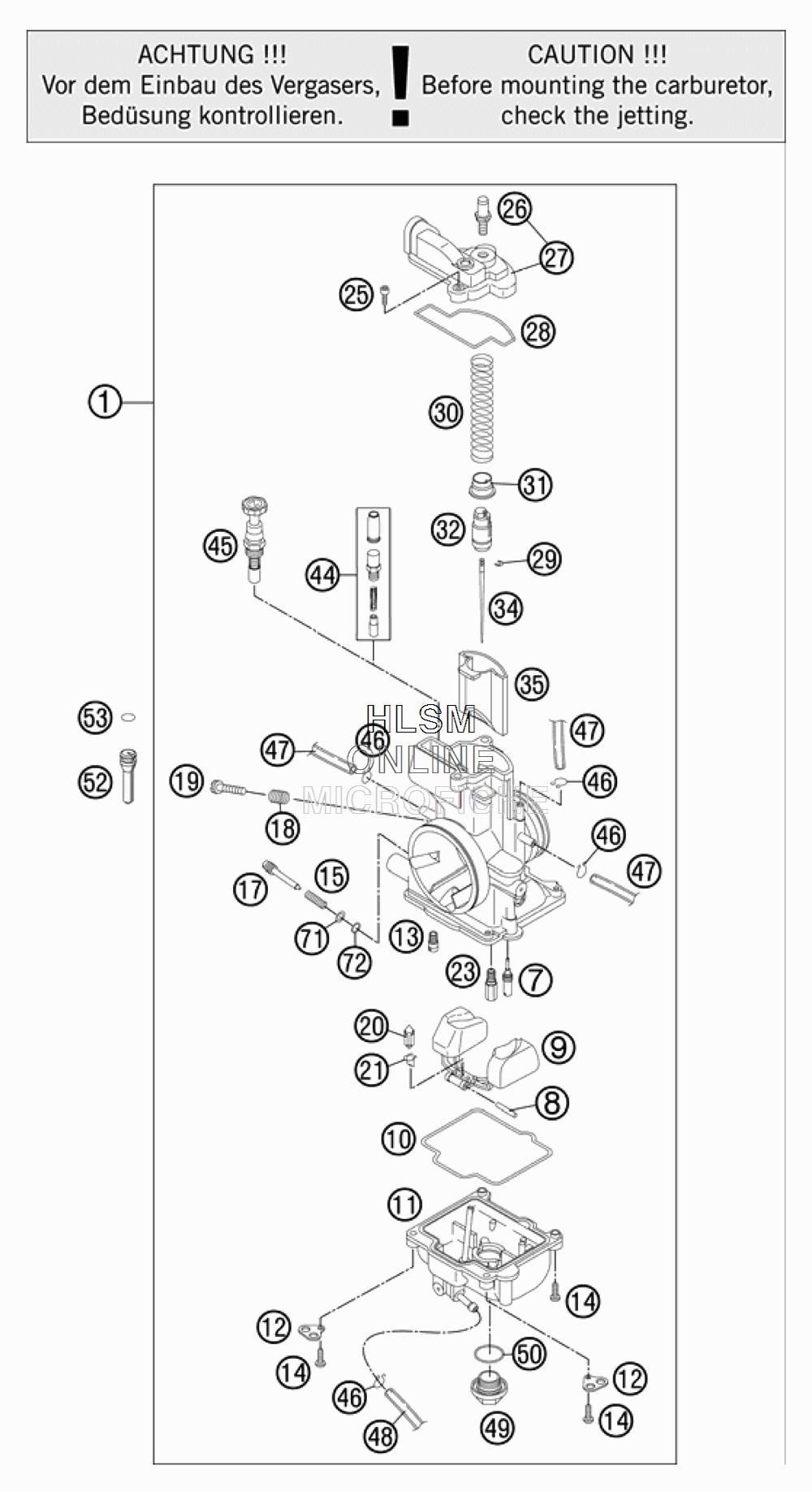

CARBURETOR для Ktm 300 XC-W - 2012 года выпуска
-
№АртикулНазвание
-
154831201544 CARBURET.KEIH.PWK 36S AG BC5CARBURET.KEIH.PWK 36S AG BC5
-
754531607035 IDLE JET 35 KEIHINIDLE JET 35 KEIHIN
-
754531607038 IDLE JET 38 KEIHINIDLE JET 38 KEIHIN
-
754531607040 IDLE JET 40 KEIHINIDLE JET 40 KEIHIN
-
754531607042 IDLE JET 42 KEIHINIDLE JET 42 KEIHIN
-
754531607045 IDLE JET 45 KEIHINIDLE JET 45 KEIHIN
-
754531607048 IDLE JET 48 KEIHINIDLE JET 48 KEIHIN
-
754531607050 IDLE JET 50 KEIHINIDLE JET 50 KEIHIN
-
754831007138 IDLE JET SIZE 38X38 KEIHINIDLE JET SIZE 38X38 KEIHIN
-
857331008000 ARM PIN FLOATARM PIN FLOAT
-
957331009000 FLOAT CPL.FLOAT CPL.
-
1054831010000 GASKET FLOAT CHAMBERGASKET FLOAT CHAMBER
-
1154831011000 FLOAT CHAMBER PWK38-S AGFLOAT CHAMBER PWK38-S AG
-
1254531612100 RETAINING PLATE FOR BLEEDERRETAINING PLATE FOR BLEEDER
-
1354831051050 STARTER JET 50 KEIHINSTARTER JET 50 KEIHIN
-
1354831051085 STARTER JET 85 KEIHINSTARTER JET 85 KEIHIN
-
140016040163 HH COLLAR SCREW M 4X16 WS=6HH COLLAR SCREW M 4X16 WS=6
-
1554531615000 SPRING FOR ADJUSTMENT SCREWSPRING FOR ADJUSTMENT SCREW
-
1754831017000 STOP SCREW CPL.STOP SCREW CPL.
-
1854631118000 SPRINGSPRING
-
1954631219100 ADJUSTMENT SCREW M 5ADJUSTMENT SCREW M 5
-
2054631220000 FLOAT NEEDLEFLOAT NEEDLE
-
2154531621000 CLAMPCLAMP
-
2354531623115 MAIN JET 115 KEIHINMAIN JET 115 KEIHIN
-
2354531623150 MAIN JET 150 KEIHINMAIN JET 150 KEIHIN
-
2354531623152 MAIN JET 152 KEIHINMAIN JET 152 KEIHIN
-
2354531623155 MAIN JET 155 KEIHINMAIN JET 155 KEIHIN
-
2354531623158 MAIN JET 158 KEIHINMAIN JET 158 KEIHIN
-
2354531623160 MAIN JET 160 KEIHINMAIN JET 160 KEIHIN
-
2354531623162 MAIN JET 162 KEIHINMAIN JET 162 KEIHIN
-
2354531623165 MAIN JET 165 KEIHINMAIN JET 165 KEIHIN
-
2354531623168 MAIN JET 168 KEIHINMAIN JET 168 KEIHIN
-
2354531623170 MAIN JET 170 KEIHINMAIN JET 170 KEIHIN
-
2354531623172 MAIN JET 172 KEIHINMAIN JET 172 KEIHIN
-
2354531623175 MAIN JET 175 KEIHINMAIN JET 175 KEIHIN
-
2554831025000 SPECIAL-AH-SCREW M 4X12SPECIAL-AH-SCREW M 4X12
-
2654831029000 THROTTLE CALBE HOLDER M6X0,75THROTTLE CALBE HOLDER M6X0,75
-
2754831127000 CARBURETOR COVER PWK36-S AGCARBURETOR COVER PWK36-S AG
-
2854831028000 GASKET FOR CARBURETOR COVERGASKET FOR CARBURETOR COVER
-
2954531629000 CLIP FOR JET NEEDLECLIP FOR JET NEEDLE
-
3054831030000 SLIDING SPRINGSLIDING SPRING
-
3154631231000 SPRING CAPSPRING CAP
-
3254631232000 NIPPLENIPPLE
-
3454731134100 JET NEEDLE KEIHIN N2ZWJET NEEDLE KEIHIN N2ZW
-
3454731134200 JET NEEDLE KEIHIN N2ZJJET NEEDLE KEIHIN N2ZJ
-
3454731134600 JET NEEDLE KEIHIN N2ZGJET NEEDLE KEIHIN N2ZG
-
3454731134700 JET NEEDLE KEIHIN N2ZHJET NEEDLE KEIHIN N2ZH
-
3454731134800 JET NEEDLE KEIHIN N2ZKJET NEEDLE KEIHIN N2ZK
-
3454731134900 JET NEEDLE KEIHIN N2ZLJET NEEDLE KEIHIN N2ZL
-
3454831034100 JET NEEDLE KEIHIN N84KJET NEEDLE KEIHIN N84K
-
3554631035000 THROTTLE VALVE 7 FOR 38 PJTHROTTLE VALVE 7 FOR 38 PJ
-
4458502096044 CONNECT. COLD START CABLE CPL. (FOR EURO)CONNECT. COLD START CABLE CPL. (FOR EURO)
-
4554631245000 STARTER PISTON CPL.STARTER PISTON CPL.
-
4654531696000 CLAMP 6 MMCLAMP 6 MM
-
4731007007101 PVC-HOSE 4X6MMPVC-HOSE 4X6MM
-
4852031137001 PVC-HOSE 3X5MMPVC-HOSE 3X5MM
-
4954531699000 PLUG M 18X1PLUG M 18X1
-
500770180230 O-RING 18,00X2,30 NBR 70O-RING 18,00X2,30 NBR 70
-
5250331029038 SLIDE STOP L=38MMSLIDE STOP L=38MM
-
5252331029000 SLIDE STOP L=36SLIDE STOP L=36
-
530770060018 O-RING 6,00X1,78O-RING 6,00X1,78
-
7154831071000 WASHER ADJUSTING SCREWWASHER ADJUSTING SCREW
-
7254831072000 O-RING ADJUSTING G SCR EWO-RING ADJUSTING G SCR EW
