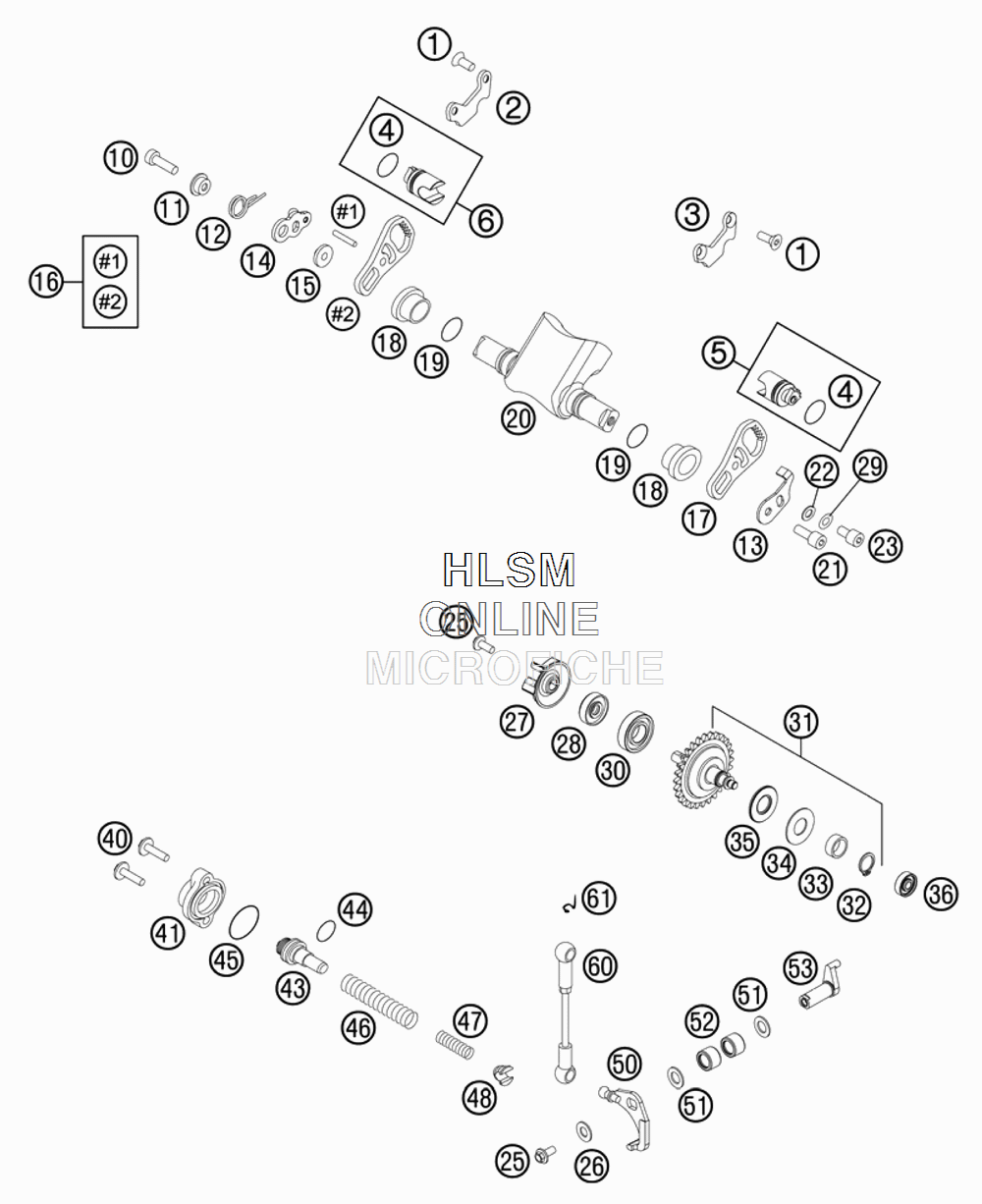

EXHAUST CONTROL для Ktm 300 XC - 2012 года выпуска
-
№АртикулНазвание
-
10019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
254837362000 RETAINING PLATE 300 R/SRETAINING PLATE 300 R/S
-
354837363000 RETAINING PLATE 300 L/SRETAINING PLATE 300 L/S
-
40770160021 O-RING 16,00X2,00 VITONO-RING 16,00X2,00 VITON
-
554837361044 CONTROL VALVE 300 L/S CPL.CONTROL VALVE 300 L/S CPL.
-
654837361144 CONTROL VALVE 300 R/S CPL.CONTROL VALVE 300 R/S CPL.
-
100912060203 AH SCREW DIN0912-M 6X20AH SCREW DIN0912-M 6X20
-
1154637067000 SPRING SLEEVESPRING SLEEVE
-
1254637066000 OVERLOAD SPRINGOVERLOAD SPRING
-
1354637085300 RETAIN.PLATE CONTROL FLAPRETAIN.PLATE CONTROL FLAP
-
1454637065000 CONTROL LEVER WITH BALL TYPECONTROL LEVER WITH BALL TYPE
-
1554637068100 BUSHING SLEEVEBUSHING SLEEVE
-
1654837364044 GEAR SEGMENT RIGHT CPL.GEAR SEGMENT RIGHT CPL.
-
1754837364050 GEAR SEGMENT 300 L/SGEAR SEGMENT 300 L/S
-
1854737019000 BEAR. SLEEVE F.CONTROL FLAPBEAR. SLEEVE F.CONTROL FLAP
-
190770150151 O-RING 15,00X1,50 VITONO-RING 15,00X1,50 VITON
-
2054837320100 CONTROL FLAPCONTROL FLAP
-
210912060163 AH SCREW DIN0912-M 6X16AH SCREW DIN0912-M 6X16
-
2254637056100 WASHER 6,5X11X2WASHER 6,5X11X2
-
230912060083 AH SCREW DIN0912-M 6X 8AH SCREW DIN0912-M 6X 8
-
250014050123 HH COLLAR SCREW M 5X12 WS=6HH COLLAR SCREW M 5X12 WS=6
-
260349000050 WASHER DIN7349-5X15X2WASHER DIN7349-5X15X2
-
2754835005000 WATER PUMP WHEELWATER PUMP WHEEL
-
280760082472 SHAFT SEAL RING 8X24X7 A DUOSHAFT SEAL RING 8X24X7 A DUO
-
290137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
300625160020 BALL BEARING 16002 C3BALL BEARING 16002 C3
-
3154837050044 CENTRIFUGAL TIMER CPL.CENTRIFUGAL TIMER CPL.
-
320471120010 CIRCLIP DIN0471-12X1CIRCLIP DIN0471-12X1
-
3354837054000 DISTANCE BUSH. CENTRIFUG.TIMERDISTANCE BUSH. CENTRIFUG.TIMER
-
3454637071010 AXIAL WASHER AS1226AXIAL WASHER AS1226
-
3554637097200 AXIAL NEEDLE BEARING AXK 1226AXIAL NEEDLE BEARING AXK 1226
-
3654637098100 BALL BEARING 626LLBC3/5KBALL BEARING 626LLBC3/5K
-
400014050203 HH COLLAR SCREW M 5X20 WS=6HH COLLAR SCREW M 5X20 WS=6
-
4154637070100 COVER LIDCOVER LID
-
4354837075000 SPRING GUIDESPRING GUIDE
-
440770021120 O-RING 12,37X2,62 NBR70O-RING 12,37X2,62 NBR70
-
450770240020 O-RING 24,00X2,00 NBR70O-RING 24,00X2,00 NBR70
-
4654837069000 ADJUST. SPRING 2003ADJUST. SPRING 2003
-
4754637072300 AUXILIARY SPRING MID., YELLOWAUXILIARY SPRING MID., YELLOW
-
4754837072000 AUXILIARY SPRING SOFT, REDAUXILIARY SPRING SOFT, RED
-
4754837072100 AUXILIARY SPRING HARD, GREENAUXILIARY SPRING HARD, GREEN
-
4854637071200 SPRING INSERTSPRING INSERT
-
5054637055244 ANGLE LEVER CPL.ANGLE LEVER CPL.
-
510988101610 SHIM WASHER DIN988 10X16X1SHIM WASHER DIN988 10X16X1
-
5254637096000 NEEDLE SLEEVE HK 1010NEEDLE SLEEVE HK 1010
-
5354837057000 CONTROL LEVERCONTROL LEVER
-
6054637095444 CONNECTING ROD CPL.CONNECTING ROD CPL.
-
6150237195055 SECURING DIN-N-71805-S -8SECURING DIN-N-71805-S -8
